PNEUMATIC SCALE - PC Mechanical Rotary Capping Machine
About this machine
About this technology
Pneumatic Scale Pump cappers are ideal for all applications using hand and finger pumps. They offer the flexibility to convert between pump capping, screw capping, press on caps, plugs and overcaps, providing greater versatility, line efficiency and cost savings. Magnetic torque units provide accurate mechanical torque control.

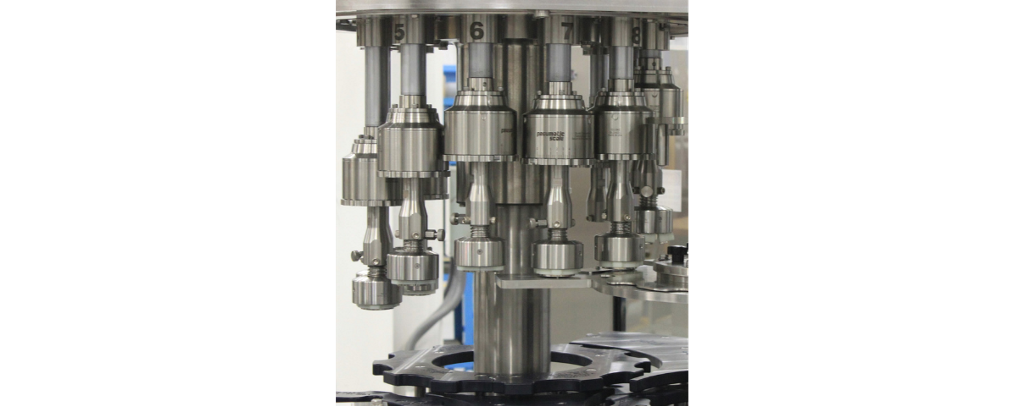

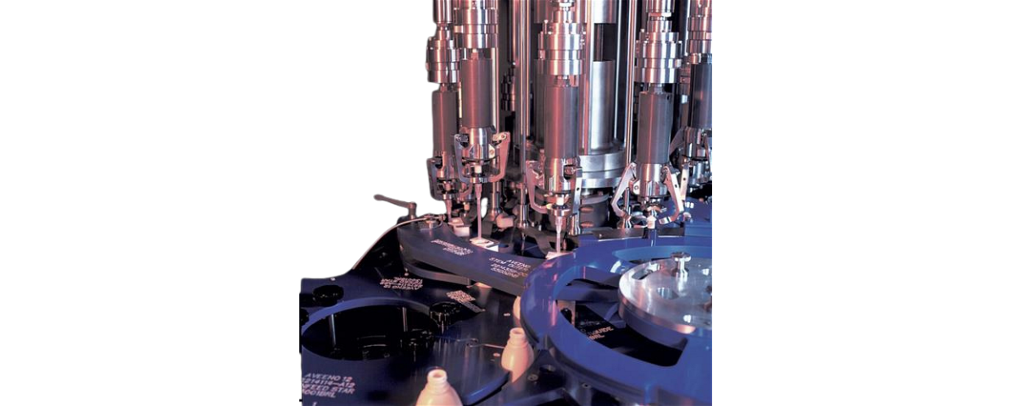

With a variety of anti-rotation mechanisms, the Pump Capper is well suited for a broad range of container styles. Customized turret pockets control non-round containers, while a gripper belt or clamp table can be added to hold round containers. Because the machine holds each container securely until capped, spilling, slipping, scuffing and crushing are eliminated. Caps are transferred to the capping chuck via a cap disk, and an optional inspection/rejection system isolates containers with missing pumps or straws, or high or incorrectly-oriented pumps.
Eliminating container slippage guarantees accurate torque control. The Pump Capper maintains positive straw control during insertion via a cam-operated stem guide. Once inserted, the Pump Capper fully tightens the pump to a pre-set torque, eliminating the need for a retorquer. The PC Capper holds each cap securely during torque application, eliminating scratching.
Contact us today to speak with one of our capping experts about the goals of your project.
Product Details
- Speeds range between 30 – 240 Containers Per Minute (CPM) depending on model and project parameters
- Suited for round and non-round containers in a range of glass, metal, plastic and fiberboard containers
- Flexibility to convert between pump capping, screw capping and plugging
- Accurate torque control with Pneumatic Scales’ Magnetic Torque Units
- Tightening the pump to a pre-set torque eliminates the need for a retorquer, for a more streamlined production process
- Mechanical stem guide system ensures proper pump cap orientation and placement
- No bottle/no pump feature
- All-mechanical, sanitary stainless steel design
- Color-coded Zepf MARK II® Change Part System enables operators to complete tool-free changeovers in less than 15 minutes
- Motorized turret height adjustment and mechanical position indicators further facilitate rapid changeovers
Technical Data
- Speeds range between 30 – 240 Containers Per Minute (CPM) depending on model and project parameters
- Range of capping heads from 4 - 20 available
- Handles straws from .08” – .375” in diameter
- Handles straws from 2” – 9.5” in length
- Magnetic torque units provide accurate torque control
- Anti-rotation measures ensure each container is securely held through the capping process
PC Capper Models Comparative Table
| Model Number | Speed (CPM) | Max. Pump Size | Straw Diam. Range | Straw Length Range | Max. Container Diam. w/ Clamps | Max Container Diam. w/ Grip belt | Capping Heads | Bottle Pitch |
| PC-450-6 | 30-120 | 43 mm | .08” - .375” | 2” – 9.5” | 5.00” | 6.88” | 6 | 9.27” |
| PC-450-8 | 40-160 | 43 mm | .08” - .375” | 2” – 9.5” | 4.00” | 6.25” | 8 | 6.95” |
| PC-600-10 | 50-200 | 43 mm | .08” - .375” | 2” – 9.5” | 4.00” | 6.79” | 10 | 7.42” |
| PC-600-12 | 60-240 | 43 mm | .08” - .375” | 2” – 9.5” | 3.38” | 5.61” | 12 | 6.18” |
Packaging Styles
Markets
Videos
Parts & Service
OEM parts and experienced Customer Service are key to maintaining the integrity and service of your equipment. We offer spare and replacement parts for all of our product lines, as well as a dedicated team of professionals who provide global support, delivered locally. If you need support, contact our team and a dedicated support professional will respond to your request.
