DAIRY PACK RM12B | HIGH OUTPUT INLINE BOTTLE FILLER
About this machine
About this technology
DAIRY PACK RM12B exists in a wider version, the RM15B, allowing different bottle configurations per stroke. All systems and technologies are common to both models and can be applied without reservation.
DAIRY PACK Bottle Filling Solutions

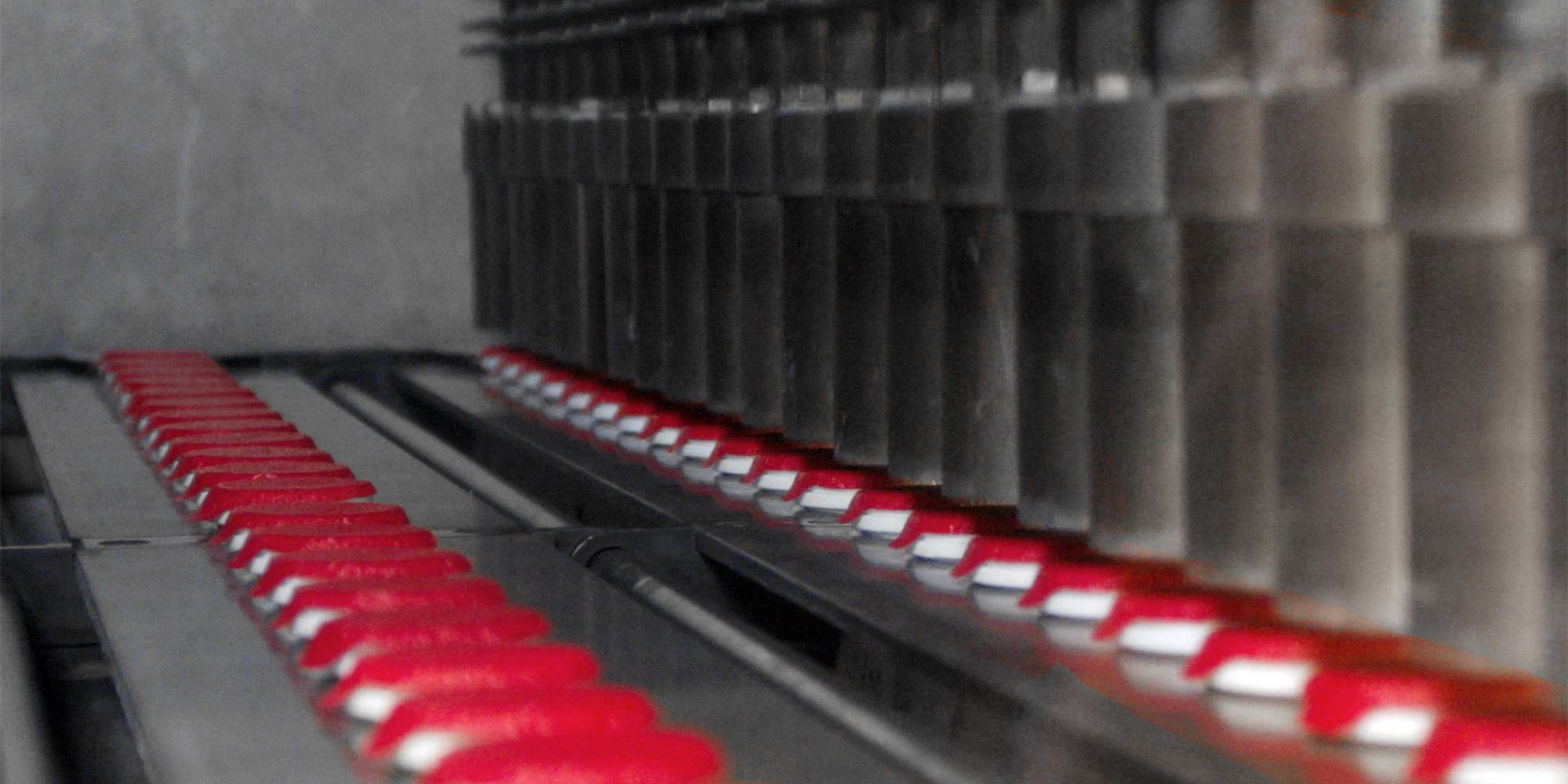

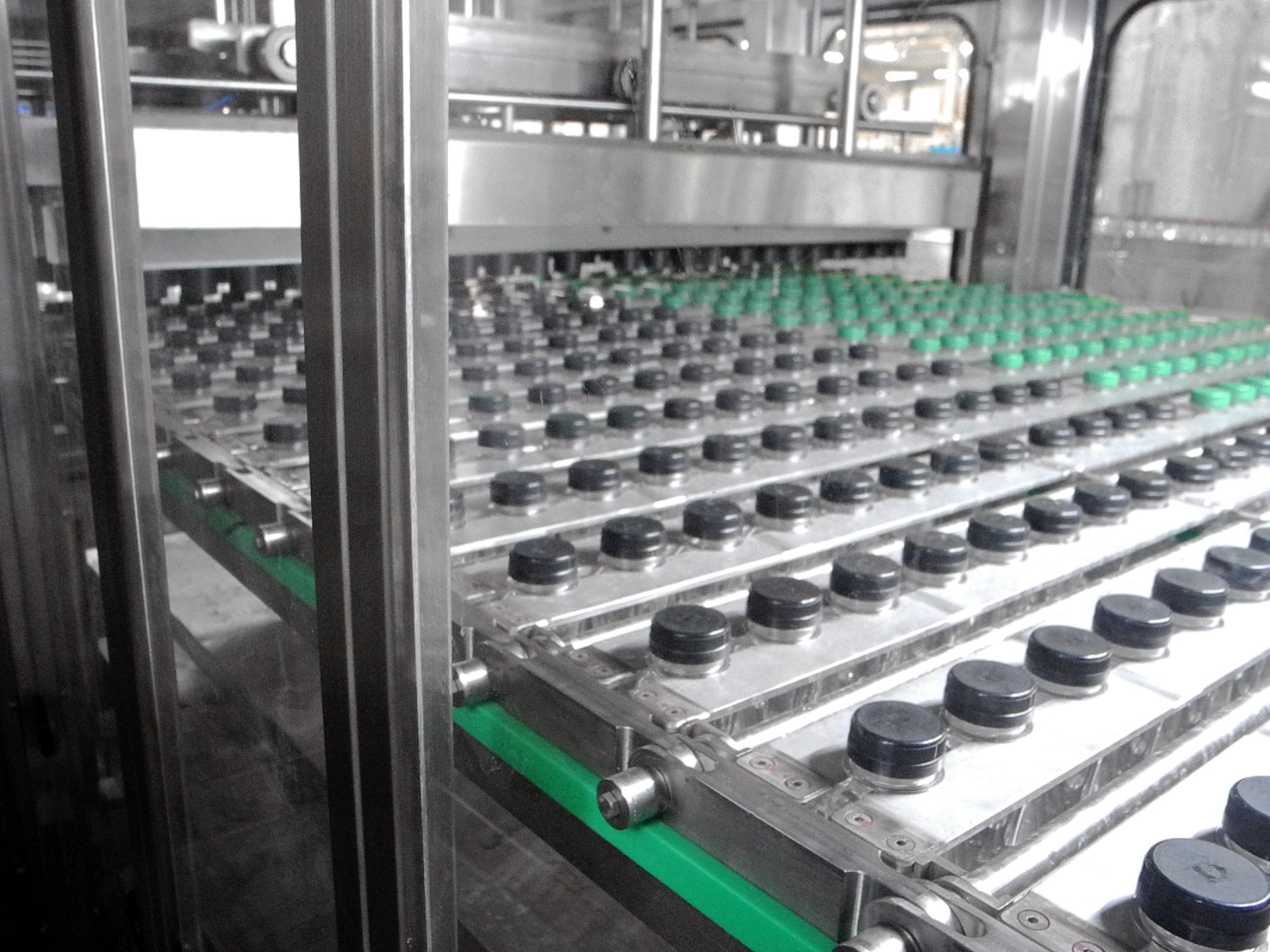

Unlike the other Dairy Pack Bottle Filler, our RM12B is built as a Cup Filler, with rows of 12 bottles advancing side by side. This bottle filling machine can handle preformed bottles and offers increased volume capacity and higher speed than the other models of the range.
Dairy Pack equipment can deliver a wide range of decontamination levels according to shelf-life needs and storage conditions. The Dairy Pack RM12B is user-friendly and effective linear bottle filler, ideal for dairy beverage lines. It benefits from Dairy Pack’s proven expertise built up over several years in filling complex products for large international groups.
The Dairy Pack filling equipment is mainly used for dairy or products requiring special attention but can be adapted to any liquid product.
Beverage Equipment for Your Recipes
Our RM12B bottle filling machine for preformed bottles is known for its extremely high filling accuracy. We can deliver a wide range of decontamination levels according to shelf-life need and storage conditions. This machine high flexibility and technical efficiency are ideal for high beverage lines.
Product Details
High Operational Efficiency
- Customizable speed up to 30 cycles per minute
- Production output up to 24,000 bottles/hour and 54,000 for the RM15B
- Filling various formats from 80 to 1000 ml
- Up to 2 different bottle neck diameters
- Materials: PET, HDPE, PP and PS
- Operations at chest height (110 cm/43.3 in)
- Customizable HMI visualization for optimized production reporting
- Machine stations can be added to fit your needs (bottle inserter, decontamination, filling stations, control stations, lid and/or cap...)
Adapted to Sensitive Products
- Hygiene level adapted to your product specifications
- Suitable for most homogeneous and pumpable products with fruit pieces
- Global commitment for hygenic, integrity and accuracy of the filled products
- Filler device outside the filling area for ultra-clean hygiene and extractible filler heads for optimized safety in CIP
- Fill testing available for customer product optimization and faster ramp-up
Compact with Easy Access & Cleaning
- Footprint (m) : 13 L x 4 W x 5 H
- High visibility on stations and tooling
- High accessibility for inspections, maintenance and cleaning operations
- Fast and efficient cleaning
- Integrated diagnostic systems with clear messages
- Comprehensive training and documentation
- Compliant with CE regulations
Technical Data
- Output: up to 24,000 bottles/hour and 54,000 for the RM15B
- Pace: up to 30 cycles/min
- Dosed Product Range: 80 – 1,000 ml
- Material: Plastic Bottles
- Compliant with CE regulations

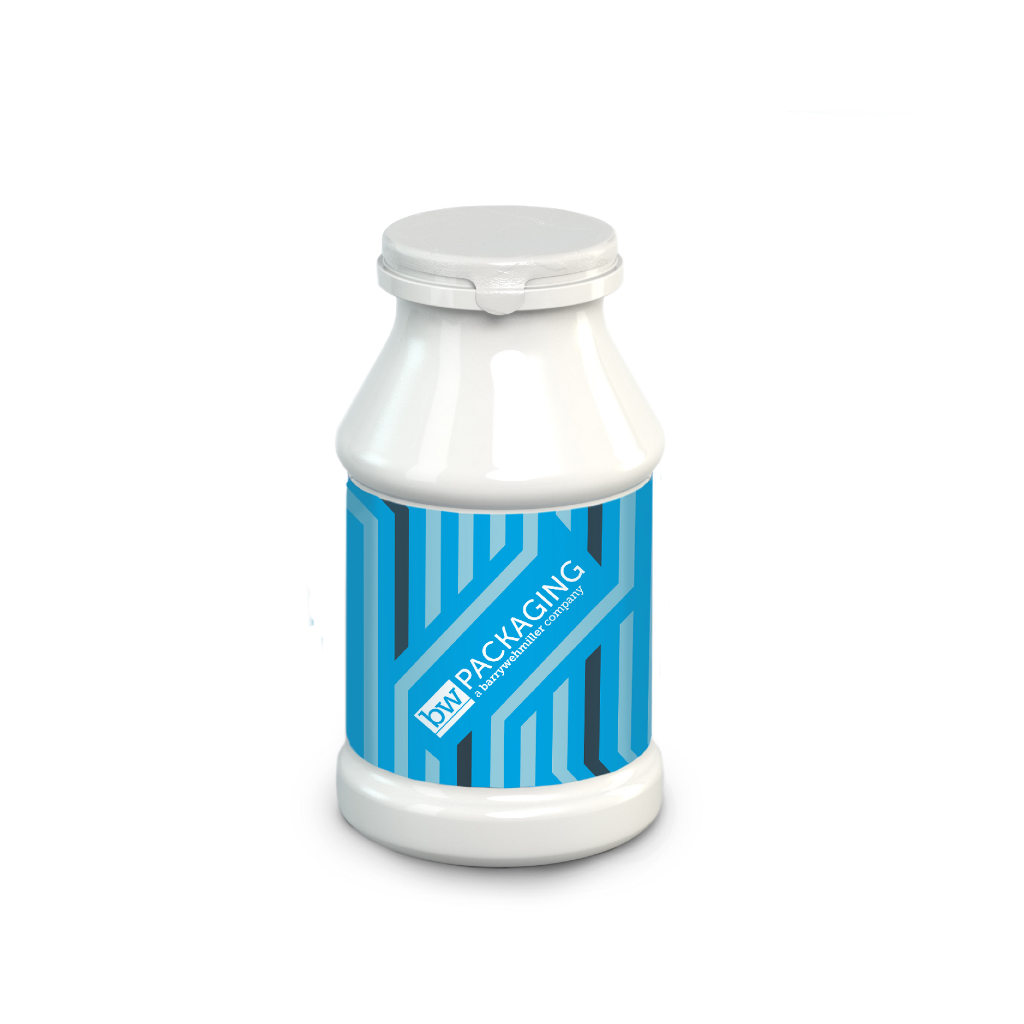

Packaging Styles

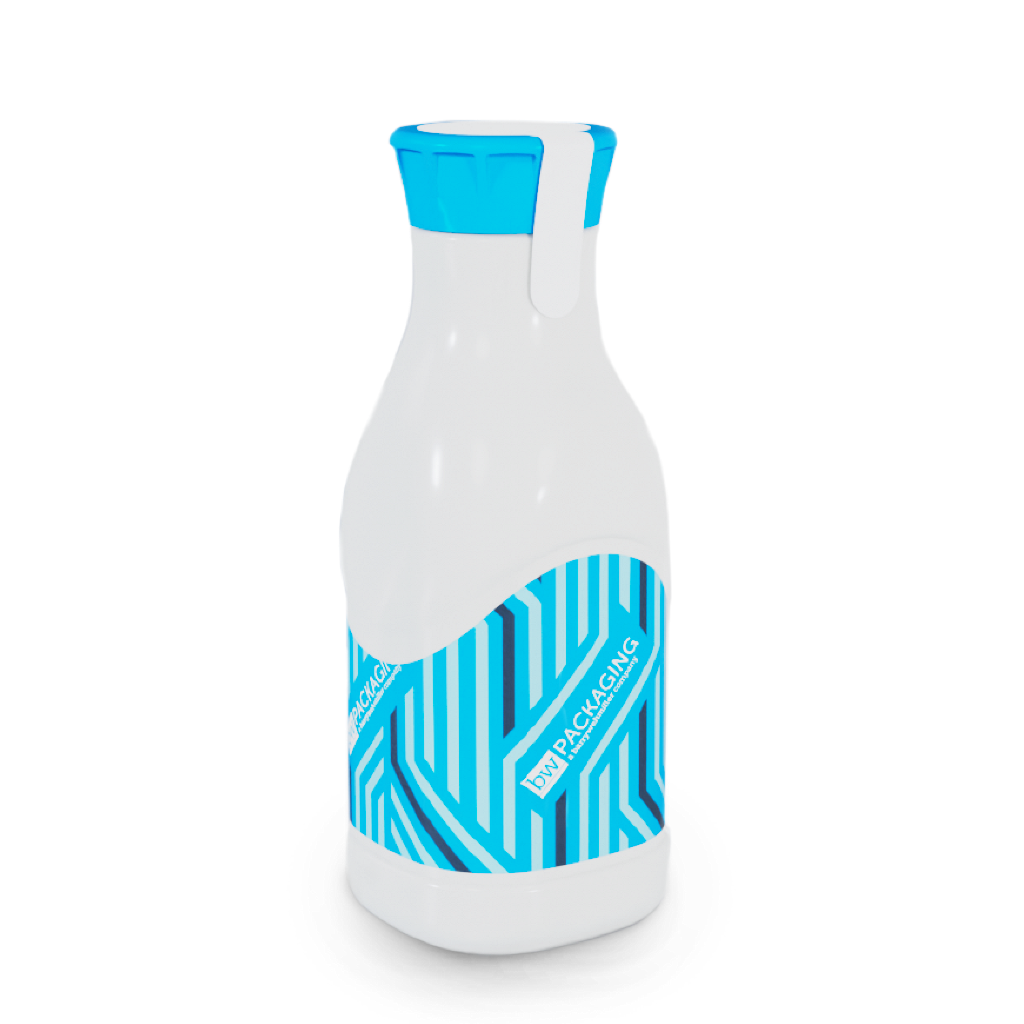

PET Bottles
Large Bottle (up to 1,000 ml)
Example:
Neck Diameter 38mm
Bottle Body 90mm
Height 250mm
PS Bottles
Bottle (up to 1,000 ml)
Example:
Neck Diameter 38mm
Bottle Body 60mm
Height 180mm
PP Bottles
Bottle (up to 1,000 ml)
Example:
Neck Diameter 28mm
Bottle Body 55mm
Height 120mm
HDPE Bottles
Bottle (up to 1,000 ml)
Example:
Neck Diameter 28mm
Bottle Body 40mm
Height 75mm
Markets
Videos
Parts & Service
OEM parts and experienced Customer Service are key to maintaining the integrity and service of your equipment. We offer spare and replacement parts for all of our product lines, as well as a dedicated team of professionals who provide global support, delivered locally. If you need support, contact our team and a dedicated support professional will respond to your request.
-
