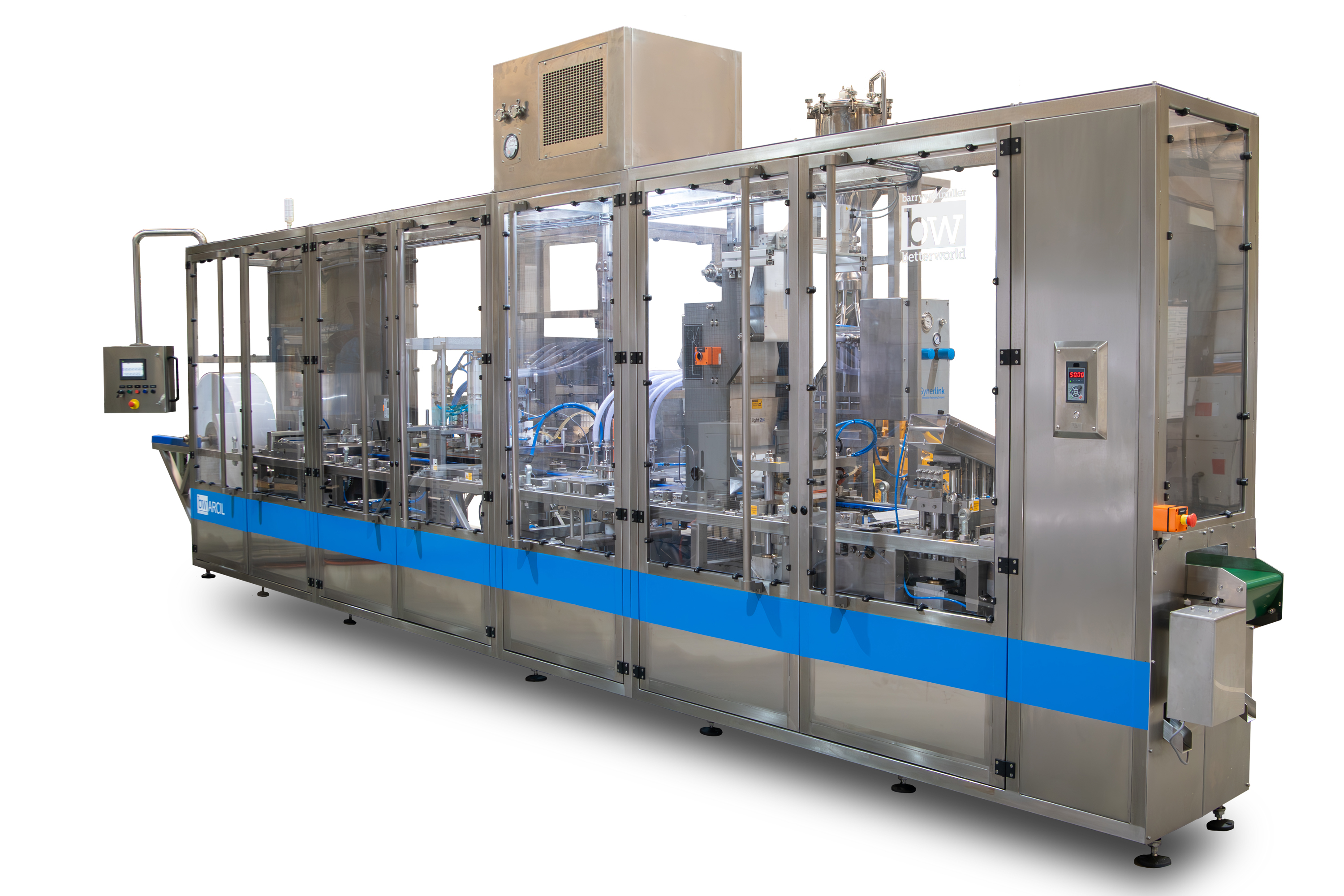

ARCIL DN250 | COST-EFFECTIVE THERMOFORMING MACHINE FOR LABELED CUPS
About this machine
About this technology

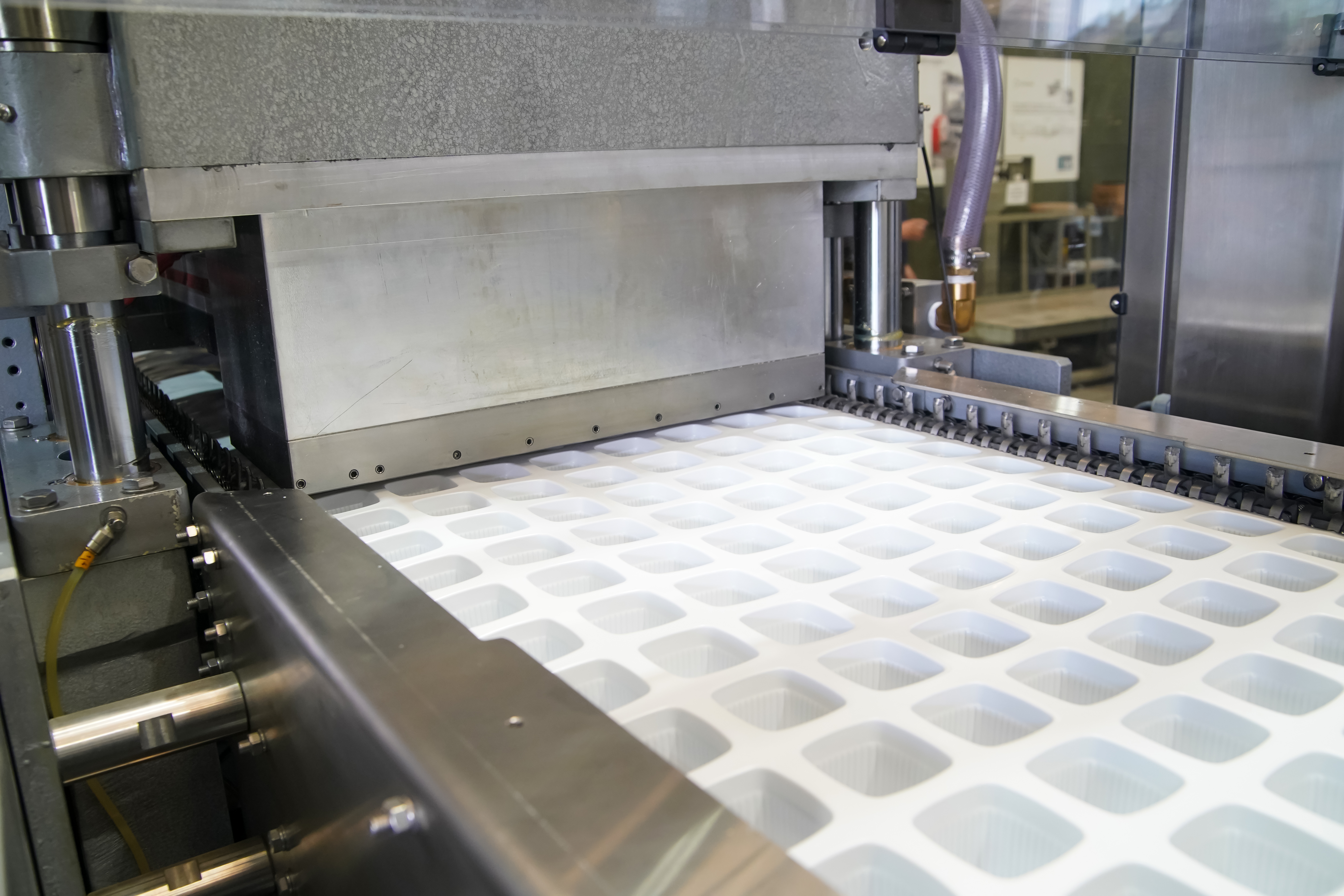

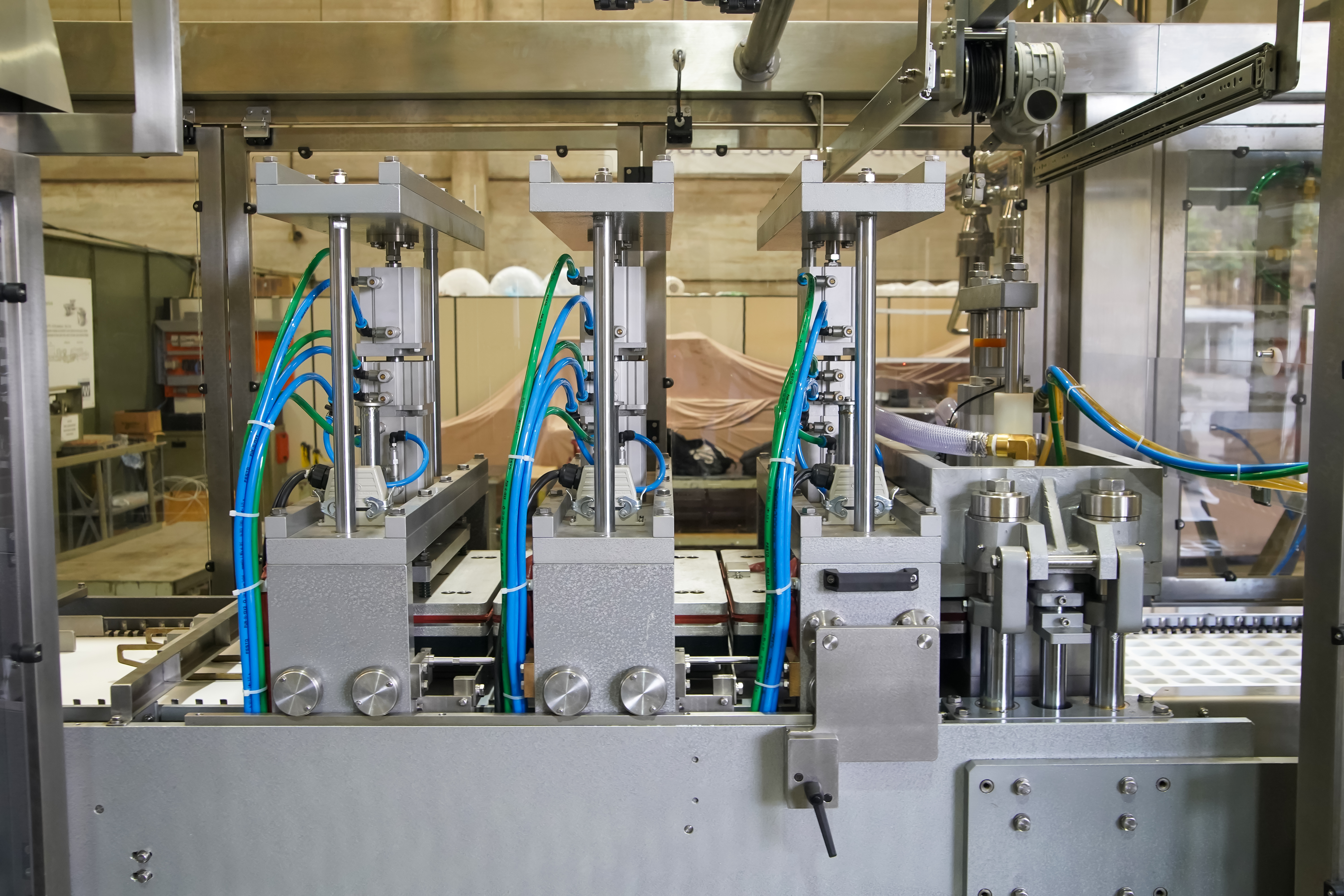

The ARCIL DN250 is renowned for its compact footprint and high cost-efficiency. Designed for ground-level operations, our equipment utilizes plastic thermoforming reels to supply the thermoforming machine, shaping the material into desired products. Operating at speeds ranging from 8,640 to 24,000 cups per hour, cups are filled and sealed in ultra-clean conditions.
ARCIL Form-Fill-Seal Experience
Product Details
Engineered for Performance
- Customizable speed up to 18 cycles with decor per minute
- Production output up to 8,640 cups/hour and 18,000 for non labeled cups
- Footprint (m) : 8.2L x 2.5W x 2.7H
- Filling various formats from 45 to 240g
- Materials: PS or PET

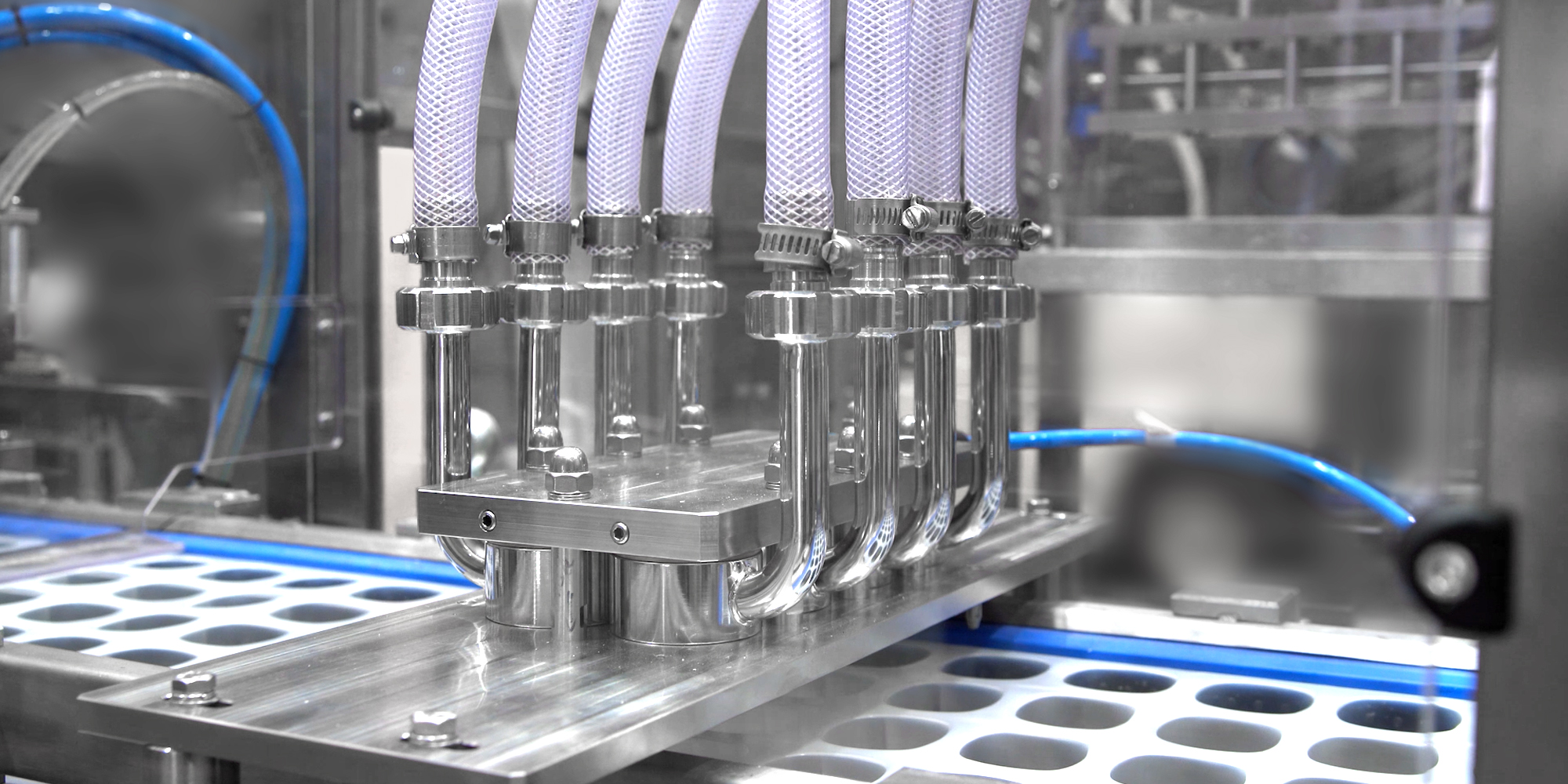

Efficient Dosing
- Up to 2 different fillers for multi-layer products
- Suitable for most homogeneous and pumpable products with fruit pieces
- BWFC offer a global commitment for hygenic, integrity and accuracy of the filled products.
- Fill testing available for customer product optimization and faster ramp-up
Easy Cleaning and Accessibility
- Fast and efficient cleaning
- High visibility on stations and tooling
- High accessibility for inspections, maintenance and cleaning operations
- Compliant with CE regulations
- Customizable HMI visualization for optimized production reporting
- Operations at chest height (110 cm/43.3 in)
Technical Data
- Machine Dimensions: 8200mm x 2500mm x 2700mm
- Output: 8,640 to 24,000 cups/hour
- Pace: 18 to 25 cycles/min
- Dosed Product Range: 45 to 125g
- Materials: PS, PET
- Decor Availability: Yes
Packaging Styles
Trays
Multi-Pack x1 x2 x4
Trimming Dimensions 94 x 94mm
Height 10mm to 45mm
Small Portion Cups
Multi-Pack x1 x2 x4 x8
Trimming Dimensions 48 x 48mm
Height 10mm to 55mm
Mini Portions
Multi-Pack x1 x2 x4 x6
Trimming Dimensions 40 x 52mm
Height 10mm to 40mm
Cups without Label
Multi-Pack x1 x2 x6
Trimming Dimensions 63 x 63mm
Height 10mm to 60mm
Markets
Videos
Parts & Service
OEM parts and experienced Customer Service are key to maintaining the integrity and service of your equipment. We offer spare and replacement parts for all of our product lines, as well as a dedicated team of professionals who provide global support, delivered locally. If you need support, contact our team and a dedicated support professional will respond to your request.
-
