DAIRY PACK DP40C | HIGH OPERATIONAL EFFICIENCY FILL-SEAL
About this machine
About this technology

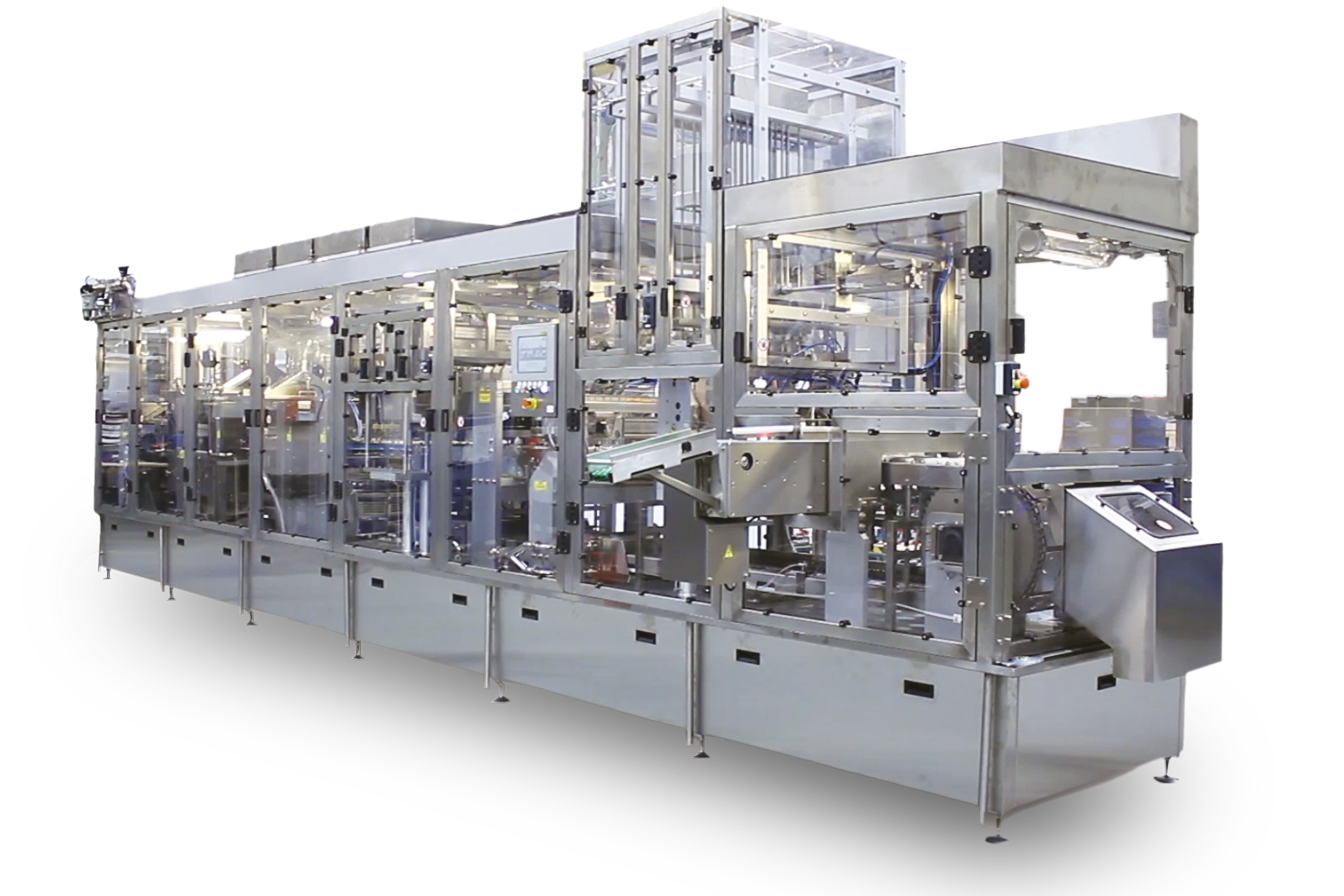

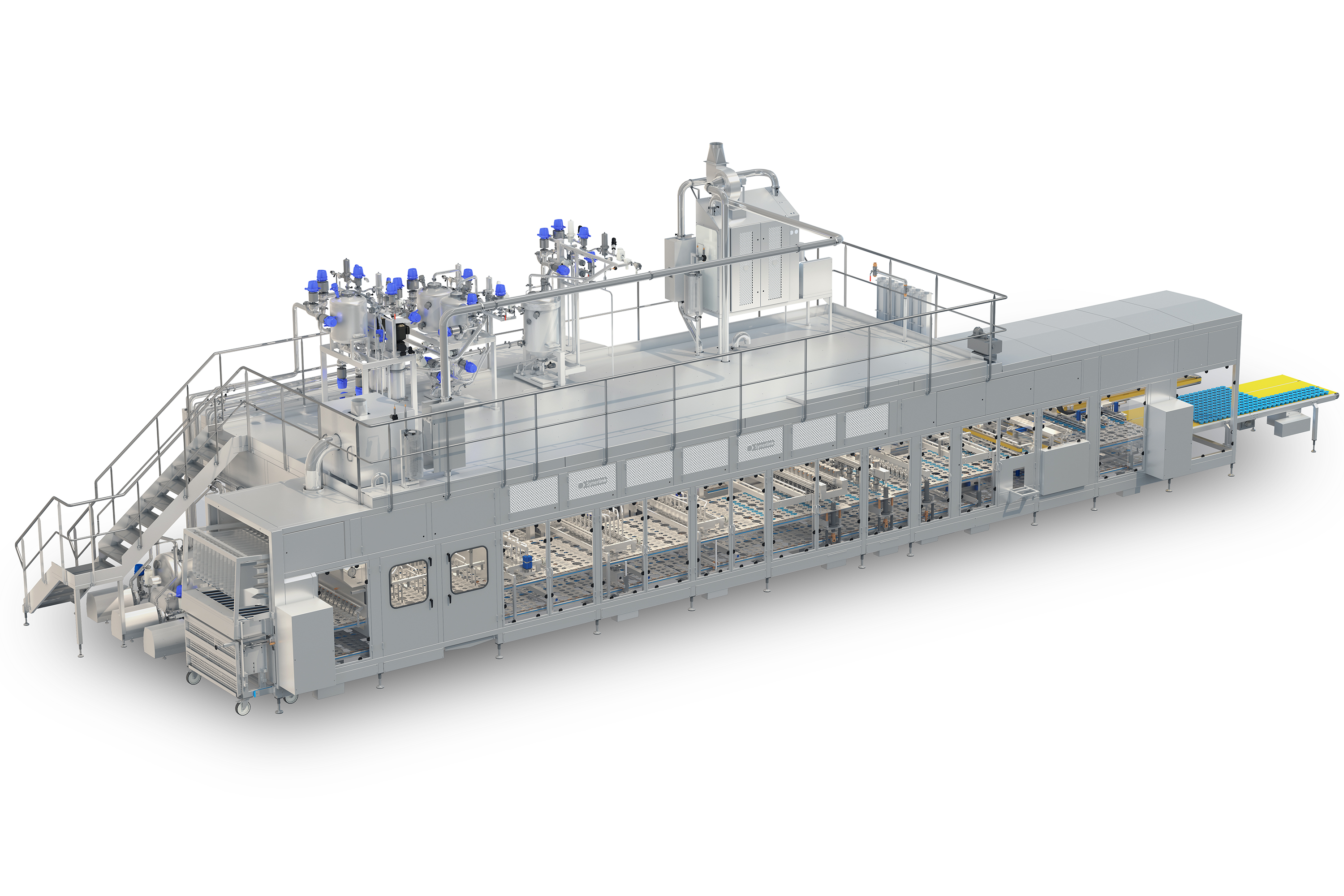

The DP40C filling machine is renowned for its high operational efficiency and exceptional product handling. Designed with user-friendliness and customizable specifications in mind, it is ideal for small to medium production sites, handling up to 9,000 cups per hour. For higher capacity needs, the DP60C variant doubles the output to 18,000 cups per hour.
Product Details
High Operational Efficiency
- Production speed up to 9,000 cups/hour (18,000 for DP60C version)
- Customizable speed up to 25 cycles per minute
- Footprint (m): 3.5W x 3H x 8.5L (12.5L for DP60C)
- Filling various formats from 90 to 500g
- Materials: Plastic, Paper and Aluminum
Specification Driven Design

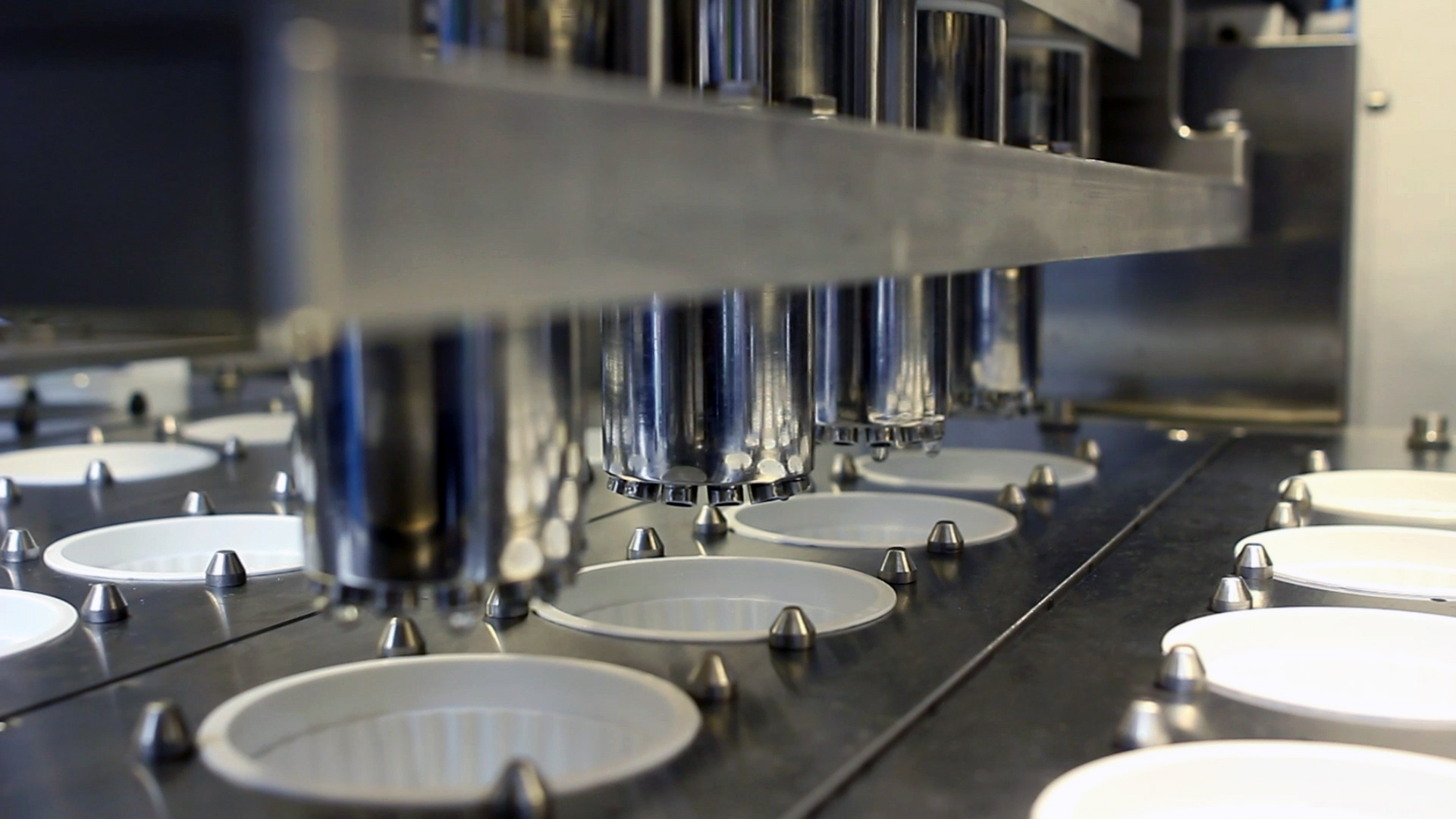

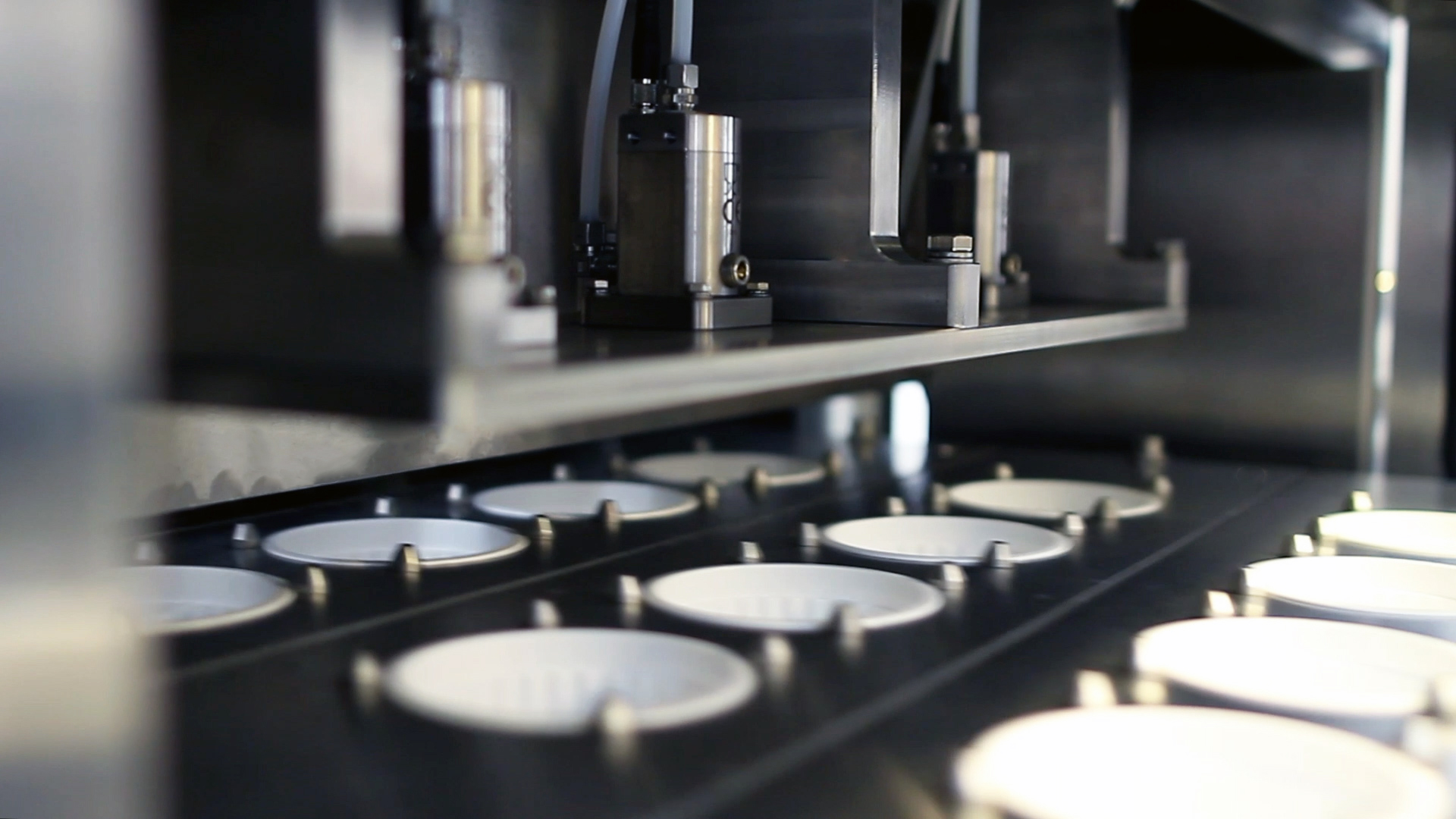

- Up to 3 different fillers for multi-layer products

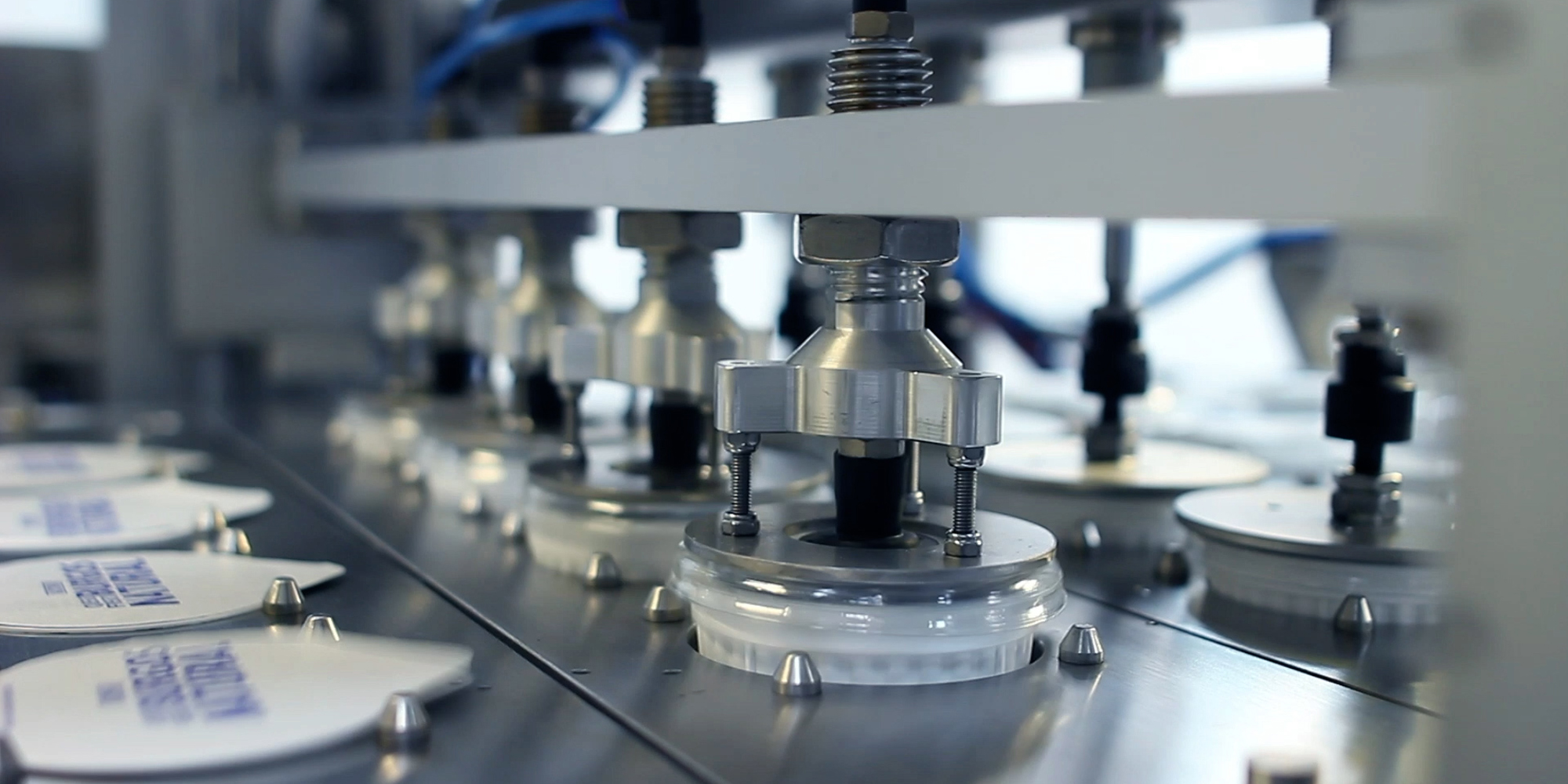

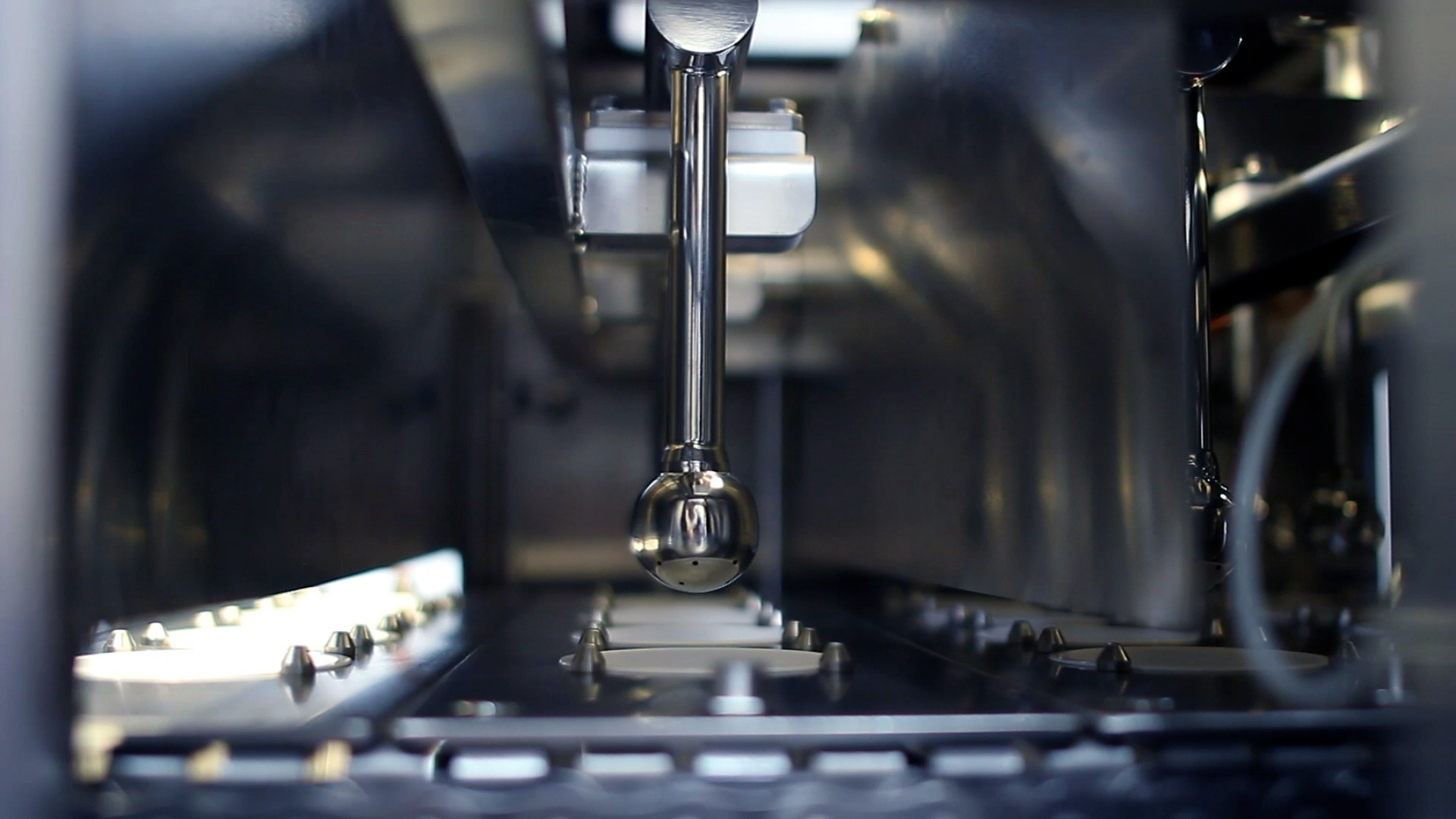

- Machine stations can be added to fit your needs (optional cup inserter, decontamination, filling stations, control stations, lid or overcap, topper...)
- Conceived for fast and efficient cleaning
- High accessibility for inspections, maintenance and cleaning operations
- Customizable HMI visualization for optimized production reporting
Gentle Product Handling
- Suitable for most homogeneous and pumpable products with fruit pieces
- Synerlink offer a global commitment for hygienic, integrity and accuracy of the filled products
- Filler device outside the filling area for ultra-clean hygiene and extractible filler heads for optimized safety in CIP (optional)
- Fill test available for product optimization and vertical startup
Technical Data
- Output: up to 9,000 cups per hour (18,000 for DP60C version)
- Pace: up to 25 cycles/min
- Dosed Product Range: 90 - 500 ml
- Material: Plastic, Paper and Aluminum
- Compliant with CE regulations
- Volume: 1,000 to 2,500 ml
- Speed: 1,500 to 4,100 units/hour
- Platform: 150 to 270 mm
- Height: up to 180 mm
Packaging Styles

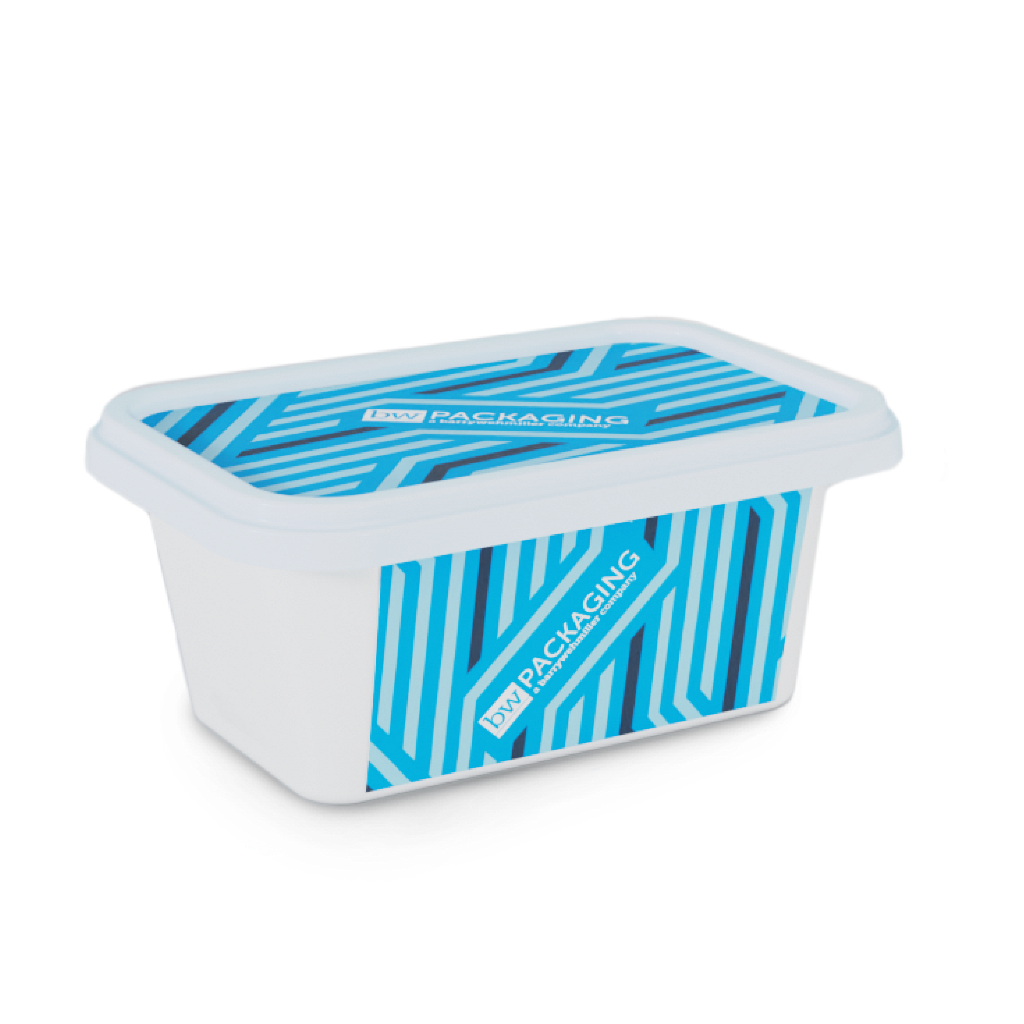

Rectangular Cups
1x4 to 1x6 (2x6 in DP60C version)
Cup Platform 55 to 95mm
Cup Height up to 120mm
Cup Volume 90 to 500g

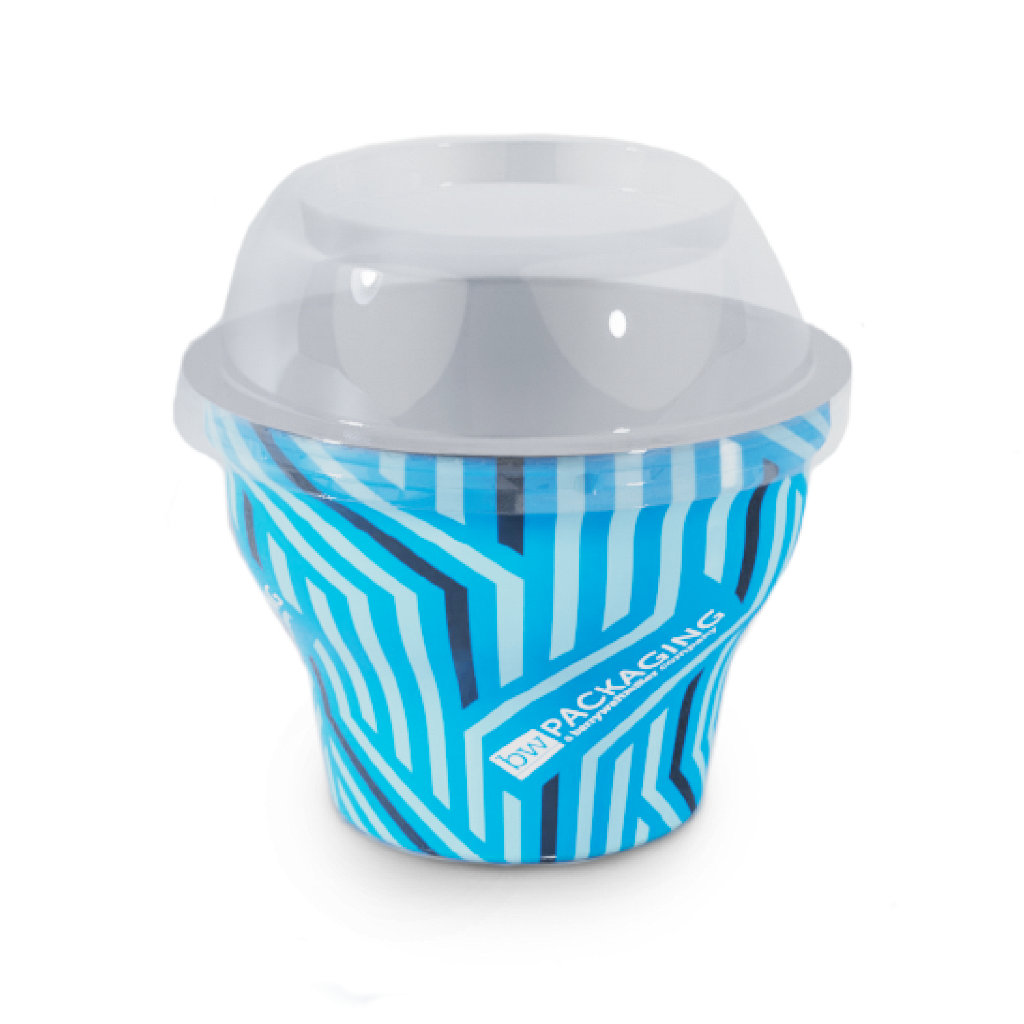

Cups with Toppers
1x4 to 1x6 (2x6 in DP60C version)
Cup Platform 55 to 95mm
Cup Height up to 120mm
Cup Volume 90 to 500g

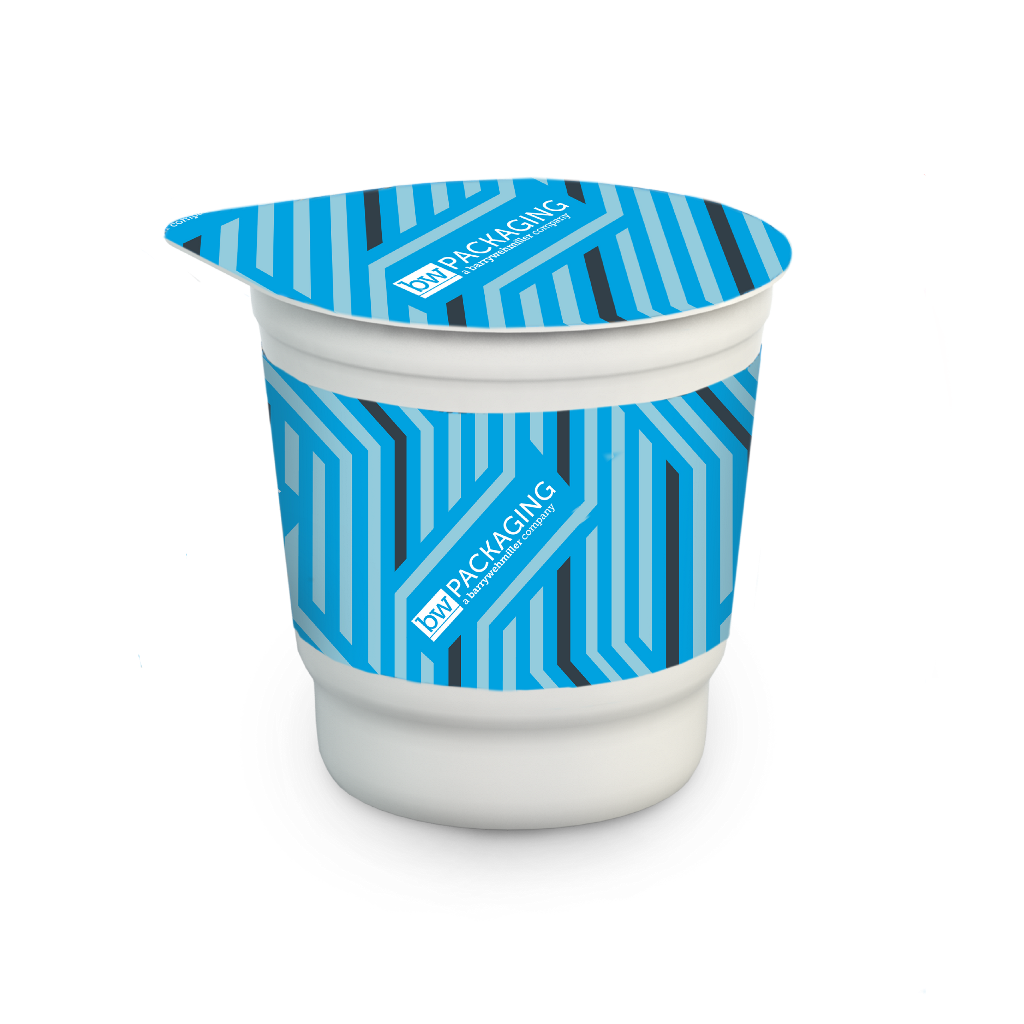

Cups with Label
1x4 to 1x6 (2x6 in DP60C version)
Cup Platform 55 to 95mm
Cup Height up to 120mm
Cup Volume 90 to 500g

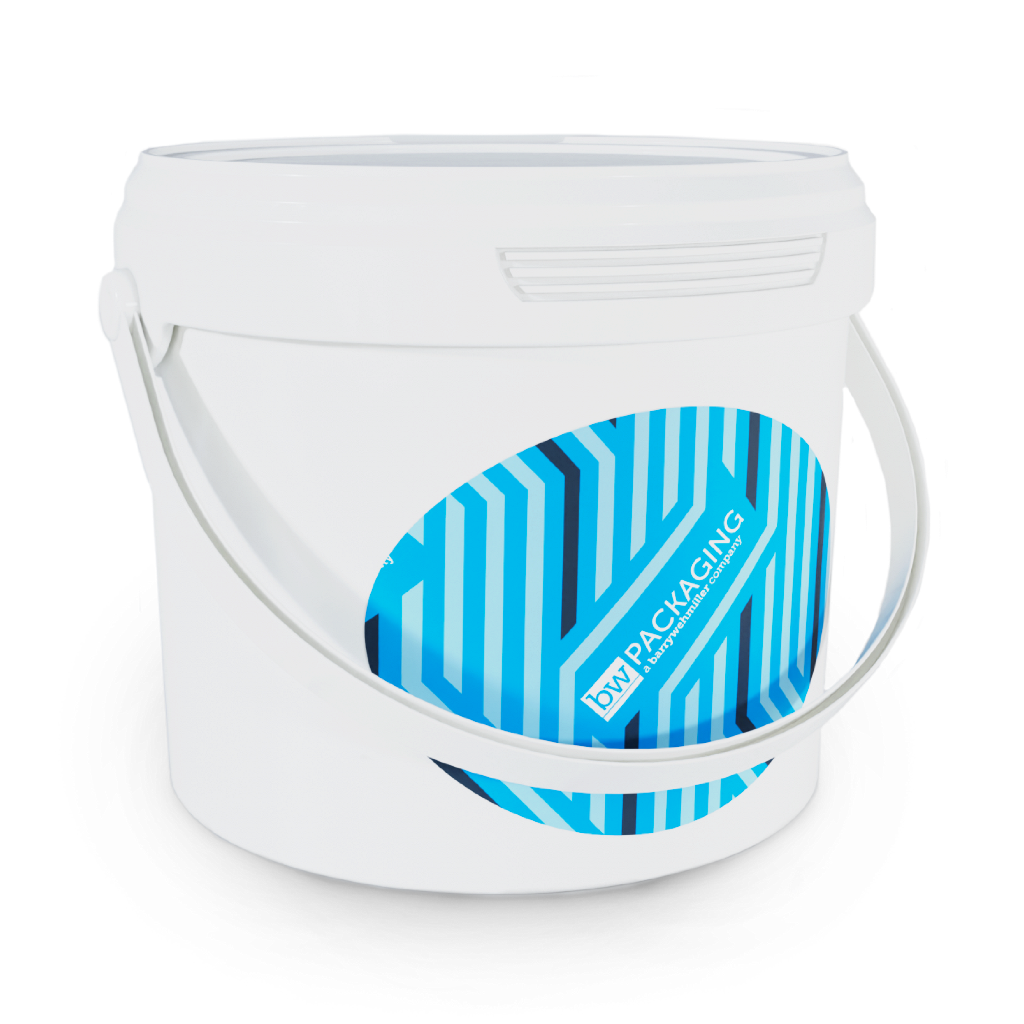

Buckets with Handle
1x1, 1x2 or 1x3
Cup Platform 150 to 270mm
Cup Height up to 180mm
Cup Volume 1,000 to 2,500g
Markets
Videos
Parts & Service
OEM parts and experienced Customer Service are key to maintaining the integrity and service of your equipment. We offer spare and replacement parts for all of our product lines, as well as a dedicated team of professionals who provide global support, delivered locally. If you need support, contact our team and a dedicated support professional will respond to your request.
-
