ARCIL DP300 | MEDIUM OUTPUT FORM-FILL-SEAL
About this machine
About this technology
ARCIL DP300 is renowned for its high efficiency and precision in cup thermoforming. Its compact design and exceptional cost efficiency makes the ARCIL DP300 an ideal solution for premium dairy products. Its performance and technical qualities make it the perfect fit for medium-scale production lines.

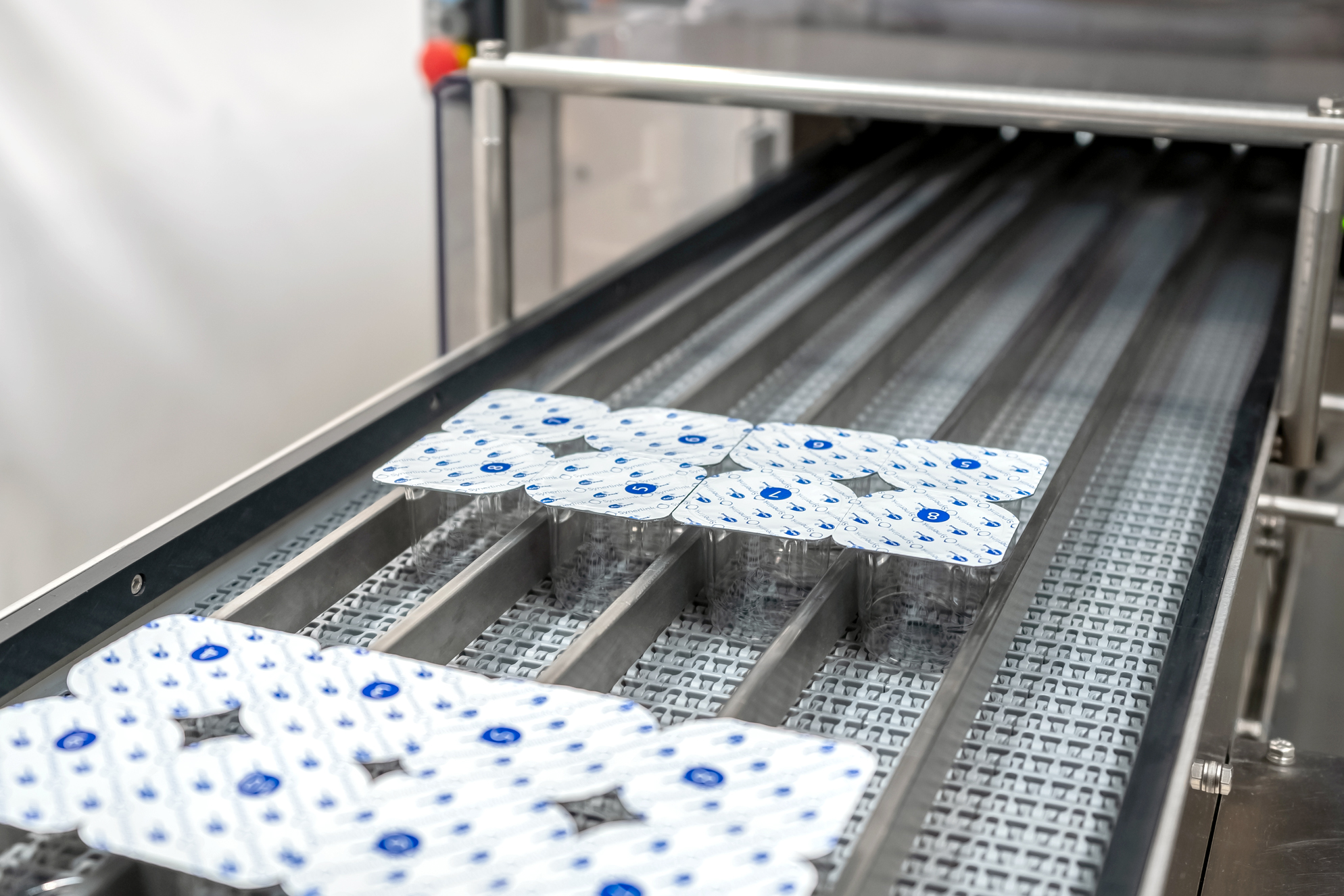

With all operations at chest level, our equipment is easy to use, and your operators will love it! With a speed of up to 21,600 cups/hour and 28,800 cups/hour for the DP500 version, cups are filled and sealed in ultra-clean conditions. The DP300 and its sister the DP500 can handle various materials (PS, PET, PLA, PP, multilayer) and deliver wide range of conical and straight cups with or without label.
ARCIL DP500 is a wider version of the DP300, allowing to increase the number of cups per stroke. All systems and technologies are common to both models and can be applied without reservation.
Product Details
Engineered for Performance
- Customizable speed up to 33 cycles per minute
- Production output up to 21,600 cups/hour (28,800 in DP500 configuration)
- Different formats: 1x4, 1x5, 1x6, 2x3, 2x4, 2x6, 2x8

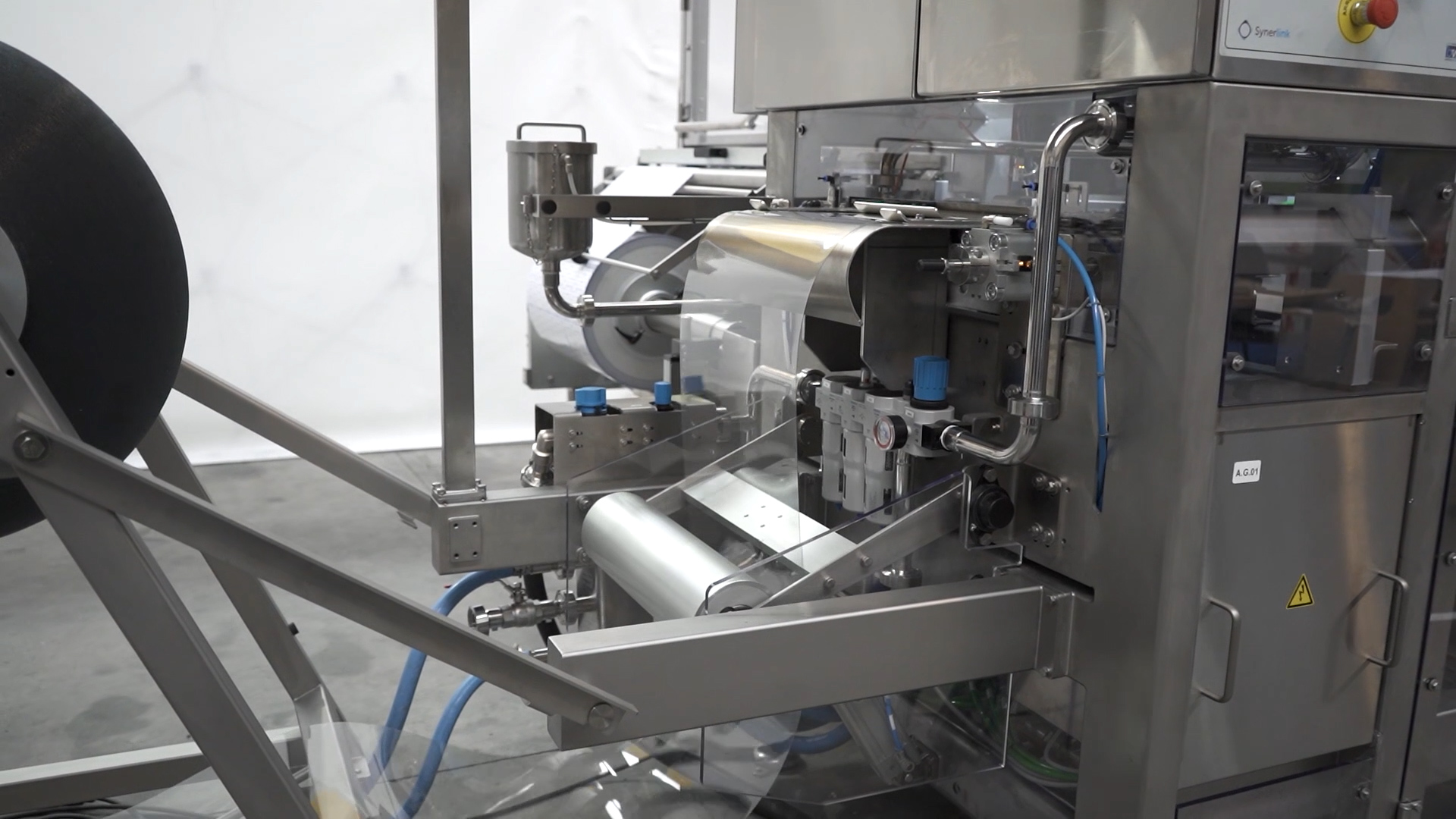

- Running different plastics (PET, PLA, PS, PP and multilayer)

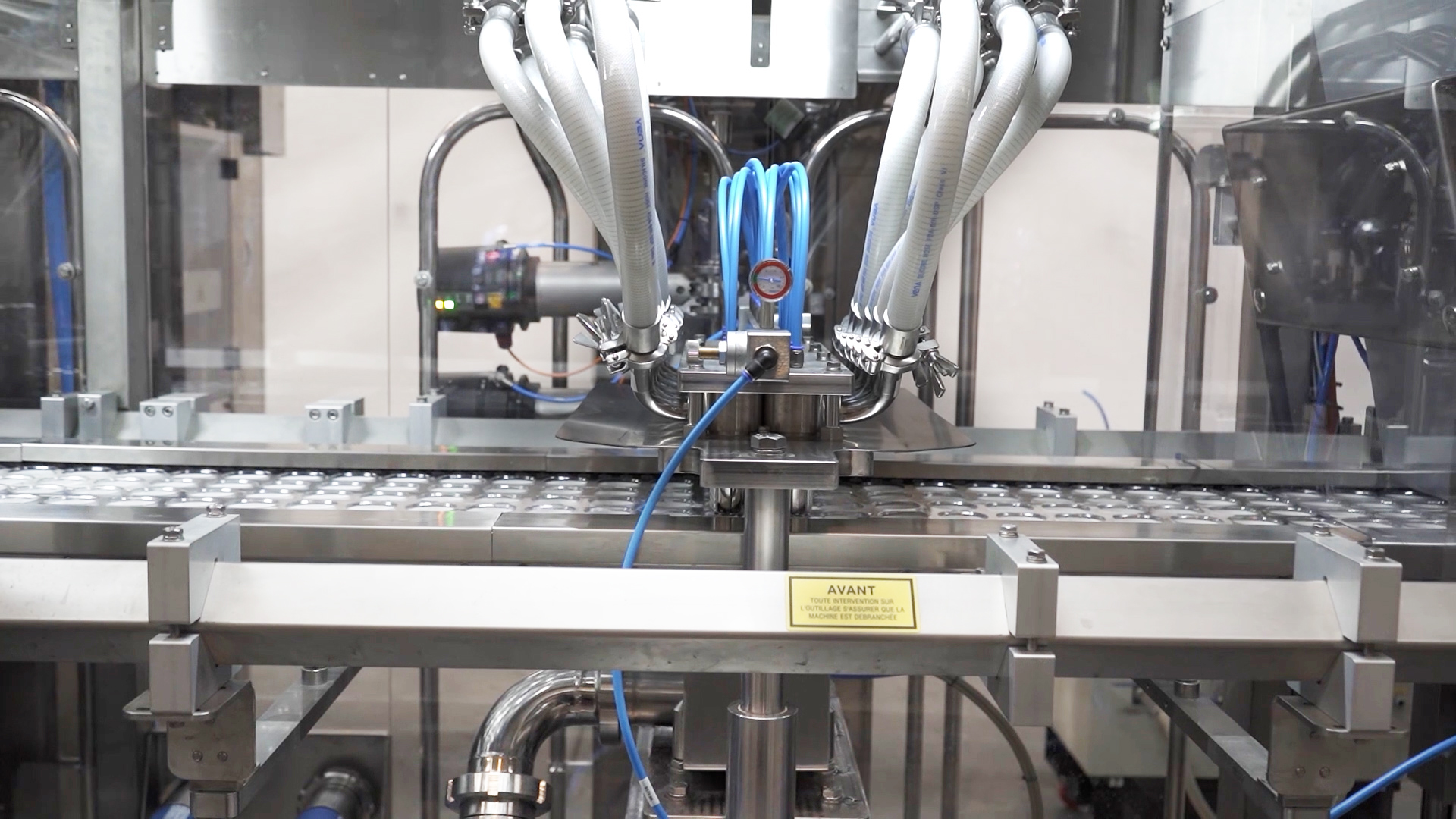

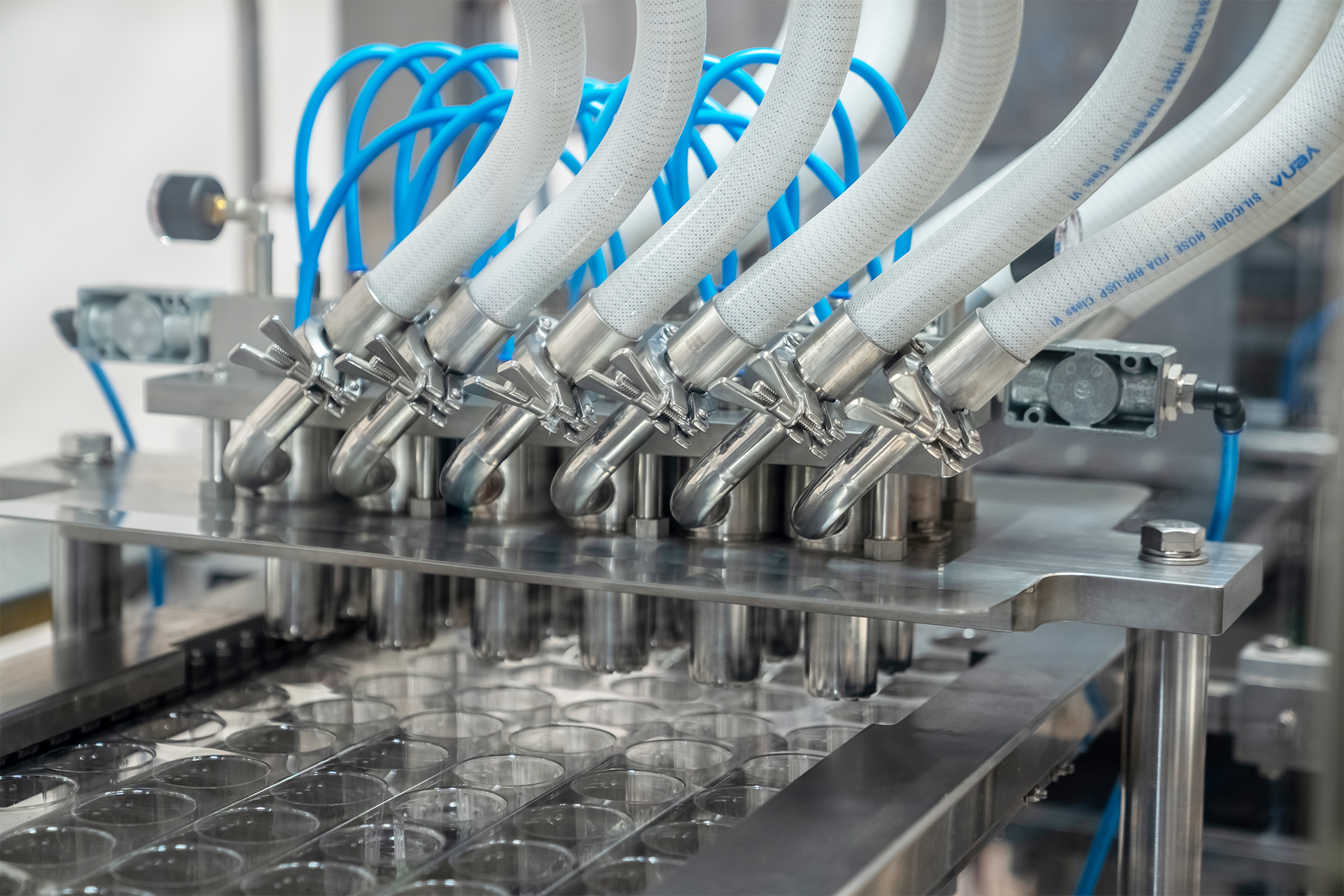

High Accuracy Dosing
- Up to 3 different fillers for multi-layer products
- Suitable for most homogeneous and pumpable products with fruit pieces
- Synerlink offer a global commitment for hygenic, integrity and accuracy of the filled products.
- Filler device outside the filling area for ultra-clean hygiene (optionnal)
- Fill testing available for customer product optimization and faster ramp-up Customizable

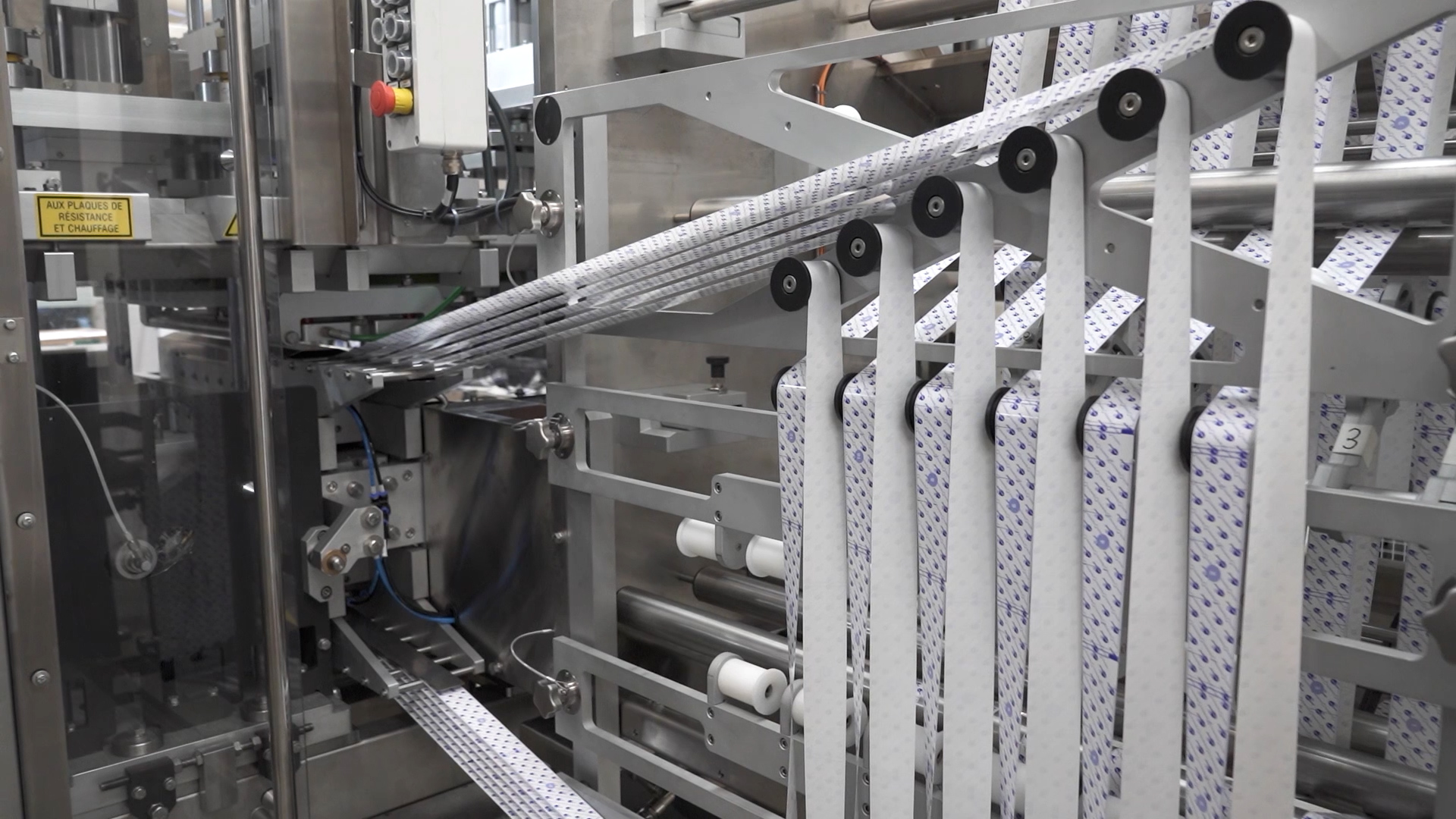

Labeling

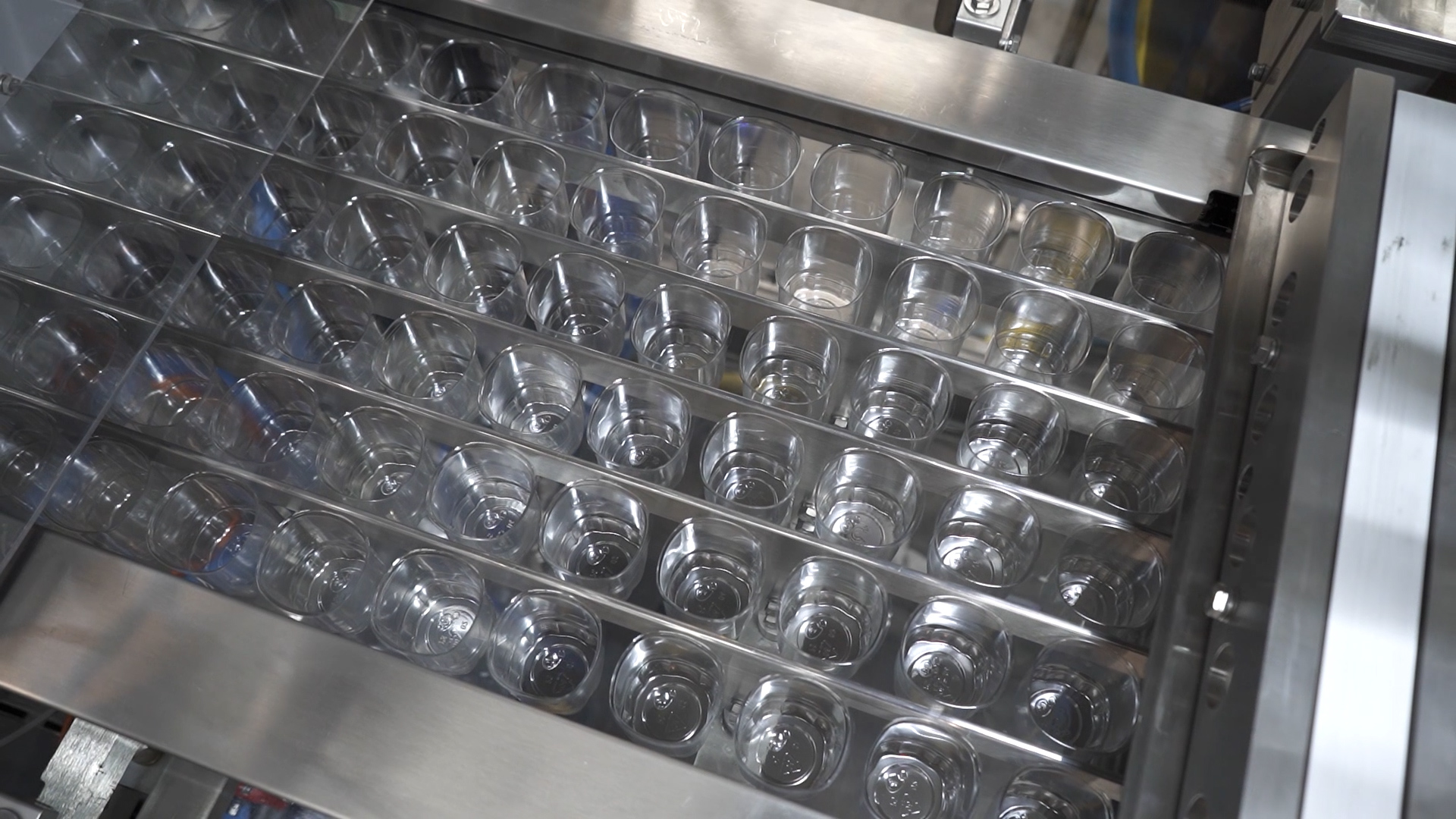

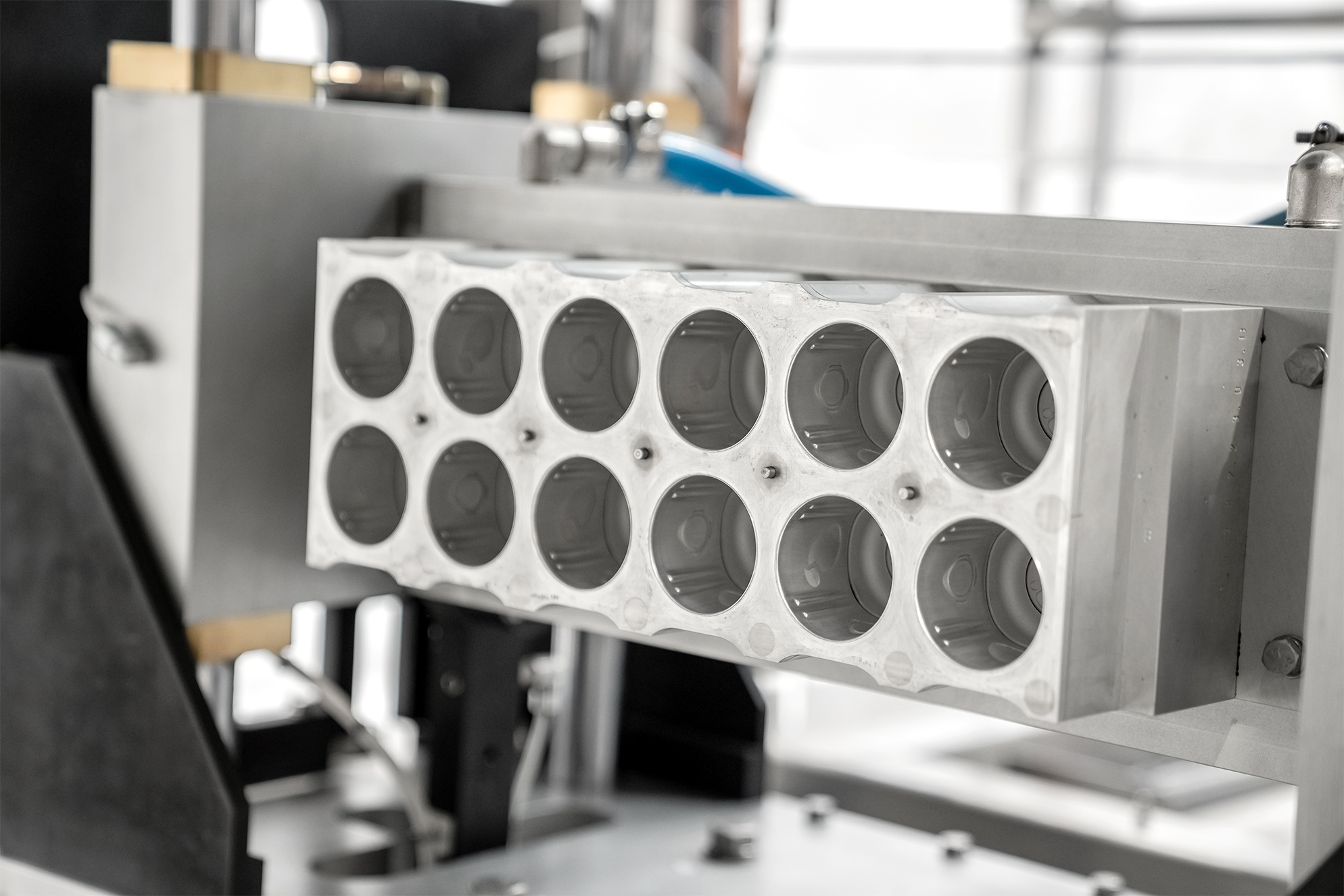

- Cup thermoforming with or without label: straight or complex cup shapes
- In mold labeling with single face (rectangle or stamped) or multi-sided (L or U shape, Butterfly)
- Continuous production during reel changeover and splicing
- Fast reel changeover and label splicing
Augmented Ergonomics for Consumables
- Operations at chest height (110 cm/43.3 in)
- Automatic splicing while machine is running (optional)
- Format changeovers in 15 minutes Designed for Easy Cleaning and Accessibility
- Designed with a strong focus on hygiene and cleanability
Fast and Efficient Cleaning
- High visibility on stations and tooling

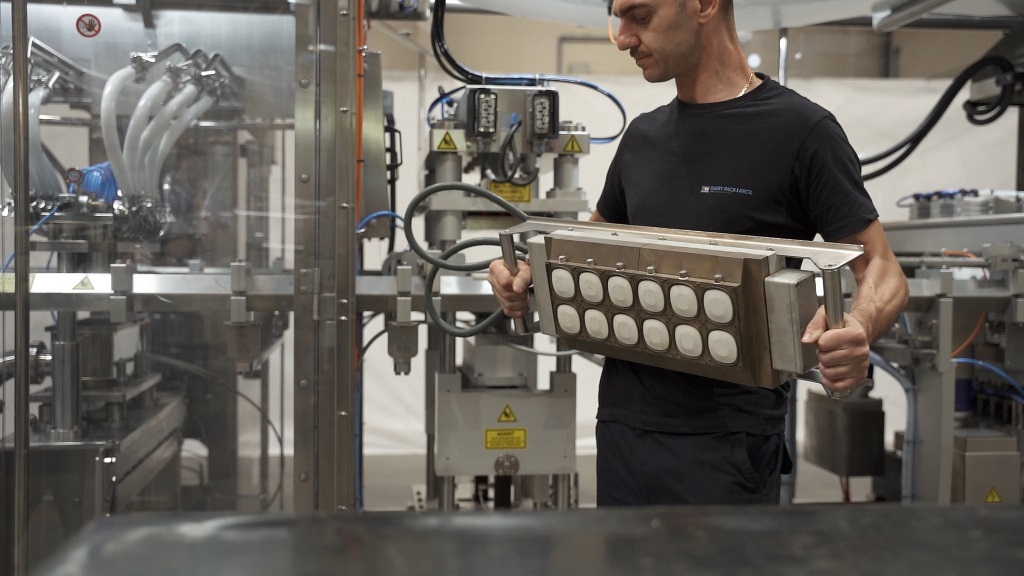

- High accessibility for inspections, maintenance and cleaning operations
- Customizable HMI visualization for optimized production reporting
Technical Data
- Output: up to 21,600 cups/hour (28,800 for the DP500)
- Pace: up to 33 cycles/min
- Dosed Product Range: 25-1,000 ml
- Material: PS, PET, PP, PLA or Multilayer
- Decor: With or without straight or complex label
Packaging Styles
Twincups without Label
Multi-Pack x1 x2
Trimming Dimensions 110 x 96mm
Max Height 60mm

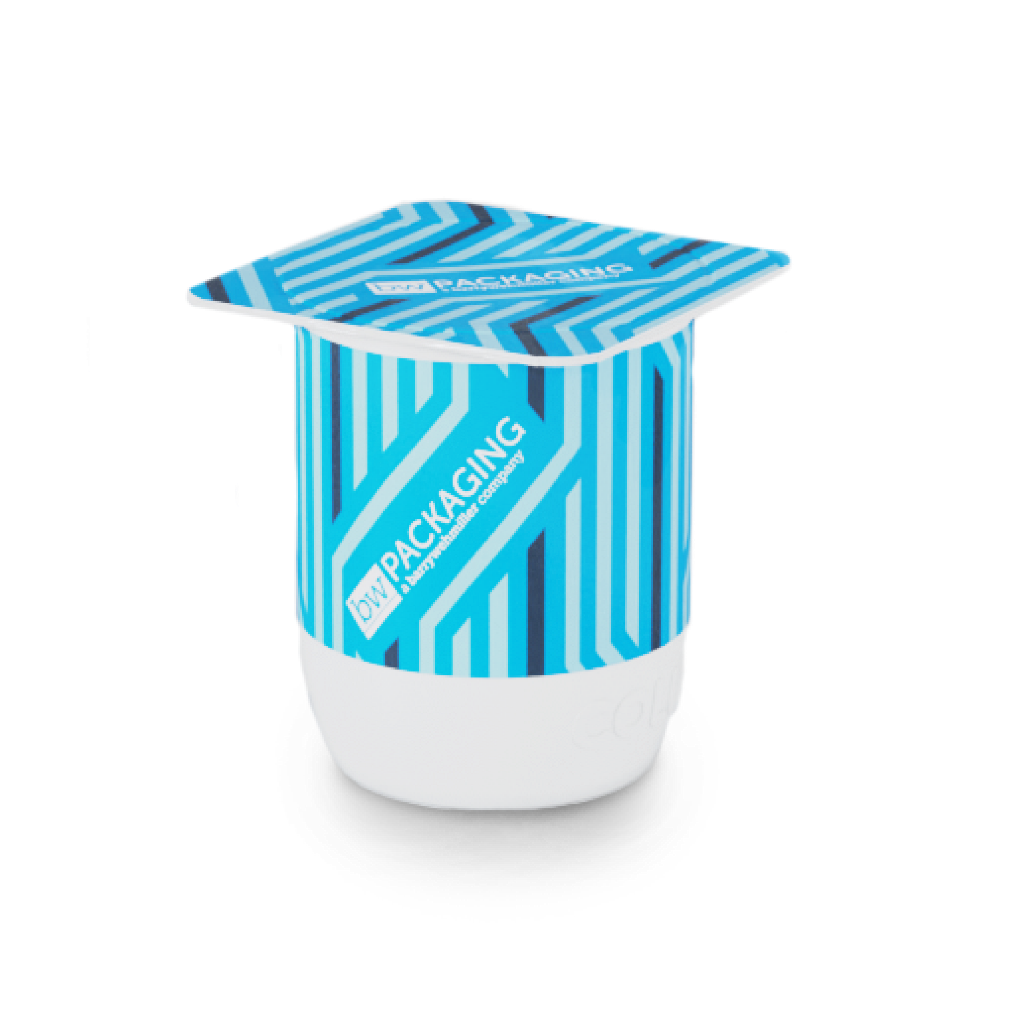

Cups with Label
Multi-Pack x1 x2 x4 x6
Trimming Dimensions 63 x 63mm
Max Height 100mm
Large Cups
Multi-Pack x1 x2 x4 x6
Trimming Dimensions 63 x 63mm
Max Height 100mm

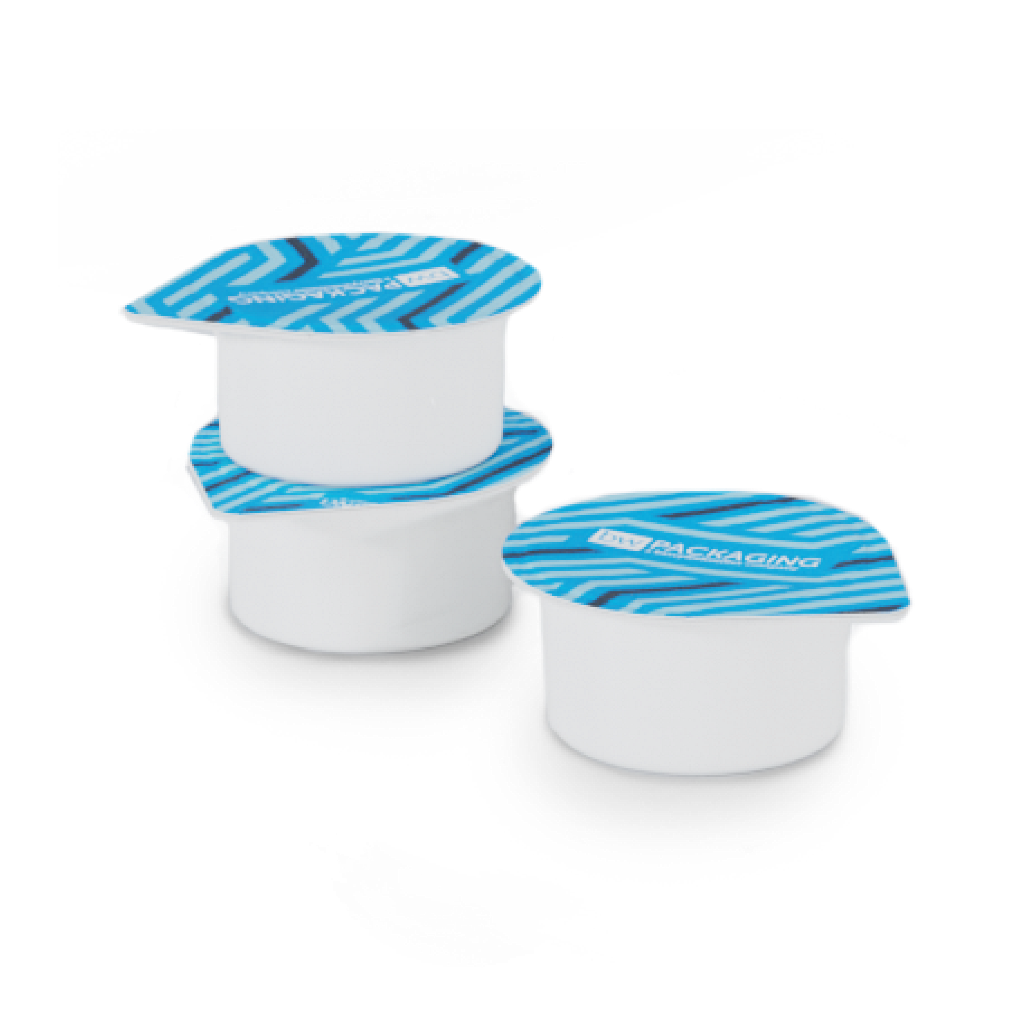

Mini Portions
Single Sever or Multi-Pack
Trimming Dimensions 44 x 44mm
Max Height 30mm
