DAIRY PACK RM90C | HIGH CUP AND PRODUCT FLEXIBILITY
About this machine
About this technology
DAIRY PACK Fill Seal Packaging Equipment
DAIRY PACK Cup Indexed Filling Machine
Extreme flexibility
Speed Range

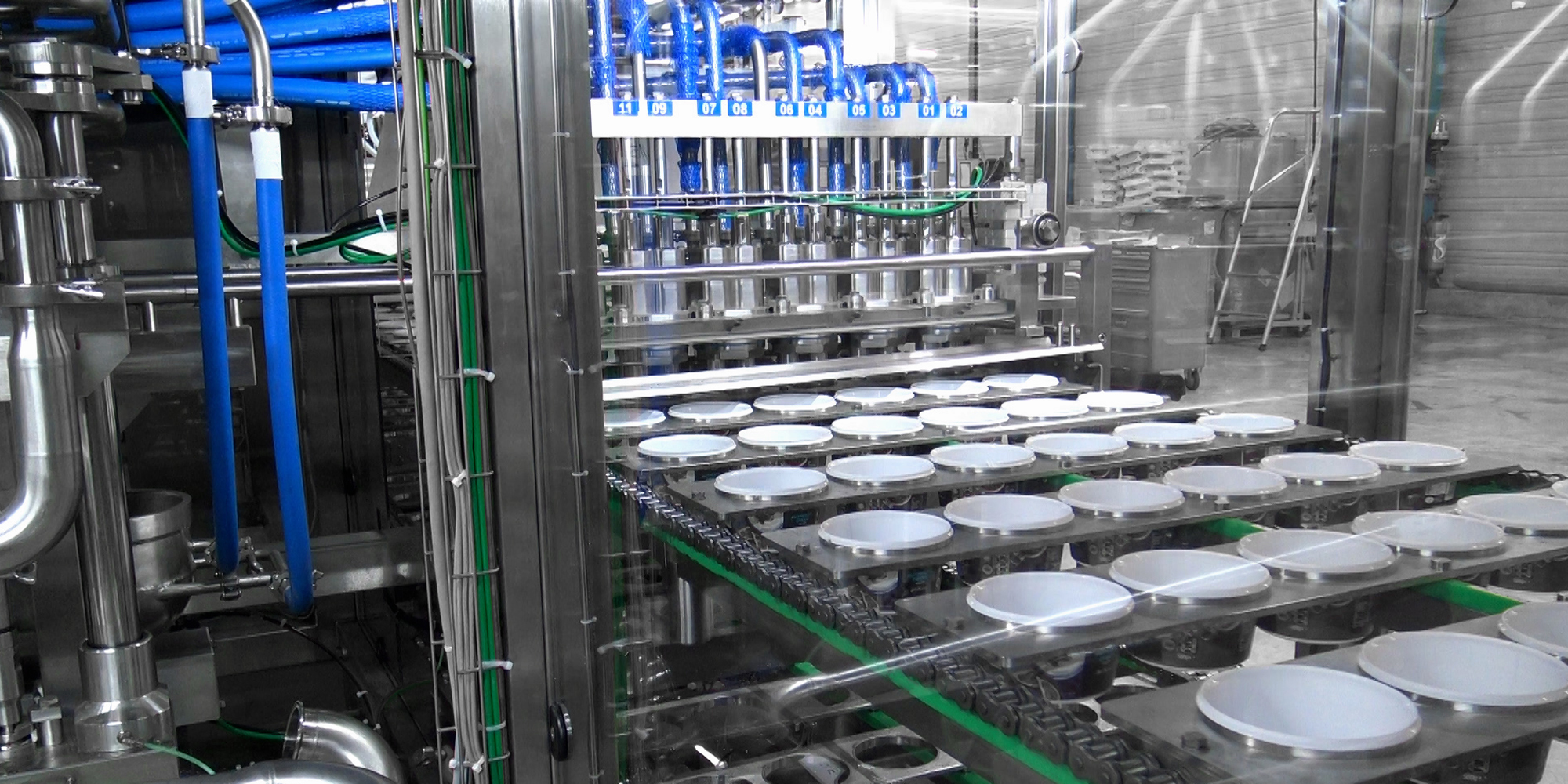

This inline indexed machine can fill and seal between 5,000 and 28,800 cups per hour with double index, allowing to scale up your productions. The Dairy Pack RM90C also allows for application of toppers, overcap and clipping to add an extra element to your product for your consumers.
Different Material Compatibility
This inline filling and sealing machine can handle various materials including paper, plastic, aluminium and glass, to help you fill and close cups, jars, tubs and so on. Moreover, it is possible to accomodate on the same machine at the same up to 3 different formats of packaging to allow diversified production on a single piece of packaging equipment. The diameters of the compatible different formats can vary between 60 and 160mm.
Product Details
High Operational Efficiency
- Production speed up to 28,800 cups/hour
- Customizable speed up to 30 cycles per minute

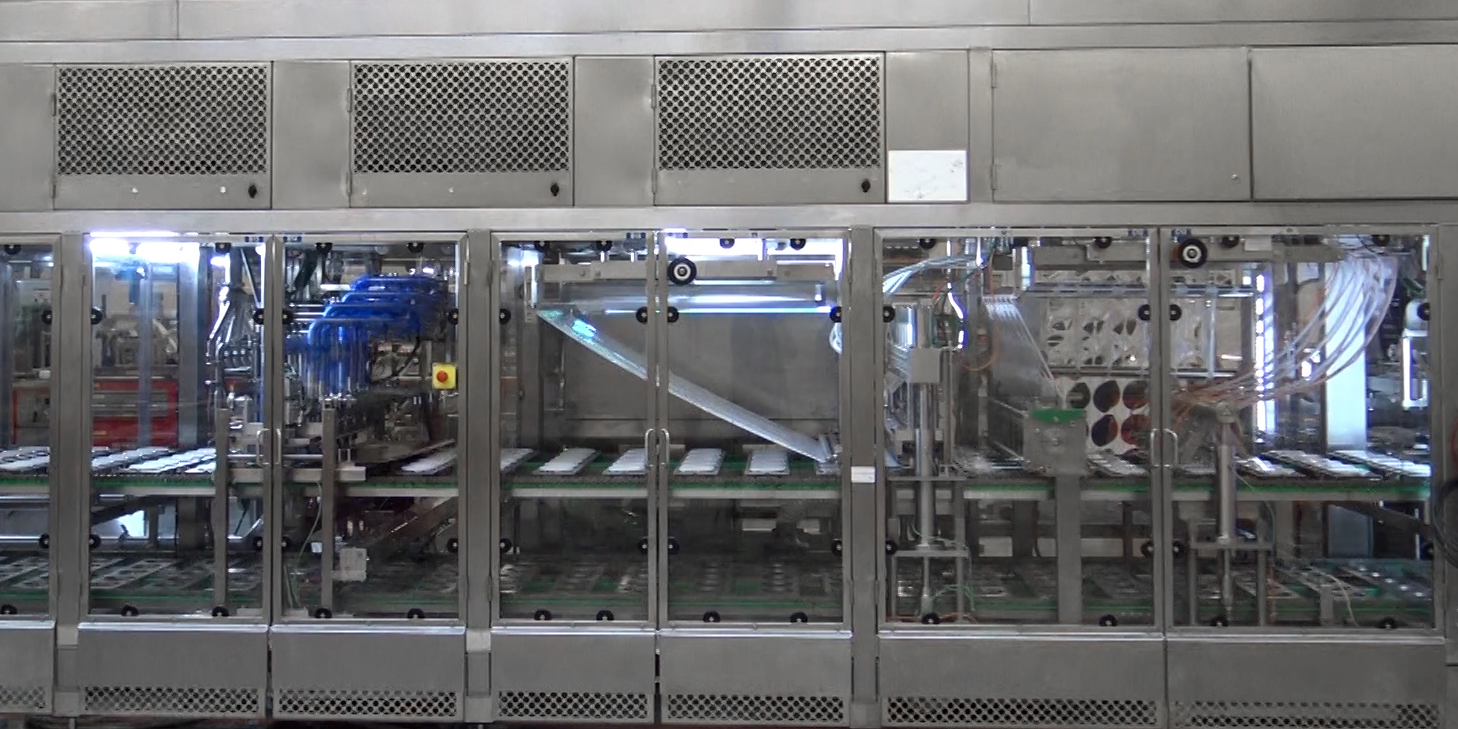

- Footprint (m) : 14L x 4.5W x 3H
- Filling various formats from 90 to 1000g
- Materials: Plastic, Paper, Glass and Aluminum
High Cup and Product Flexibility
- Up to 3 different formats with possibility of multi-layer products (up to 3 fillers)

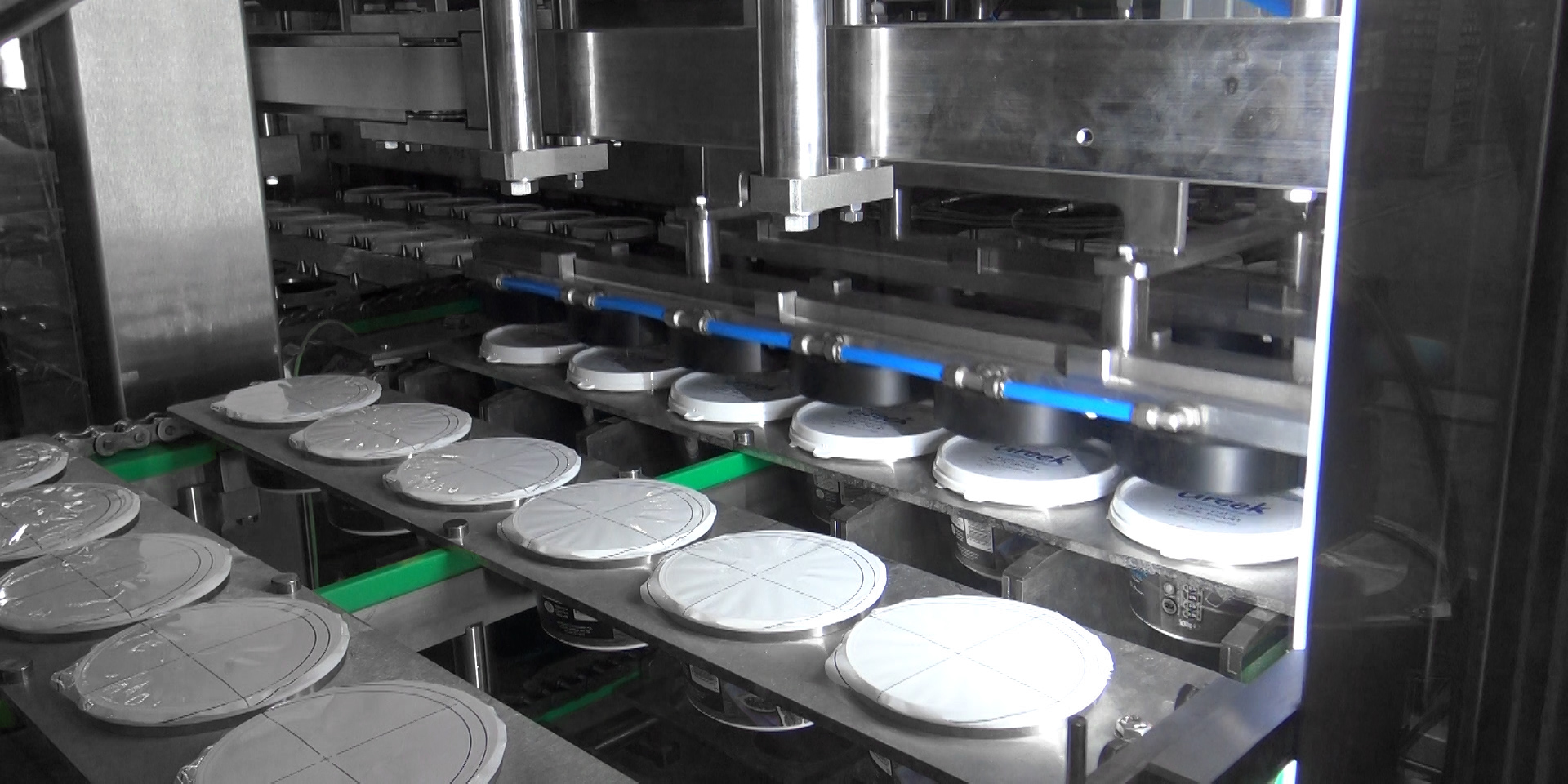

- Machine stations can be added to fit your needs (optional cup inserter, decontamination, filling stations, control stations, lid or overcap, topper...)
- Designed for fast and efficient change-over
- High accessibility for inspections, maintenance and cleaning operations
- Customizable HMI visualization for optimized production reporting
Gentle Product Handling
- Suitable for most homogeneous and pumpable products with fruit particulates (10x10x10 mm, larger products can be studied)
- We offer a global commitment for hygenic, integrity and accuracy of the filled products

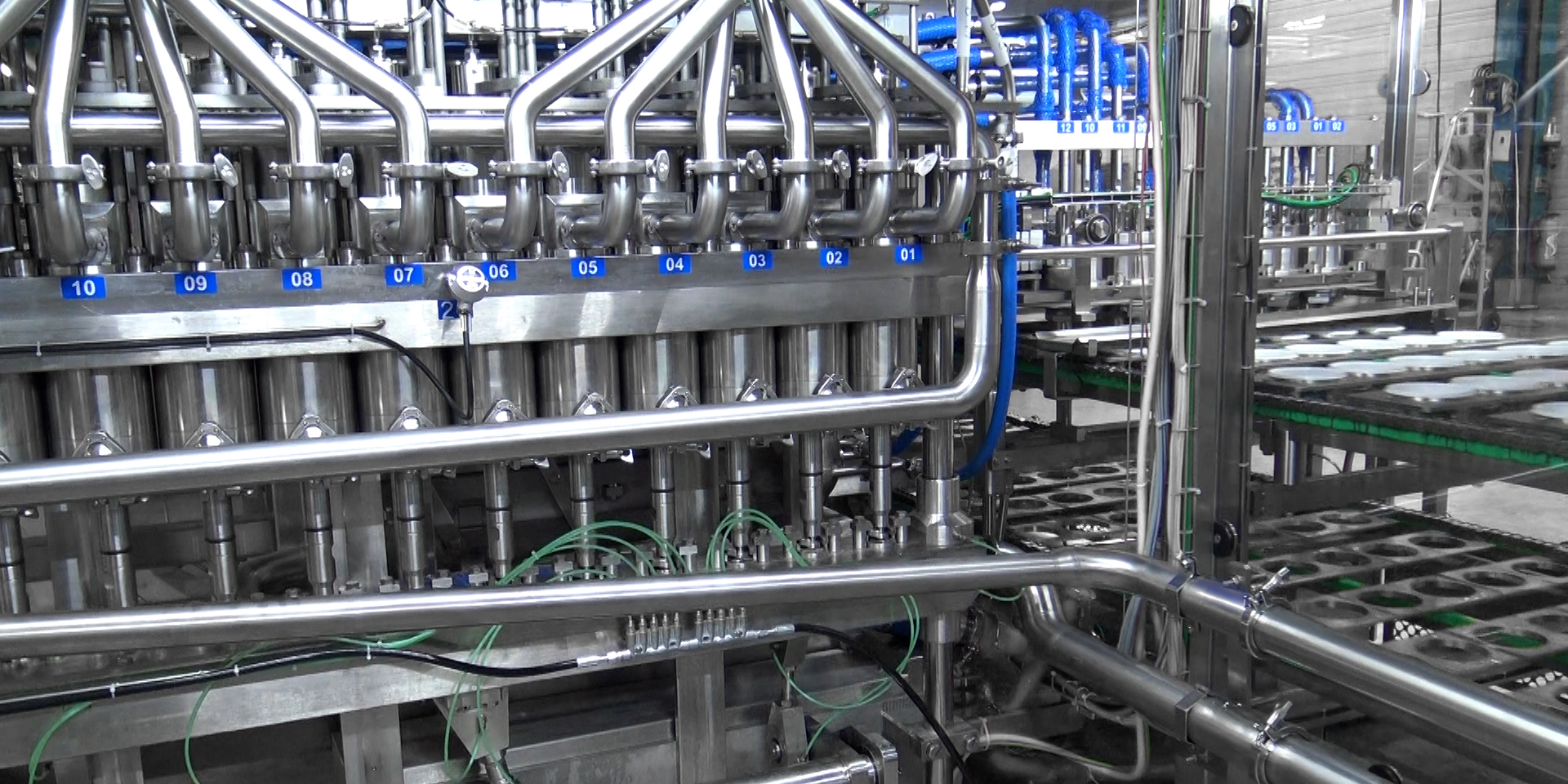

- Filler device outside the filling area for ultra-clean hygiene and extractible filler heads for optimized safety in CIP (optional)
- Fill test available for product optimization and to facilitate vertical startup
Technical Data
- Output: up to 28,800 cups/hour
- Pace: up to 30 cycles/min
- Dosed Product Range: 90 – 1,000 ml
- Material: Plastic, Paper, Glass and Aluminum
- Compliant with CE regulations
Packaging Styles
Plastic Cup
Stackable
Cup Platform 55 to 125mm
Cup Height 40 to 150mm

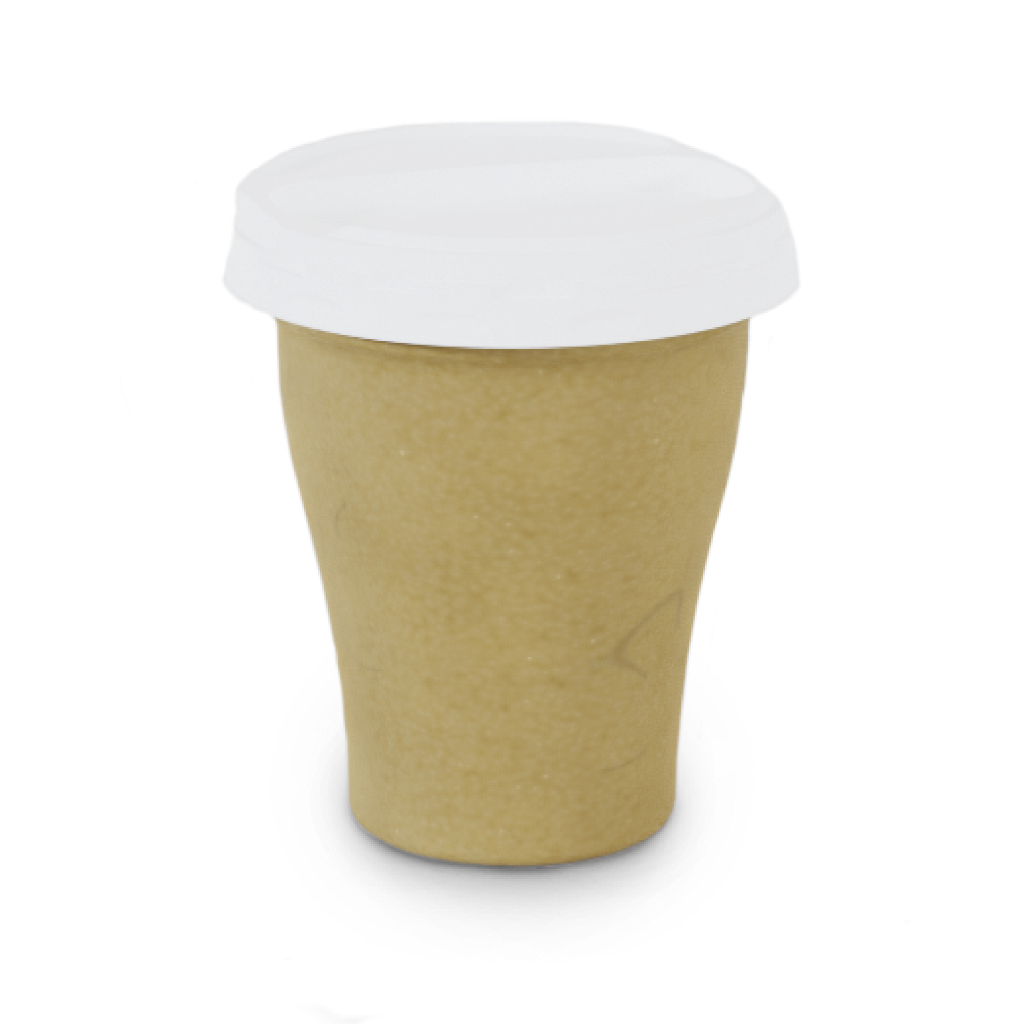

Paper Cup
Stackable
Cup Platform 55 to 125mm
Cup Height 40 to 150mm

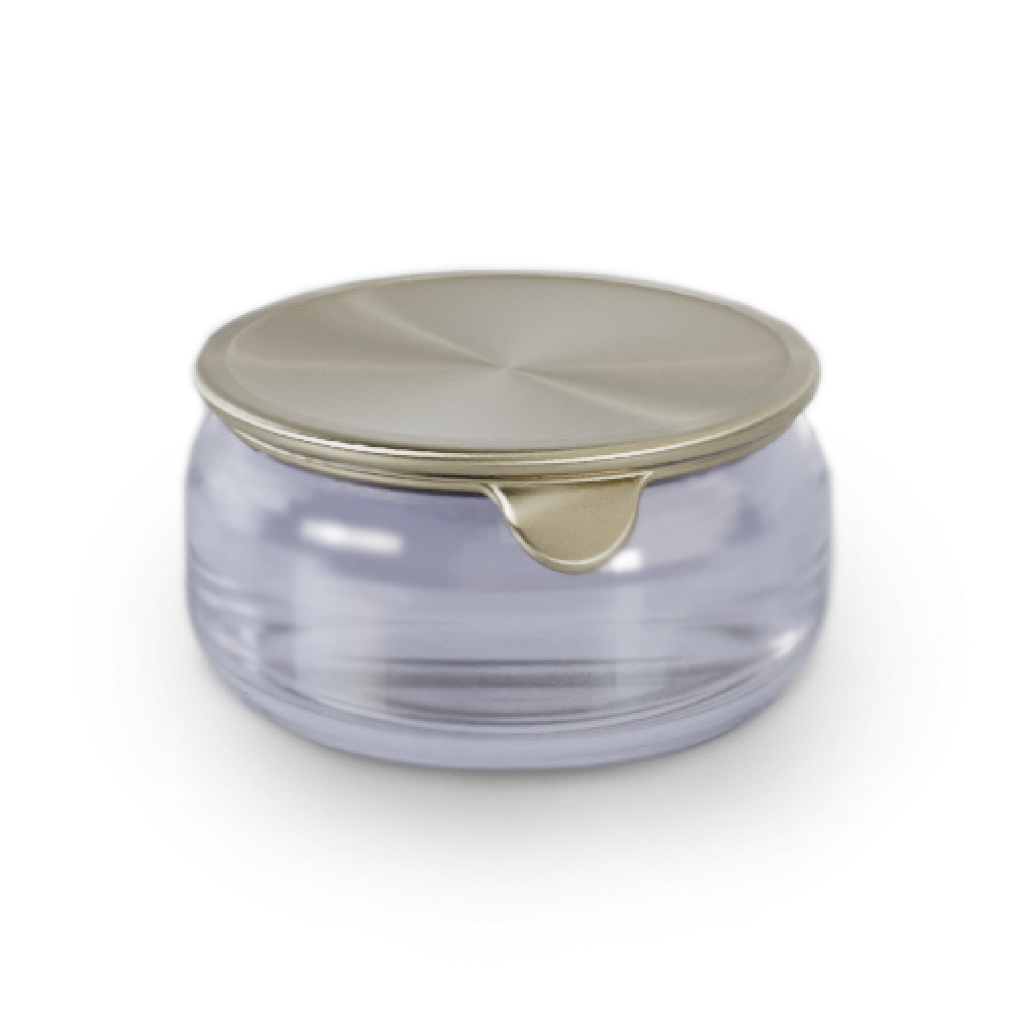

Glass Cup
Non-Stackable
Cup Platform 55 to 95mm
Cup Height up to 120mm

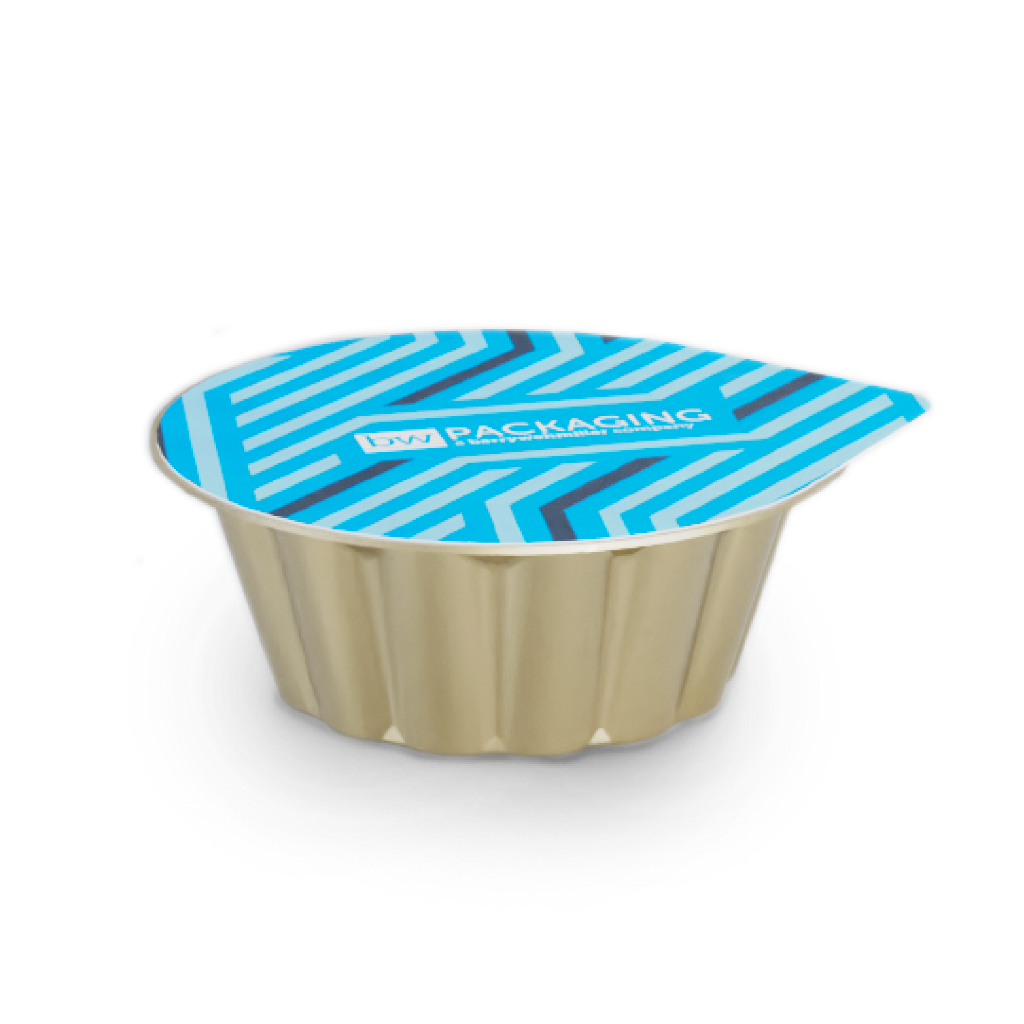

Aluminium Cup
Stackable
Cup Platform 55 to 125mm
Cup Height 40 to 150mm
Markets
Videos
Parts & Service
OEM parts and experienced Customer Service are key to maintaining the integrity and service of your equipment. We offer spare and replacement parts for all of our product lines, as well as a dedicated team of professionals who provide global support, delivered locally. If you need support, contact our team and a dedicated support professional will respond to your request.
-
