HEMA CANSM | CAN SEAMER AND CLINCHER

Reliable Performance

• Speed up to 150 cans per minute
• High speed clinching with vertical movement chuck
• Different formats: round, rectangular or trapezoidal, with or without slope
• Adaptable to various specifications:
• Diameter: 45 to 155 mm
• Diagonal: 45 to 170 mm
• Height: 20 to 250 mm

Standard Machine Features

• Vacuum seaming to maintain preservation and optimal appearance of the product
• Seaming profile quality ensured by cam and counter cam
• “No can-no lid” to limit losses
• Lid distributor equipped with a scroll separator operating from dispenser. This allows the lid to be lowered gradually and synchronously with the can, even if the product protrudes from the can with a dome, as the lid is guided to its position on the can.

Robust and Easy to Operate

• Continuous motion conveyor and placing of clinched cans into a transfer starwheel

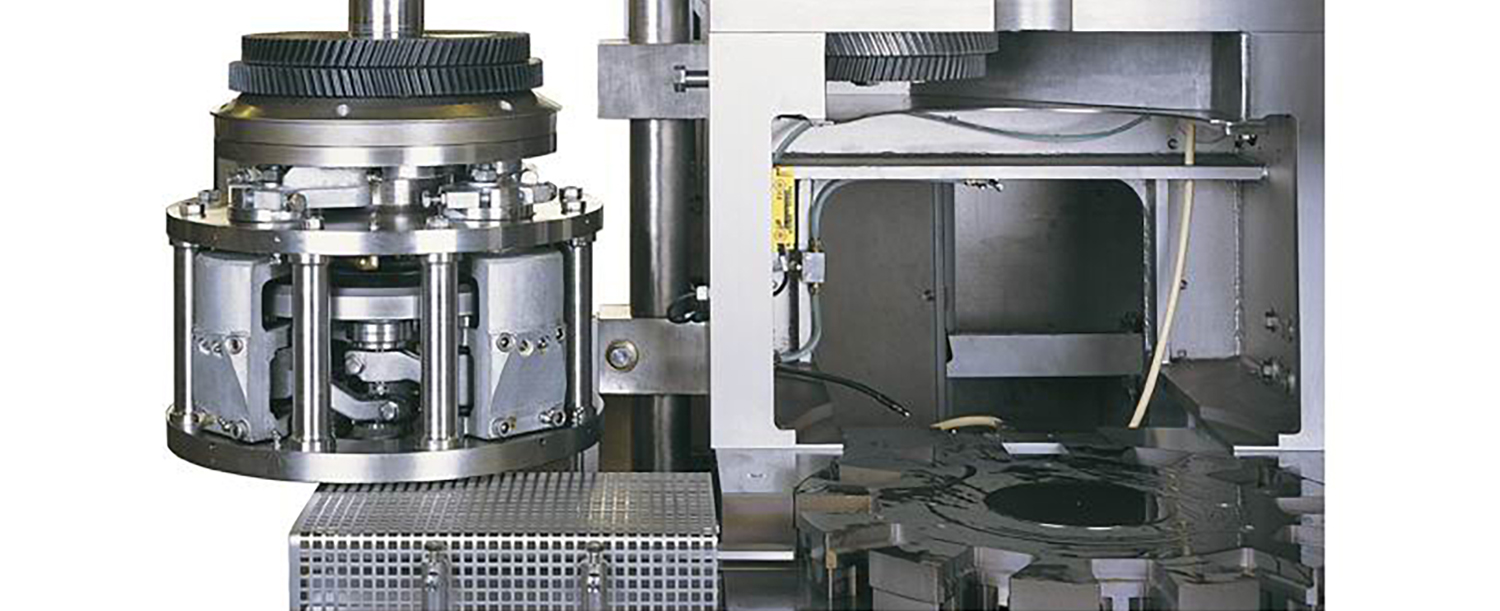

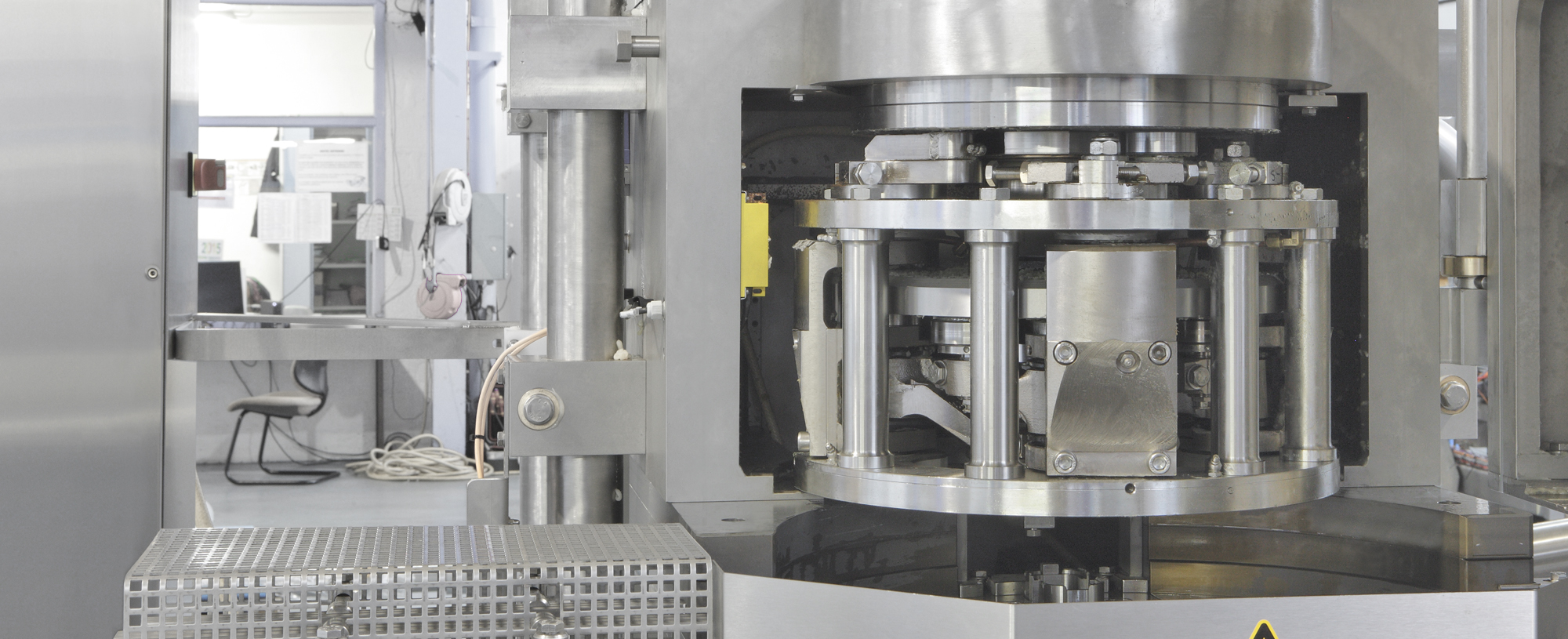

• Seaming head mounted on an articulated arm giving full accessibility
• Compression pad driven by a double track cam
• Robust mechanical parts running in oil bath for longer durability

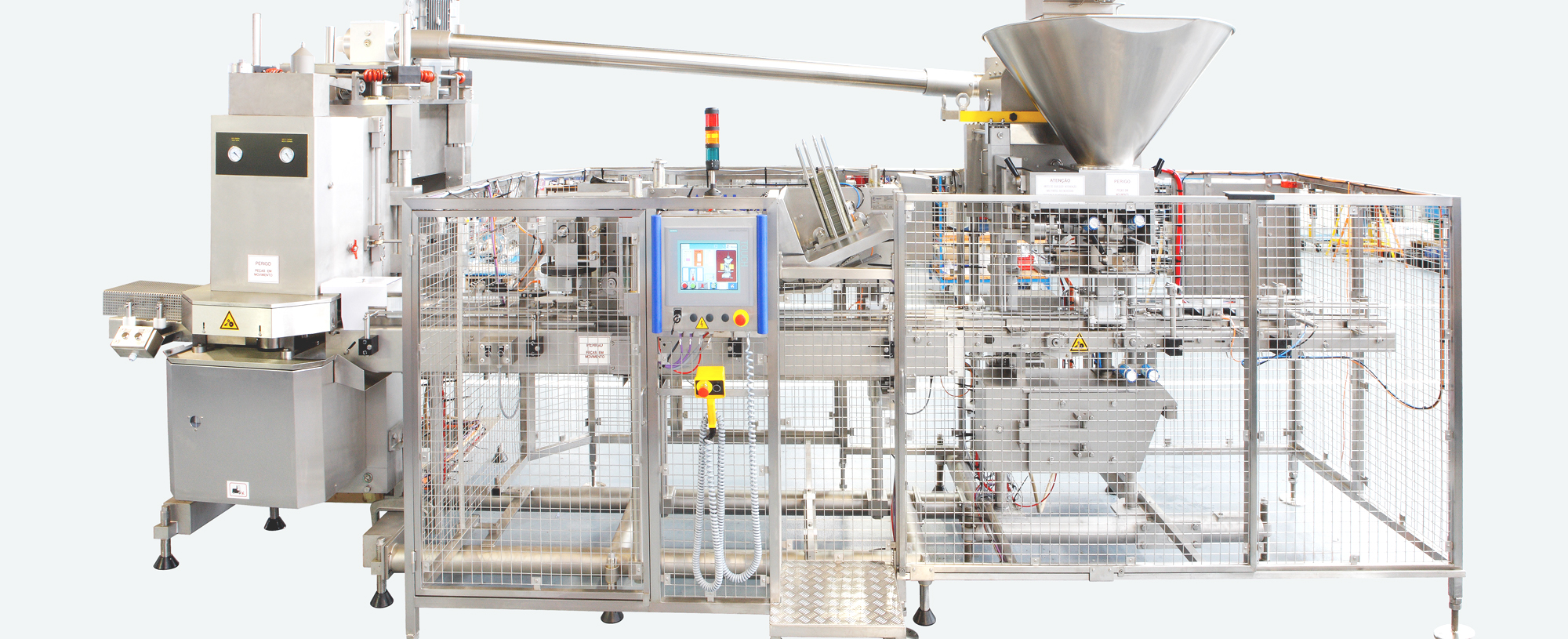

Turnkey Line Configuration

• Our expertise in filling and seaming can be extended to create complete lines combining filling up to 24,000 cans per hour
• Hema volumetric filler, linear or rotary technology

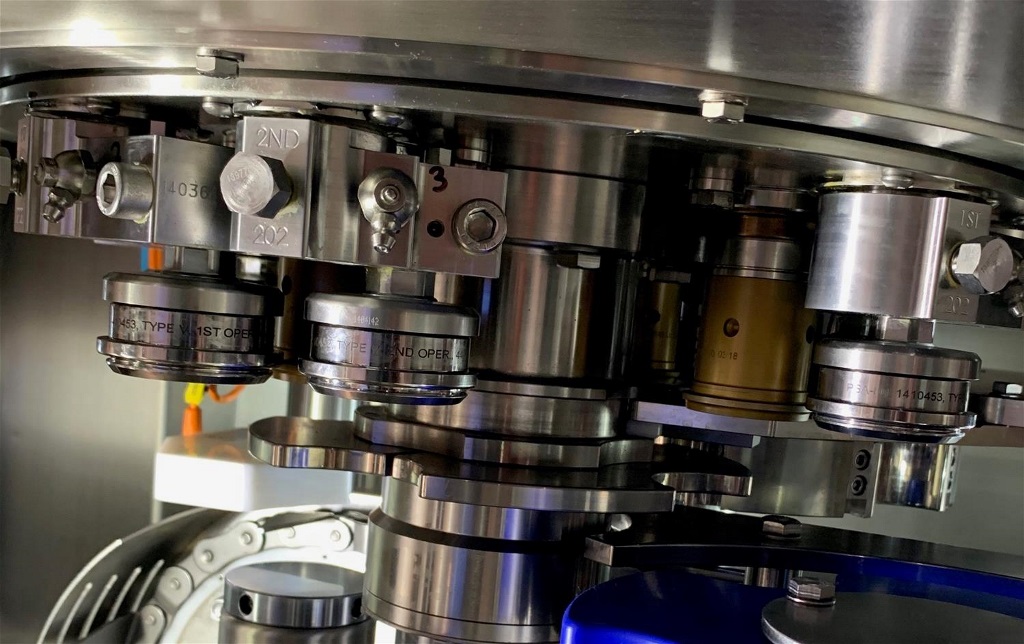

• Hema vacuum seamer for shaped or round cans or Angelus atmospheric seamer for round cans at high speed
• We can integrate other functionalities to your can line: depalletizer, magnetic lowerator, check weigher, magnetic washer, basket unloader and loader, labeler
