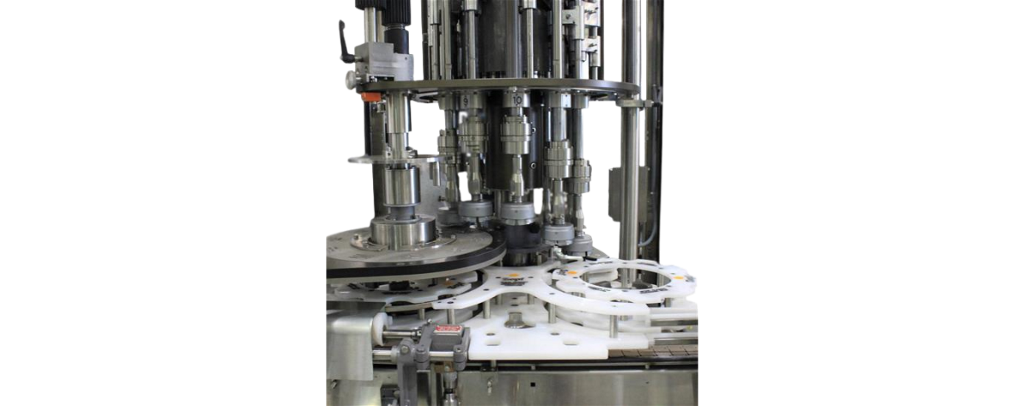

PNEUMATIC SCALE TC Mechanical Rotary Capper
About this machine
About this technology
Pneumatic Scales’ TC capper is ideal for practically any container. Customized turret pockets control non-round containers, while a gripper belt or clamp table can be added to hold round containers. Because the machine holds each container securely until capped, spilling, slipping, scuffing and crushing are eliminated. Magnetic torque units provide accurate mechanical torque control.
Caps are transferred to the capping chuck by cap transfer arms or a cap disk, and since timing is integrated with the turret, cap pickup is extremely reliable. Allowing ample time for each cap to seat itself eliminates misaligned caps, even at high speeds.
Eliminating container slippage, along with PSA’s Magnetic Torque Unit, guarantees accurate torque control without wear parts or constant maintenance. Our unique design eliminates the ratcheting effect found in other cappers on the market, which causes premature “wear and tear” and inconsistent torque.
Contact us today to speak with one of our capping experts about the goals of your project.
Product Details
- Speeds range between 12 – 600 Containers Per Minute (CPM) depending on model and project parameters
- Suited for round and non-round containers in a range of glass, metal, plastic and fiberboard containers
- Flexibility to handle screw caps, press-on caps, plugs, and overcaps
- Accurate torque control with Pneumatic Scales’ Magnetic Torque Units
- Cap transfer timing is integrated with the turret, so cap pick up is extremely reliable
- Positive container handling
- No container/no cap feature
- All-mechanical, sanitary stainless steel design
- Color-coded Zepf MARK II® Change Part System enables operators to complete tool-free changeovers for varying containers and caps in less than 15 minutes
- Motorized turret height adjustment and mechanical position indicators further facilitate rapid changeovers
Technical Data
- Speeds range between 12 – 600 Containers Per Minute (CPM) depending on model and project parameters
- Range of capping heads from 4 - 20 available
- Handles round containers from 4.08” – 10.00” in diameter
- Handles square containers ranging from 3.34” x 3.34” – 10.00 x 10.00”
- User-friendly touchscreen interface allows control of all capper functions and displays diagnostics
- Touchscreen interface makes machine adjustments easy for the operator
TC Capper Models Comparative Table
| Model Number | Speed (CPM) | Max. Cap Size | Max Container Diam. w/ Grip belts | Max Square Container w/ Turret Pockets | No. of Capping Heads | Container Pitch | Starwheel and Turret Pitch Circles |
| TC-450-4 | 12-120 | 110 mm | 6.88” | 6.00” x 6.00” | 4 | 13.91” | 450 mm |
| TC-450-6 | 18-180 | 110 mm | 6.88” | 6.00” x 6.00” | 6 | 9.27” | 450 mm |
| TC-450-8 | 24-240 | 110 mm | 6.25” | 4.81” x 4.81” | 8 | 6.95” | 450 mm |
| TC-450-10 | 30-300 | 89 mm | 4.97” | 3.93” X 3.93” | 10 | 5.56” | 450 mm |
| TC-450-12 | 36-360 | 70 mm | 4.08” | 3.34” X 3.34” | 12 | 4.63” | 450 mm |
| TC-600-6 | 18-180 | 110 mm | 9.00” | 8.00” x 8.00” | 6 | 12.36” | 600 mm |
| TC-600-8 | 24-240 | 110 mm | 8.00” | 6.56” x 6.56” | 8 | 9.27” | 600 mm |
| TC-600-10 | 30-300 | 100 mm | 6.79” | 5.38” x 5.38” | 10 | 7.42” | 600 mm |
| TC-600-12 | 36-360 | 89 mm | 5.61” | 4.60” x 4.60” | 12 | 6.18” | 600 mm |
| TC-600-14 | 42-440 | 89 mm | 4.75” | 3.98” X 3.98” | 14 | 5.30” | 600 mm |
| TC-600-16 | 48-480 | 70 mm | 4.10” | 3.49” X 3.49” | 16 | 4.63” | 600 mm |
| TC-900-8 | 24-240 | 110 mm | 10.00” | 10.0” X 10.0” | 8 | 13.91” | 900 mm |
| TC-900-10 | 30-300 | 110 mm | 10.00” | 8.24” X 8.24” | 10 | 11.13” | 900 mm |
| TC-900-12 | 36-360 | 110 mm | 8.00” | 7.05” X 7.05” | 12 | 9.27” | 900 mm |
| TC-900-14 | 42-440 | 100 mm | 7.38” | 6.14” X 6.14” | 14 | 7.95” | 900 mm |
| TC-900-16 | 48-480 | 100 mm | 6.41” | 5.41” X 5.41” | 16 | 6.95” | 900 mm |
| TC-900-18 | 54-540 | 89 mm | 5.65” | 4.82” X 4.82” | 18 | 6.18” | 900 mm |
| TC-900-20 | 60-600 | 89 mm | 5.04” | 4.38” X 4.38” | 20 | 5.56” | 900 mm |
