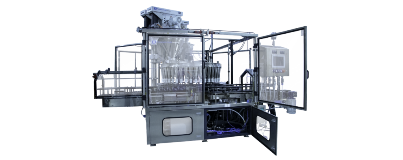

When your project calls for the highest speeds, precision filling and easy maintenance, the Mateer 6000 is your solution.  This rotary unit fills free-flowing and non-free-flowing powders and granules. Your production rate can climb to 650 Containers Per Minute (CPM), which can be improved depending on the properties of your product.

This sophisticated dry-product filling machine’s capabilities encompass precision fills of free-flowing powders and granules (e.g. spices, infant formula and detergents), and non-free-flowing powders (e.g. cake mixes, ground spices).  The product is fed into a multi-station rotating turret, then deposited into interchangeable receiving funnels.  A dust-free filling environment is maintained as containers are filled to a specific volume.  The Programmable Logic Controller (PLC) and Human-Machine Interface (HMI) provide easy input, self-diagnostics, and access to data that can guide your productivity. Programming is included in the installation of any Mateer filler.

Mateer dry fillers are engineered for an expected life of 25 years, and we proudly still supply parts and service for active filling machines installed more than 60 years ago.  Contact us today to speak with one of our Mateer experts about setting up a complimentary product evaluation in our Fill Test Lab at our Clearwater, FL facility.

• Runs at speeds up to 650 Containers Per Minute (CPM)
• Precise to within +/- 0.5% with a check weigher, which can be engineered to greater accuracy with product testing
• Food-grade stainless-steel receiving funnels stand up to continuous use at high temperatures, alkalis, acids and salt
• Auger drive shaft, common to all auger sizes
• Zepf Solutions Color-coded “no tool” change parts for fast, easy changeovers
• Has a National Electrical Manufacturer Association (NEMA) 12 dust-proof control enclosure that protects your rotary’s internal workings against dust, dirt, oil, even corrosive liquids
• 22” diameter (559 mm), 16 gal (60 liter) capacity stainless steel hopper with dust-proof cover so pests, dirt, or dust can’t contaminate product.  This also has a 7” (178 mm) diameter infeed duct.  An interlocking inspection port allows operators to safely, easily, check hopper contents.
• Positive container control via UHMW dual main starwheels and container guides
• Automatic and jog control switches enhance efficiency in filling line operations
• Mechanical jack raises fill head(s) and turret to make adjusting to containers of different heights easy and fast
• Turret can be stopped in cases of container jam or downstream backups, reducing product loss and downtime
• Bottom rail vibration stations and turret vibration help product flow freely into container
• Easily track CPM and other critical data on HMI
• Mateer fillers are designed for operator safety, and include polycarbonate guards, hands-free height adjustments, interlocking access doors

• Filler heads are cast from a single piece of aluminum for greater durability
• Quick disconnect/self-aligning hopper for easy changeovers and clean ups
• The conveyor can be raised for fast, easy cleaning
• Can be either single or multi- head, depending on the size of the container(s) being filled.  A single head model is approximately 63” long x 60” wide x 83” high (1600mm x 1524mm x 2108mm).  A double head model is approximately 103.5” long x 101.31” wide x 96” high (2628mm x 2753mm x 2438mm).
• Weight: Approximately 1,753 lbs (795 kg)
• 11’ (3.3m) stainless steel conveyor with adjustable stainless steel guide rails and Delrin table top chain
• Has a 230 or 460 volt, 3 phase, 60 hertz motor

• Air, or short, lift is a pressure or vacuum-assisted lift for raising containers off conveyors for weighing applications
• Vibrators to help settle product, located at the filling position or farther down the production line
• Level and cut off controls
• Remote fill options, allowing an operator to oversee production on multiple machines at a time
• Line guards detect back ups downstream, and will halt filling until the conveyor is cleared
• Checkweigh feedback will change the amount of product is filled by adjusting auger revolutions based on a feedback pulse
