HEMA NUTRI | ROTARY FILLER FOR THE SAUCE & DRESSINGS MARKET
About this machine
About this technology

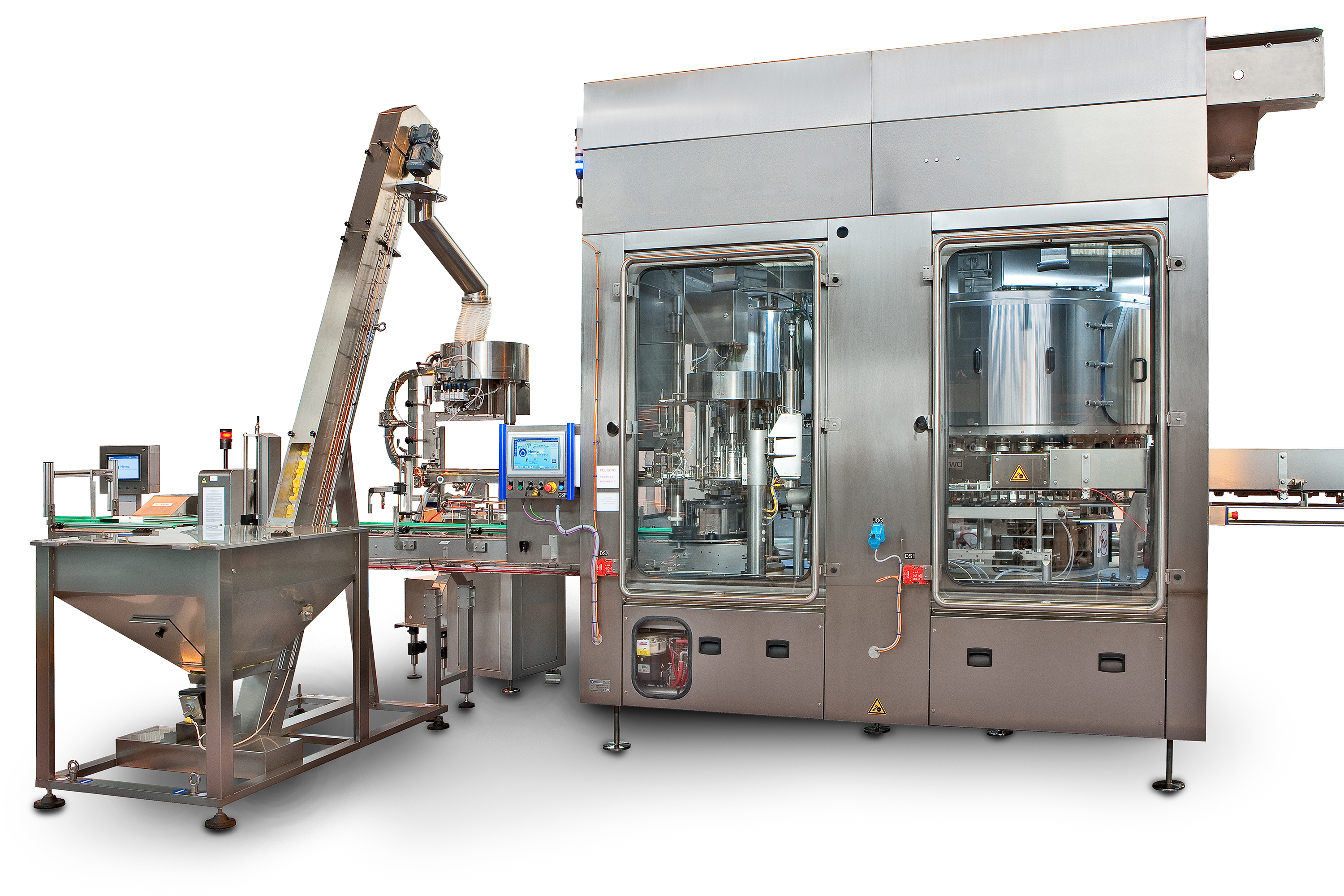

Electronic Rotary Filler for HEMA and Filling Solutions
Hema NUTRI is dedicated to the particulate and non-particulate sauce and dressings market. It benefits from Hema’s proven expertise built up over several years, in the area of filling complex products for large international groups.
This Hema packaging solution is a rotary filling machine for sauces and dressings, available in Monobloc configuration with capper or thermosealer. NUTRI filler can also be synchronized to a neck trimmer or a rinser. Combi configuration associates blowing, filling and capping for PET bottles.
Working with Your Recipes
The filling method is carefully chosen to match the specific characteristics of your product: its type (e.g. liquid, thick, particulate), what needs to be protected (flavor, vitamins, color, etc.), its shelf-life (short or long), its sensitivity to external elements (temperature, oxygen). A complex equation between relative acidity (pH), the presence of nutrients, presence of O2, level of sugar content, preserving agents, artificial colorings, stabilizers, and which has an impact on the conservation and bacteriological quality of your product.
Our sauce and dressings filling machines meet the highest standards of hygiene. They have been awarded 3A level certification and Hema is a member of EHEDG.
We offer 3 rotary filling technologies: Weight – Mass Flow – Volumetric Electronic
HEMA Packaging Machine: Nutri Rotary Filler Features & Benefits
- Electronic rotary filling technology reaching unequalled levels of filling accuracy
- Hema packaging equipment common frame for optimal hygiene
- Technical design which adapts to different electronic filling technologies: weight, mass flow or volumetric electronic
- Optimal filling capacity for all 3 technologies, in terms of production speed efficiency and optimal use of space.
- Common chassis design with a number of possible structures, allowing for the inclusion of numerous environmental options
- Wide doors, allowing easy access to the filling and capping zone for easy maintenance or tool changeover
- The filler is equipped with a reduced-sized hopper and off-centered nozzles, ensuring minimal product loss between recipe changes.
- Trust Hema NUTRI packaging and filling solutions for precision and efficiency int he industry for your products
Product Details
Production Flexibility
- The HEMA NUTRI is designed for all types of sauce and dressings - with or without particulates
- Our NUTRI filler is a flexible machine, known for its reliability for your products
- Recipes can be changed directly from the touchscreen control panel
- Accommodates containers in glass, PET, HDPE... and round, oval or with handle shapes
- Caps application: flat screw, push-pull, twist off…
- Up to 40,000 bottles per hour, from 80 ml to 5000 ml
High Accuracy Dosing
- High filling precision: standard deviation < 0.8 grams for one liter
- Optional net weight or mass flow dosing technologies are available
- Accurate filling technology will deliver a rapid return on investment
Modular Filler Configuration
- HEMA NUTRI is available as stand-alone configuration or in Synchrobloc with upstream equipment (rinser,…)
- Our filler can also be combined with blow molders for PET
- Number of filling heads: 15 to 66
- Number of capping heads: 5 to 22
- Available with optional HEPA or exhaust systems
Fast Product Changeovers
- Quick, no-tool bottle format change
- Wide doors, allowing easy access to the filling and capping zone for fast maintenance or transfer tooling changeover
- NUTRI electronic fillers are equipped with a reduced-sized hopper and off centered filling valves, ensuring minimal product loss between recipe changes
Easy Cleaning and Robust Design
- Our fillers meet the highest hygiene requirements: they are built following 3A and EHEDG standards. Our load cells are EHEDG certified
- Filler hygienic design with full stainless-steel base
- An angular collecting trough collects the product at the end of production and CIP solutions
- Hema has been providing proven solutions to our customers since 1936
Technical Data
- Output: up to 40,000 containers/hour
- Number of filling heads : 15 to 66
- Number of capping heads : 5 to 22
- Dosed Product Range: 80 – 5,000 ml
- Compliant with CE regulations
Packaging Styles

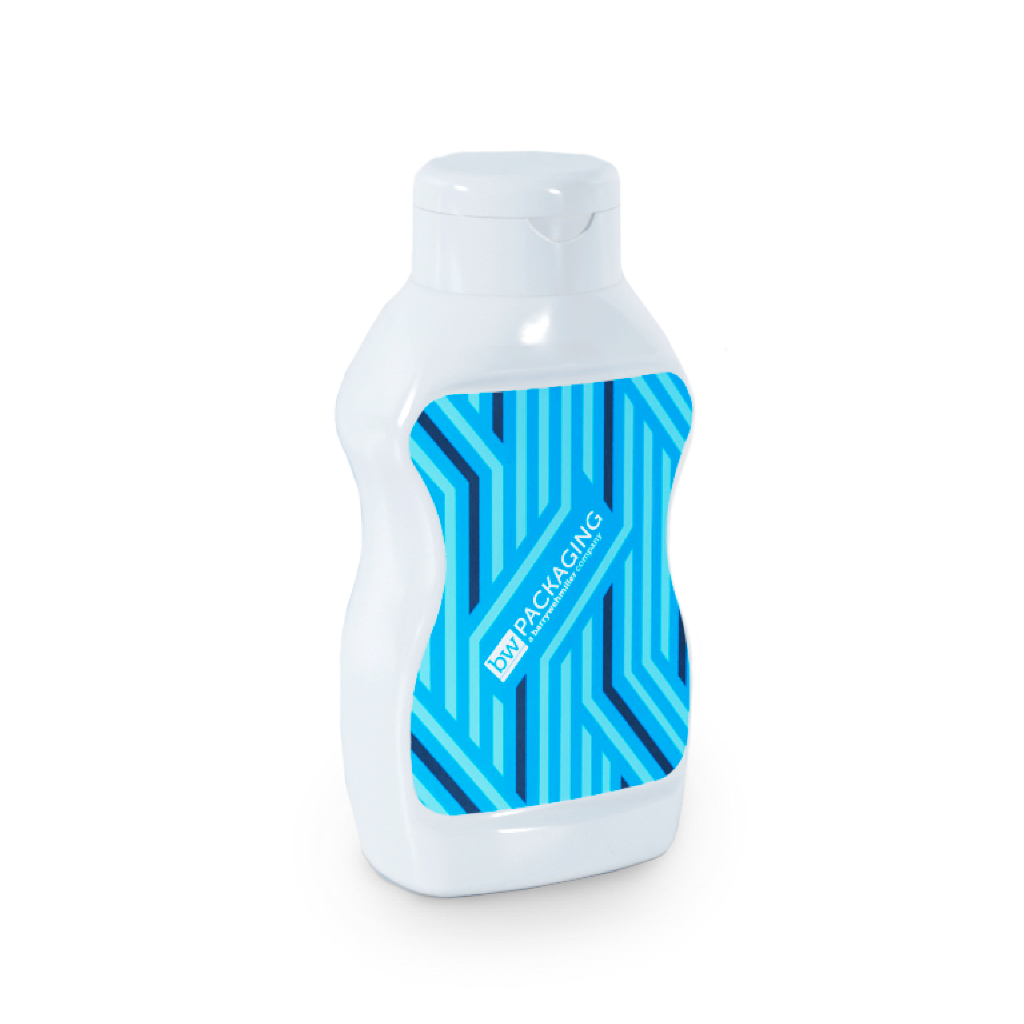

Squeeze Bottle with Screw Cap
Example
Platform 93 x 57mmHeight 200mm

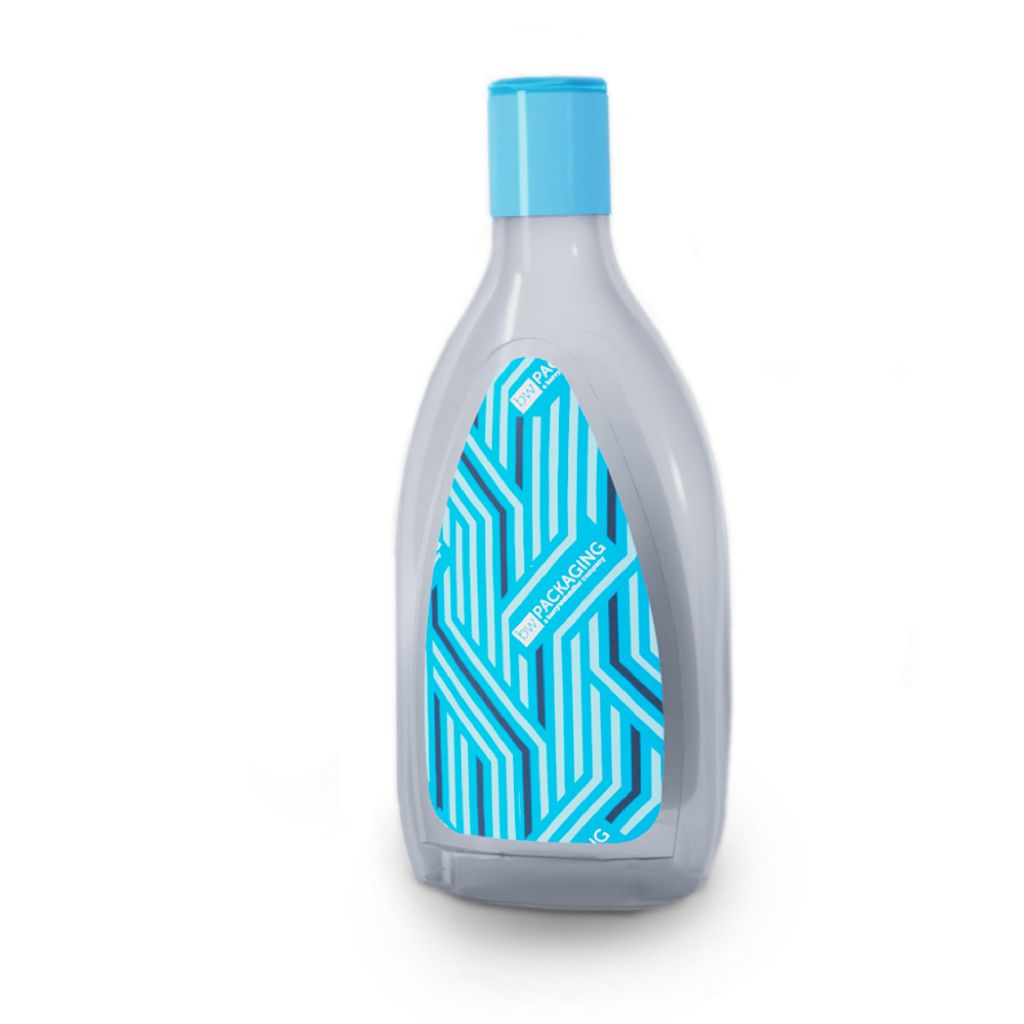

Bottles with Push Pull Cap
Example
Platform 120 x 60mmHeight 235mm
Bottles with Seal and Cap
Example
Platform 200 x 200mmHeight 305mm
Jars with twist off cap
Example
Ø 70mm
Height 95mm
Material Glass
Markets
Videos
Parts & Service
OEM parts and experienced Customer Service are key to maintaining the integrity and service of your equipment. We offer spare and replacement parts for all of our product lines, as well as a dedicated team of professionals who provide global support, delivered locally. If you need support, contact our team and a dedicated support professional will respond to your request.
-
