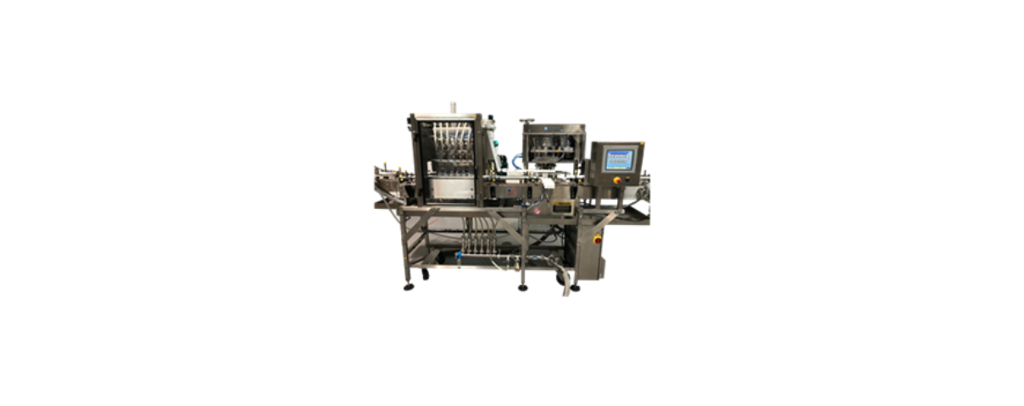

PNEUMATIC SCALE | ANGELUS Craft Beverage CB50F Open Air Integrated Filler Seamer
.png?sfvrsn=b386555f_1 "CB (2)")
.png?sfvrsn=fb87555f_1 "CB50F - pic (1)")
About this machine
About this technology
The CB Series of integrated filler/seamers provide canning technology designed specifically for and scaled to the needs of craft beverage packaging. Open air or atmospheric filling is cost-effective for still and lower-carbonation products, and is relatively simple to operate and maintain.
The accurate and repeatable fill level metering uses magnetic flow meter technology, with no moving parts. Because sanitation is critical, product contact parts, including CO2 pre-purge nozzles and product contact parts in individual fill valves are made from 316 stainless steel. Product supply piping and connections are all sanitary/hygienic, and of course, product supply is Clean In Place (CIP) capable, up to 180°.
Changeovers are fast and easy, thanks to quick change levers, and tooling adjustments are maintained between changeovers. Even the seaming cam is easy to remove and replace when you are changing material, can size and/or seaming specifications.
Contact us today to speak with one of our craft brew experts about the specific requirements of your project. We’re happy to assist you.
Product Details
- Integrated 6-head inline filler with a single head can seamer provides continuous operation at speeds up to 50 Cans per Minute (CPM)
- Variable speed range of 15 - 50 Containers Per Minute (CPM)
- Integrated 6-head inline filler with a single head can seamer heads
- Tooling adjustments are maintained between changeovers
- Can rinser assembly with air dry
- Protective flange prevents damage from maladjustments
- Seaming tooling design and technology is the reliable, robust Angelus V-series
- Seaming cam easily removed/replaced for possible future changes in material, can size and/or seaming specifications
- Titanium Nitride-coated Angelloy® seaming rolls with ceramic bearings

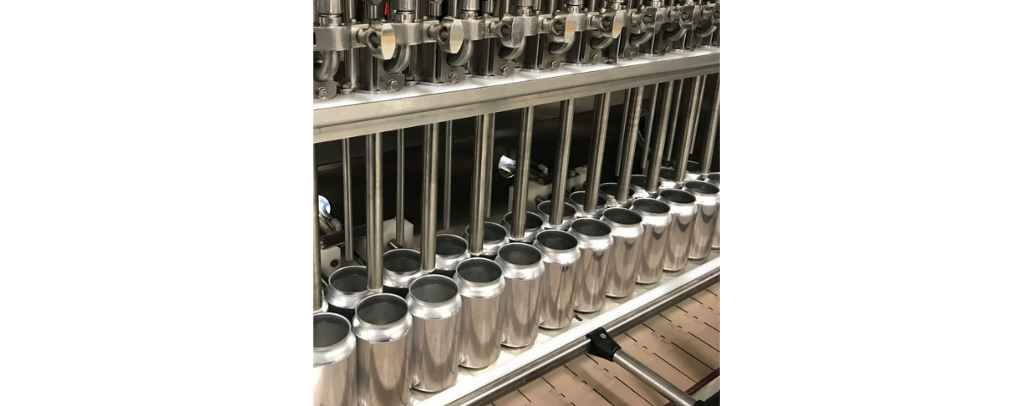

- Sub-surface filling minimizes product agitation
- Single can indexing prevents disturbing the product and altering CO2 values
Technical Data
- Continuous operation at speeds up to 50 Containers Per Minute (CPM)
- Variable speeds of 15-50 CPM
- Six filling heads
- Simple HMI input for individual fill head volume adjustments
- Cam-operated Can Holding Chuck (CHC)/lower Lifter with adjustable CHC spring
- Grease lubrication
- Hardened tool steel seaming cam for long life
- Stainless steel product area and base assembly
Packaging Styles
Markets
Videos
Parts & Service
OEM parts and experienced Customer Service are key to maintaining the integrity and service of your equipment. We offer spare and replacement parts for all of our product lines, as well as a dedicated team of professionals who provide global support, delivered locally. If you need support, contact our team and a dedicated support professional will respond to your request.
