HEMA ACCES | ROTARY FILLER FOR THE EDIBLE OIL MARKET
About this machine
About this technology

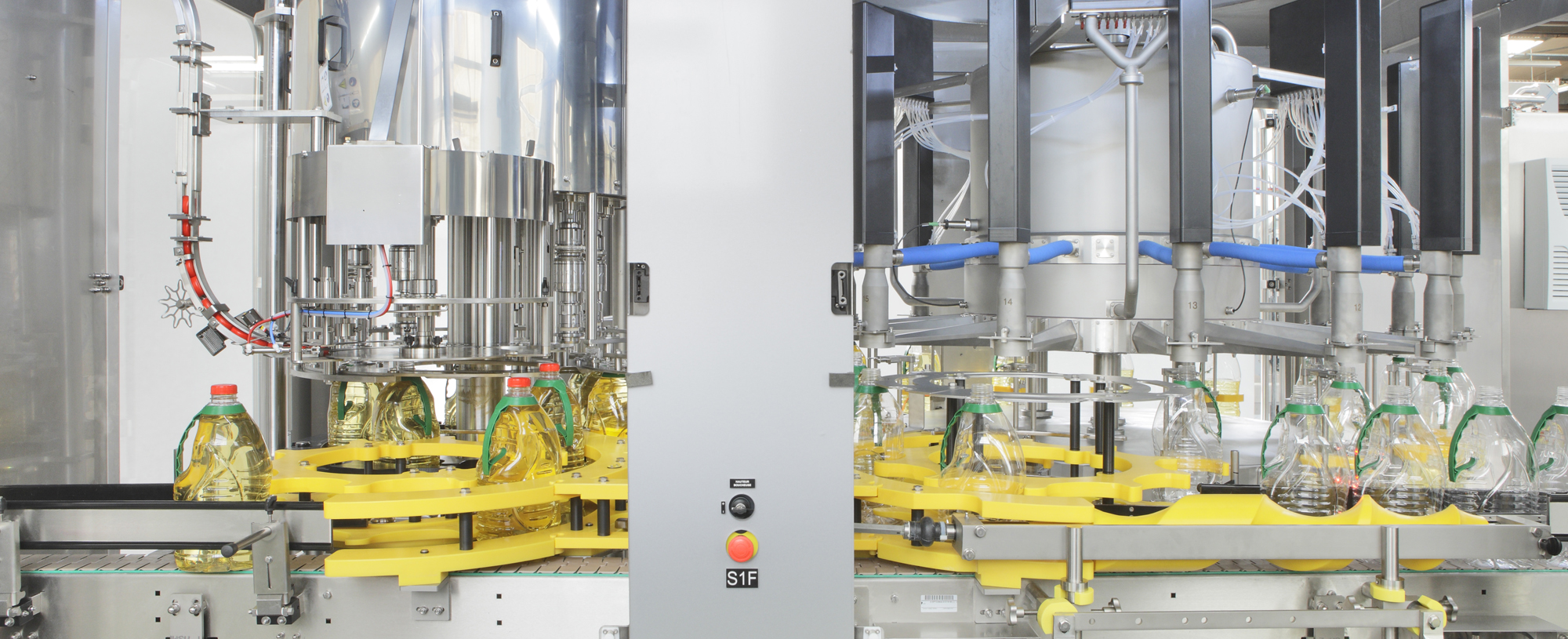

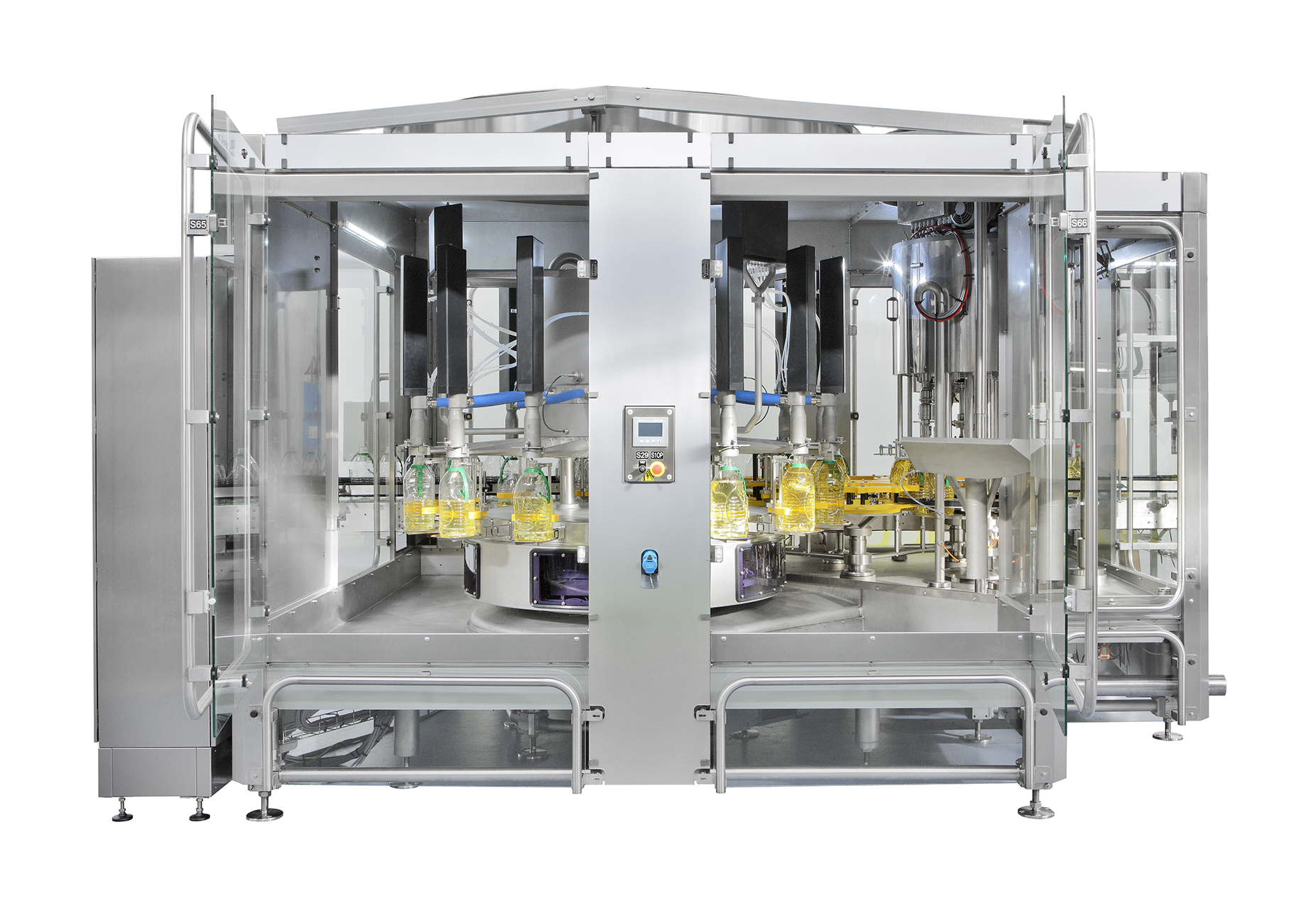

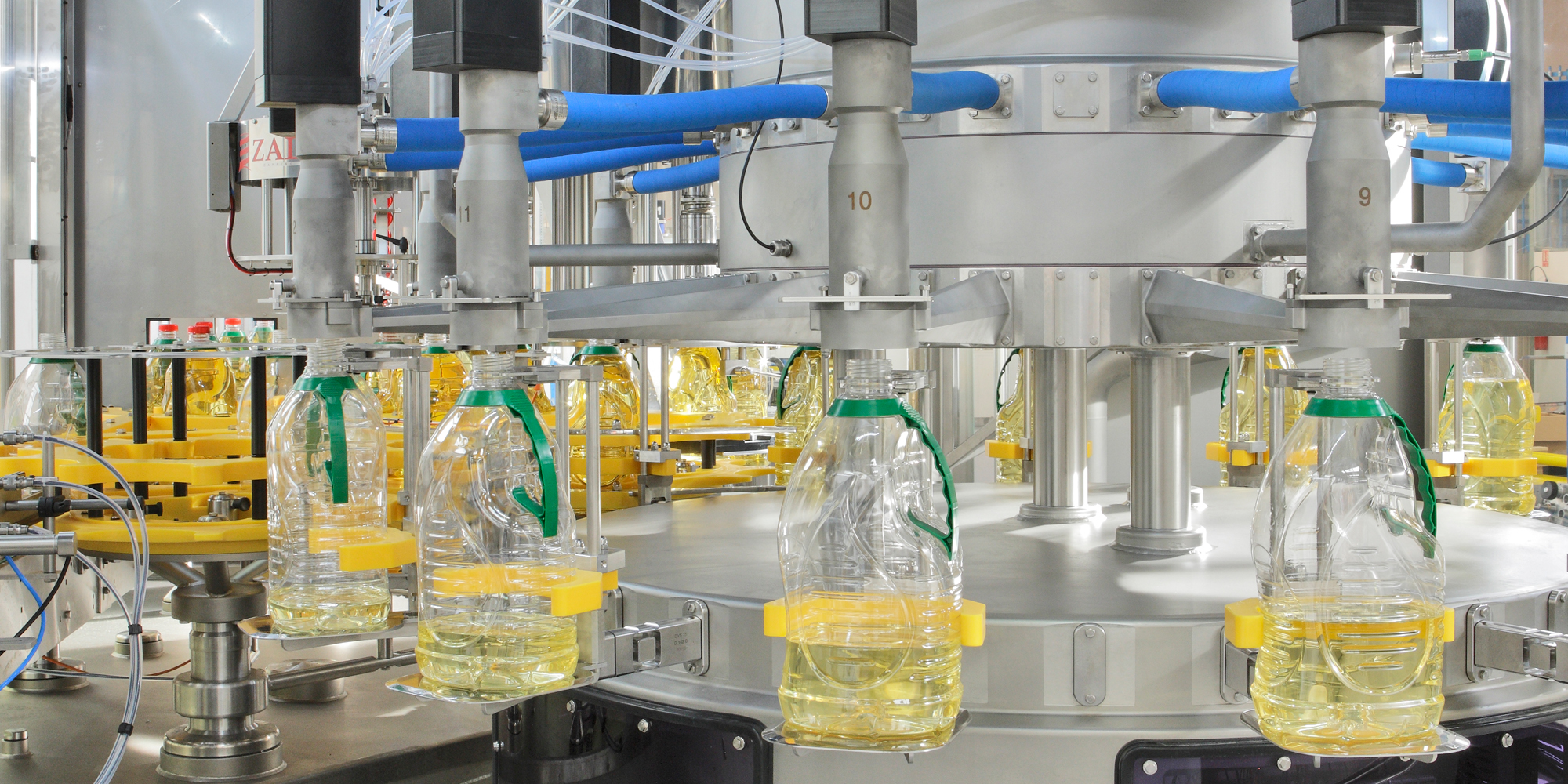

HEMA Electronic Edible Oil Rotary Filler
The ACCES filler series is dedicated to the edible oil market and has benefitted from Hema’s solid experience gained over several years of working for major International groups in the area of filling solutions for edible oil.
ACCES is available in Monobloc configuration with capper or Combi associating blowing, filling and capping for PET bottles.
We offer two packaging equipment filling technologies for edible oil: Weight – Mass Flow
Meeting Your Oil Filling Your Needs
Ensuring the correct handling of the product determines the shelf life and the quality of the edible oil. Whether it regards the oxidation or the product temperature. Edible oil producers are looking at solutions that can truly respond to this need while ensuring the packaging solidity.
Synerlink's Hema packaging equipment offers solutions that are studied to ensure your product shelf life and prevent oil oxidation. The right environment temperature, prevention of oxidation and strengthening bottle solidity for transportation are among the solutions that Synerlink offers to edible oil producers.
- Olive Oil
- Sunflower Oil
- Rape seed Oil
- Groundnut Oil
- Walnut Oil
- Palm Oil
HEMA ACCES Rotary Filler Features & Benefits
- Electronic filling technology reaching unequalled levels of filling accuracy for your edible oil product
- Hema packaging machine common frame for optimal hygiene
- Technical design which adapts to different electronic filling technologies: weight or mass flow
- Optimal filling capacity for all 2 technologies, in terms of production speed efficiency and optimal use of space.
- Common chassis design with a number of possible structures, allowing for the inclusion of numerous environmental options
- Wide doors, allowing easy access to the filling and capping zone for easy maintenance or tool changeover
- A reduced-sized hopper and off-centered nozzles, ensuring minimal product loss between recipe changes.
- Choose Hema ACCES, the Hema rotary filler machine, for precision and efficiency for your edible oil production
Product Details
Production Flexibility
- The HEMA ACCES is designed for all types of edible oil filling - our patented double flap valve makes it possible to fill volumes from 80 ml to 5 liters at optimal speeds, without changing nozzles
- Up to 40,000 bottles per hour
- Recipes can be changed directly from the touchscreen control panel
- Accommodates containers in PET and Glass: Round, oval, with handle shapes, flat screw and push-pull caps
High Accuracy Dosing
- High filling precision: for 1L, Sigma<0,5g
- Unrivaled filling accuracy, set at low or high, according to the format of the bottle, the bottle-neck space and type of product
- EHEDG certified, IP69K load cell Modular Filler Configuration
- HEMA ACCES is available in a monoblock configuration with capper or the Combi configuration, which associates blowing, filling, and capping for PET bottles
- Number of filling heads : 15 to 66
- Number of capping heads : 5 to 22
- A common frame with several possible structures, allowing for the inclusion of numerous environmental options (N2 sparge or headspace gassing)
Fast Product Changeovers
- Quick, no-tool bottle format conversion
- Quick change nozzles
- Wide doors, allowing easy access to the filling and capping zone for easy maintenance or tool changeover
- ACCES electronic fillers are equipped with a smaller hopper and remote nozzles, ensuring minimal product loss between recipe changes
Easy Cleaning and Robust Design
- Non-contact valve technology prevents bottle-to-filler contamination
- Filler hygienic design with full stainless steel sloped frame
- An angular collecting trough collects the product at the end of production (optional)
- Low operating cost and easy maintenance
- Our goal is to design and deliver long-lasting solutions to our customers. No compromise on components and material quality are our best warranties
Technical Data
- Output: up to 40,000 containers/hour
- Number of filling heads : 15 to 66
- Number of capping heads : 5 to 22
- Dosed Product Range: 80 – 5,000 ml
- Compliant with CE regulations
Packaging Styles
125ml Bottle
Screw caps
Ø 45mmHeight 105mm
Material PET
Product Olive oil

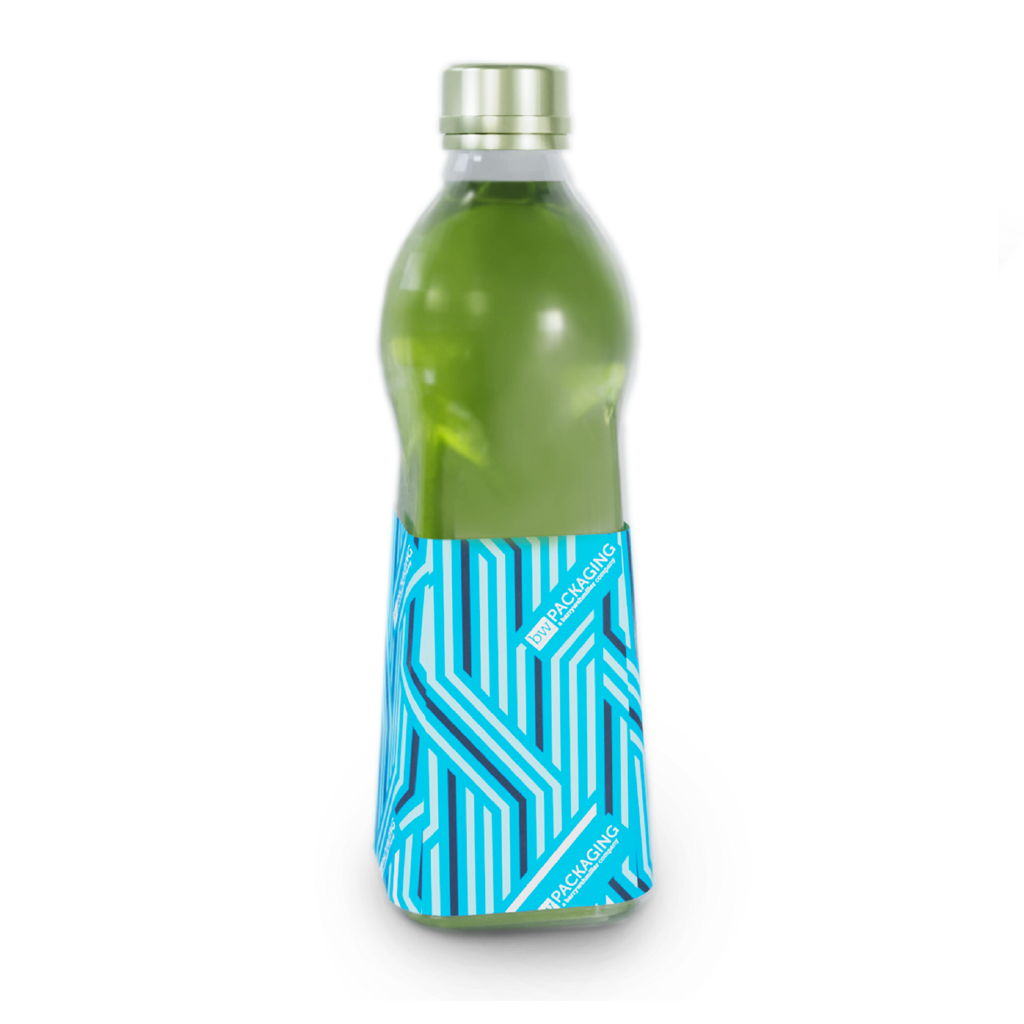

400ml Bottle
Screw caps
Ø 65mmHeight 210mm
Material Glass
Product Ghee

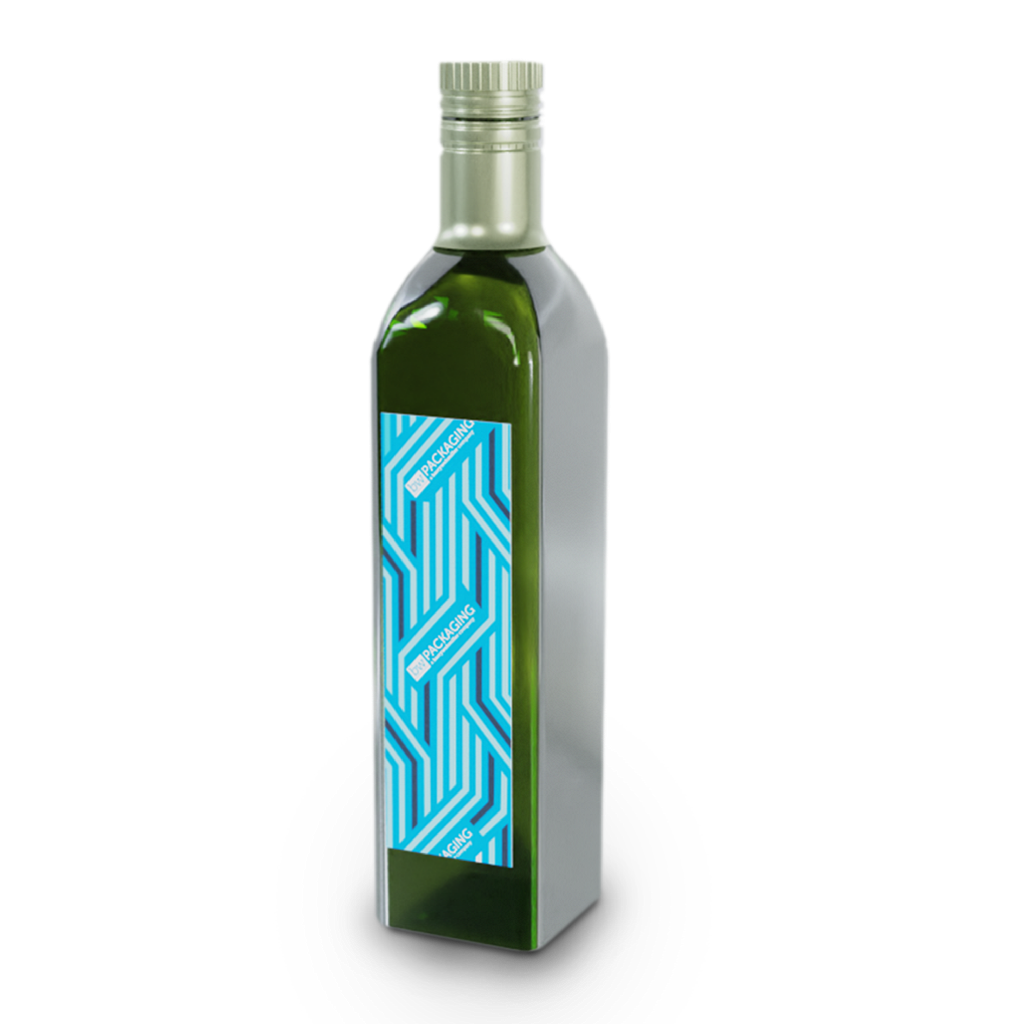

750ml Bottle
Screw caps
Platform 87 x 87mmHeight 276mm
Material Glass
Product Olive oil

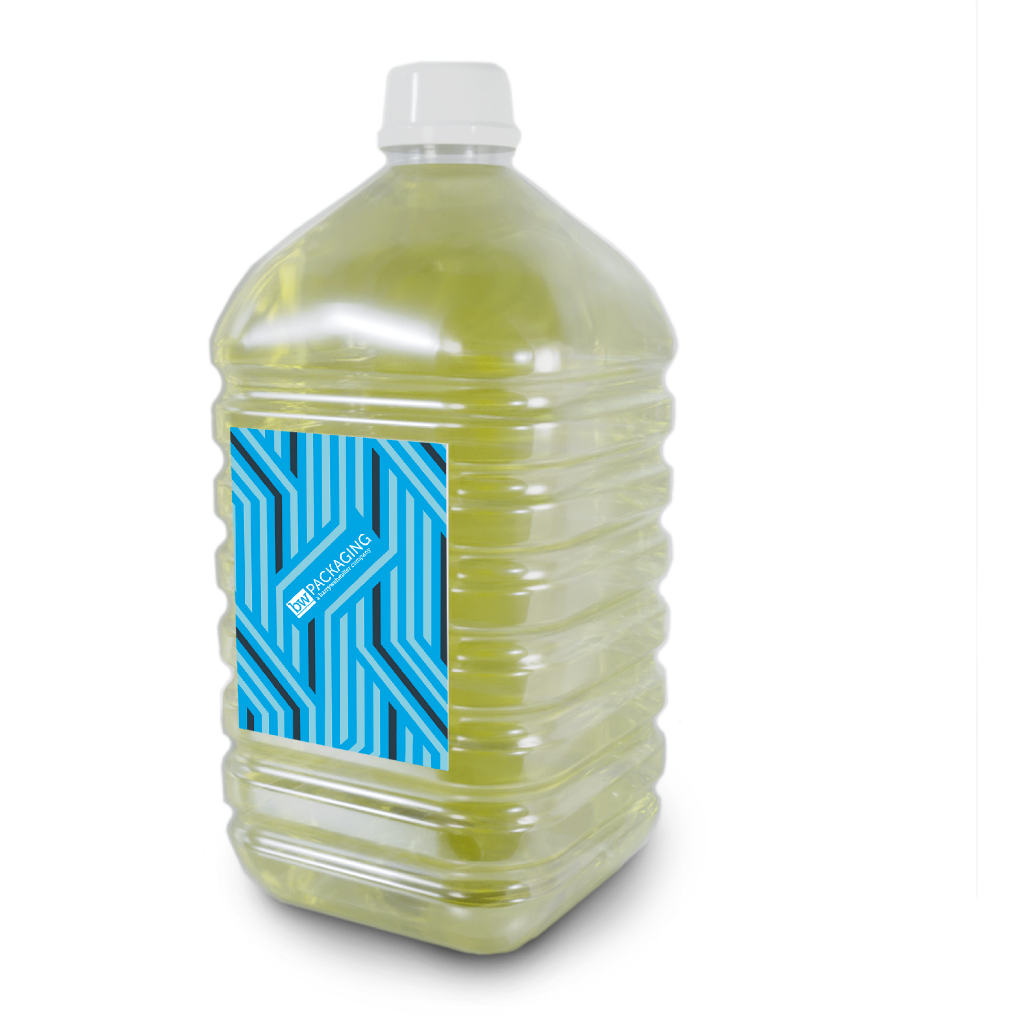

5000ml Bottle
Snap on caps
Platform 151 x 174mmHeight 343mm
Material PET
Product Sunflower oil
