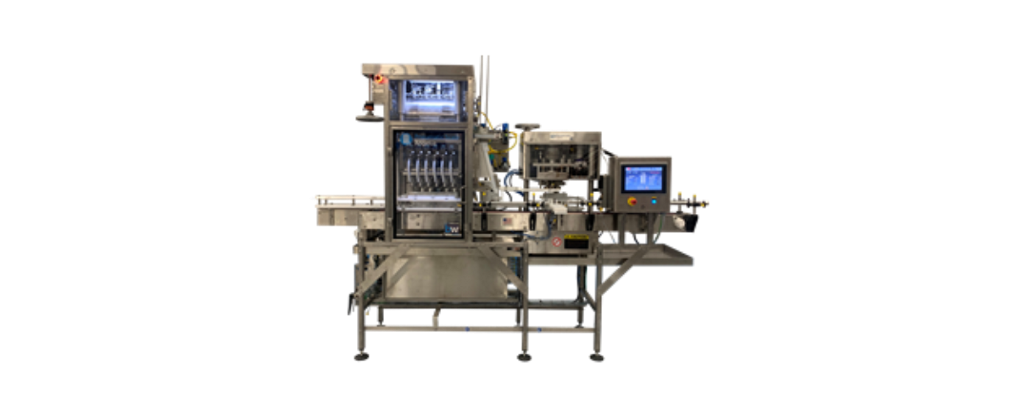

PNEUMATIC SCALE | ANGELUS Craft Beverage CB50C Counter-Pressure Integrated Canning Line
.png?sfvrsn=b386555f_1 "CB (2)")
About this machine
About this technology
The CB Series of integrated filler/seamers provide canning technology designed specifically for and scaled to the needs of craft beverage packaging. Counter-pressure or isobarometric filling can require more knowledge of filling technology and packaging, as well as a slightly higher investment than open-air filling. However, it allows for greater flexibility in product range, including hard seltzers, sparkling wines and higher carbonated beers. Counter-pressure filling handles beverages from still to high carbonation products (up to 4.1 Vols of CO2), and is the preferred method for high production environments. Counter-pressure filling also offers precise control over production variables by filling into a purged, sealed container, using easily-adjustable machine parameters (e.g. purge length, purge cycles, etc.) and is less impacted by temperature variations. CO2 loss and DO pickup are minimized.
Counter-pressure filling allows for the filling of highly-carbonated beverages (in excess of 2.7 Vols of CO2), and is the industry standard for high-speed rotary filling, in addition to still and lower carbonation products. Equivalent pressure in the can and product tank prevents breakout. The process is a gentle, gravity-only fill, with consistent head pressure, and the tank to fill valve distance does not change, regardless of container size. Higher speed and greater flexibility of product are among the benefits of an isobarometric filling line. Working with a supplier who understands counter-pressure technology is critical.
Contact us today to speak with one of our craft brew experts about the specific requirements of your project. We’re happy to assist you.
Product Details

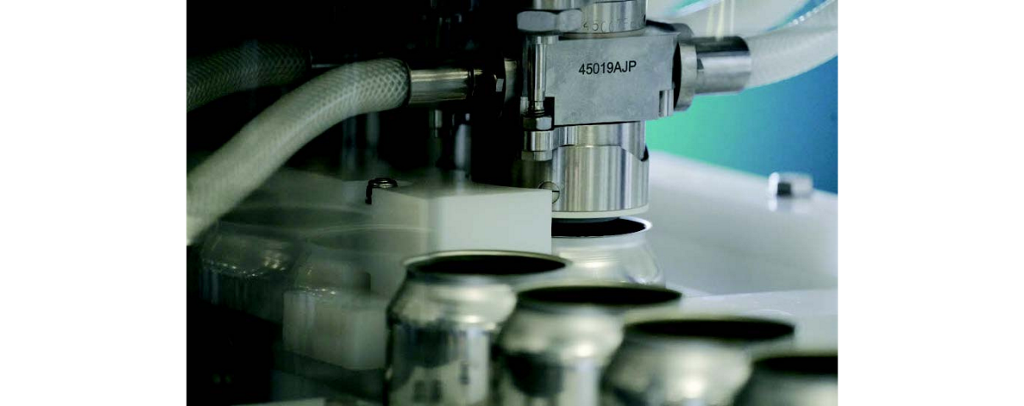

- Six individual filling heads, utilizing isobarometric counter-pressure technology and proprietary magnetic flow meter technology, capable of 1 mL precision
- Integrated inline filler with single head can seamer, rated for continuous operation at speeds up to 50 CPM
- Filler designed with quick-change adjustments for easy changeover for various can height/body diameters
- Optimized for 204.5 sleek and 211 Standard can bodies
- Suitable for 200 to 204 can ends, with no valve change required
- Simple HMI input for individual fill head volume adjustments and other fill cycle parameters
- Under Cover Gassing (UCG) at lid applicator chute
- Quick change levers for repeatable changeovers
- Can rinser assembly with air dry
- Sanitary 316 stainless steel standard for product contact, with sanitary/hygienic product supply piping and connections
- Individual Zerk fittings for manual lubrication of seaming rolls
- Leverages the same counter-pressure technology as in high-speed beverage lines, but scaled for the needs of craft beverage
- Seaming cam easily removed/replaced for possible future changes in material, can size and/or seaming specifications
- Automatic Clean in Place (CIP) capable, up to 180-degree temperature rating
- Up to 5 volume (10g/l) CO2 carbonation levels
Technical Data
- Continuous operation at speeds of up to 100 Containers Per Minute (CPM)
- Variable speed range of 30-100 CPM
- Twelve filling heads
- Industry-leading controls with HMI includes intuitive interface featuring data logging screen for quality control
- HMI display includes live temperature, pressure and volume feedback

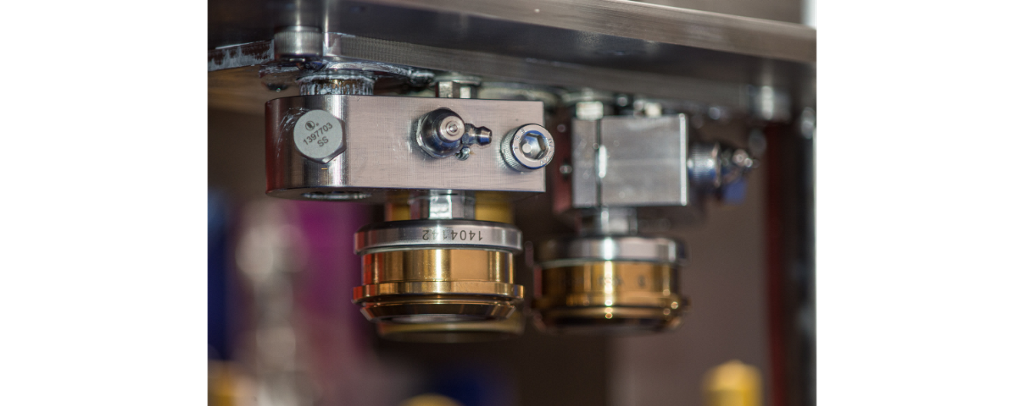

- Titanium nitride-coated Angelloy® seaming rolls with ceramic bearings
- Standard travel of can is from left to right
- Optimized for beverage can — height range 2.13” to 8.00”
- Product supply tank for tightly controlled pressure, producing consistent, quality fills
- Product supply tank and filler manifold connection on left
- Hardened tool steel seaming cam for long life
- Stainless steel product area and base assembly
- Protective flange to prevent damage from maladjustments
- Compact footprint
