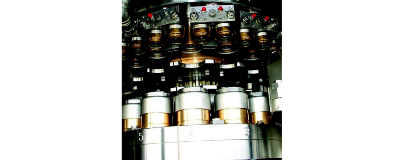

ANGELUS Legacy - 140S
Angelus seamers provide a hermetic seal by creating an airtight closure of five interlocked layers, three from the can end and two from the can body. The Legacy Series, as the name implies, carries on the tradition of reliability established when the Angelus Sanitary Can Machine Company was founded in 1910. Although an older design, we proudly continue to sell and service Legacy equipment.
The Angelus Legacy Series seamers, like the newer V-Series, incorporates a base-mounted stainless steel machine enclosure. The base-mounting provides precision and repeatability, while the stainless steel is durable and easy to clean. Interlocking doors shut off the seamer when opened, keeping operators safe The Model 140S has 14 seaming stations and handles 125-1750 Containers Per Minute (CPM).
Contact us today to speak with one of our Angelus experts about the specific requirements of your project. We’re happy to assist you.
- Runs at speeds of 125-1750 Containers Per Minute (CPM)
- Fourteen seaming stations
- Stainless steel base top plate and castings and components below the feed line
- Titanium Nitride-coated Angelloy® seaming chucks and seaming rolls, rolls have ceramic bearings
- Dual single roll cover separator
- Driven lower lifter oil pump system
- Automatic oil lubrication recirculating and filtration system
- Second operation off-seam setting
- No can/no gas/no run sensor
- Automatic stop control
- Comes with a tool kit and operator manual
- Seams cans between 200 – 300 (50.8 - 76.2 mm) in diameter
- Seams cans between 206 – 800 (60.3-203.2 mm) high
- Transfer chain pitch is 3.56” or 3.66” (90.5 mm or 93.1 mm)
- Filler Drive operates at 0.5 Rev./Can for both English and Metric systems
- Electrical controls run on 24 VDC for both English and Metric systems
- Has a 50 HP motor (38 kW)
- Dry air @ base & upper turret housing at 3 psi (0.2 bar)
- CO²/Nitrogen Gas supply pressure at 100 psi @ 70F (6.9 bar @ 21C)
- CIP Cleaning—Hot Water at 160 F @ 70 psi (71C @ 4.8 bar)
- CIP Cleaning—Steam at 330 F @ 80 psi (165C @ 5.9 bar)
- Net weight is approximately 20,500 lbs (9,299 kg)
- Gross weight is approximately 23,000 lbs (10,433 kg)
- Steam vacuum
- Variable flow gassing system
- Filler connecting parts
- Filler belt drive
- Quick set seaming can
- Double seam tightness monitoring
- Nickel-plated machine
- Hot water automatic seamer washdown
- Mechanical driven machine height
- Can feed extension washdown
- Recipe motorized turret height elevating mechanism
- Optional can heights and diameters are available
