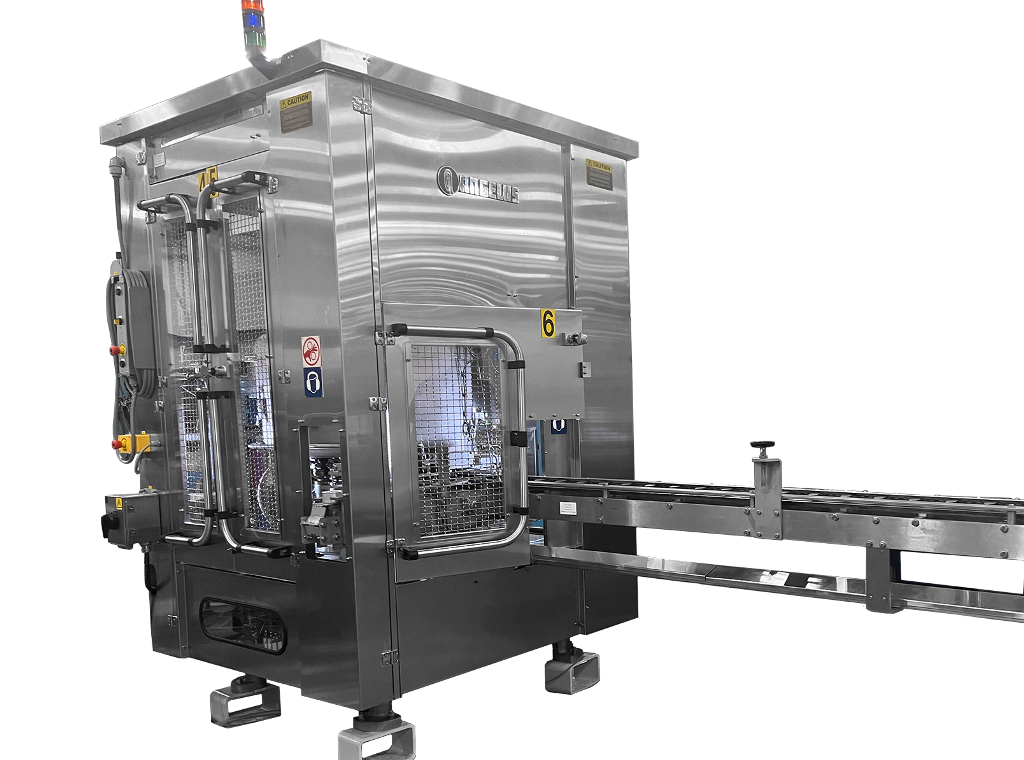

ANGELUS Legacy - 101L
About this machine
About this technology
Angelus seamers provide a hermetic seal by creating an airtight closure of five interlocked layers, three from the can end and two from the can body. The Legacy Series, as the name implies, carries on the tradition of reliability established when the Angelus Sanitary Can Machine Company was founded in 1910. Although an older design, we proudly continue to sell and service Legacy equipment.

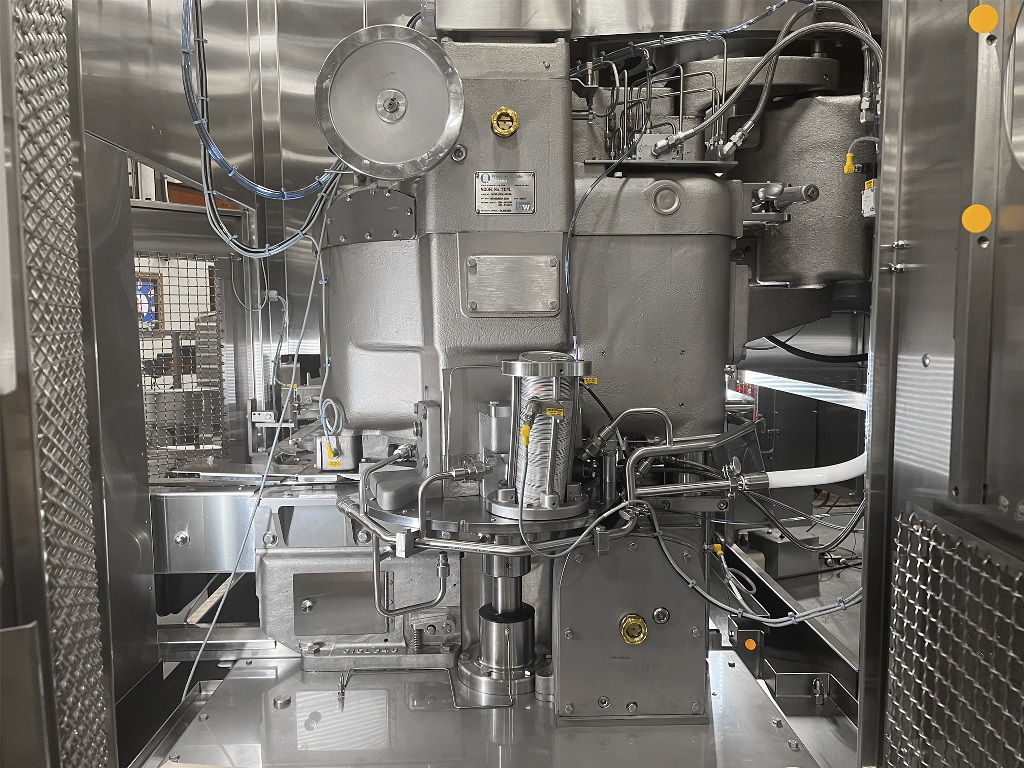

The Angelus Legacy Series seamers, like the newer V-Series, incorporates a base-mounted stainless steel machine enclosure.The base-mounting provides precision and repeatability, while the stainless steel is durable and easy to clean.The Model 101L has 10 seaming stations and handles 400-1200 Containers Per Minute (CPM), making it valuable to food manufacturers for its ability to run a larger can at high speed. This is an oil-recirculating machine, rather than oil-loss.
Contact us today to speak with one of our Angelus experts about the specific requirements of your project. We are happy to assist you.
Product Details
- Runs at speeds of 400-1200 Containers Per Minute (CPM)

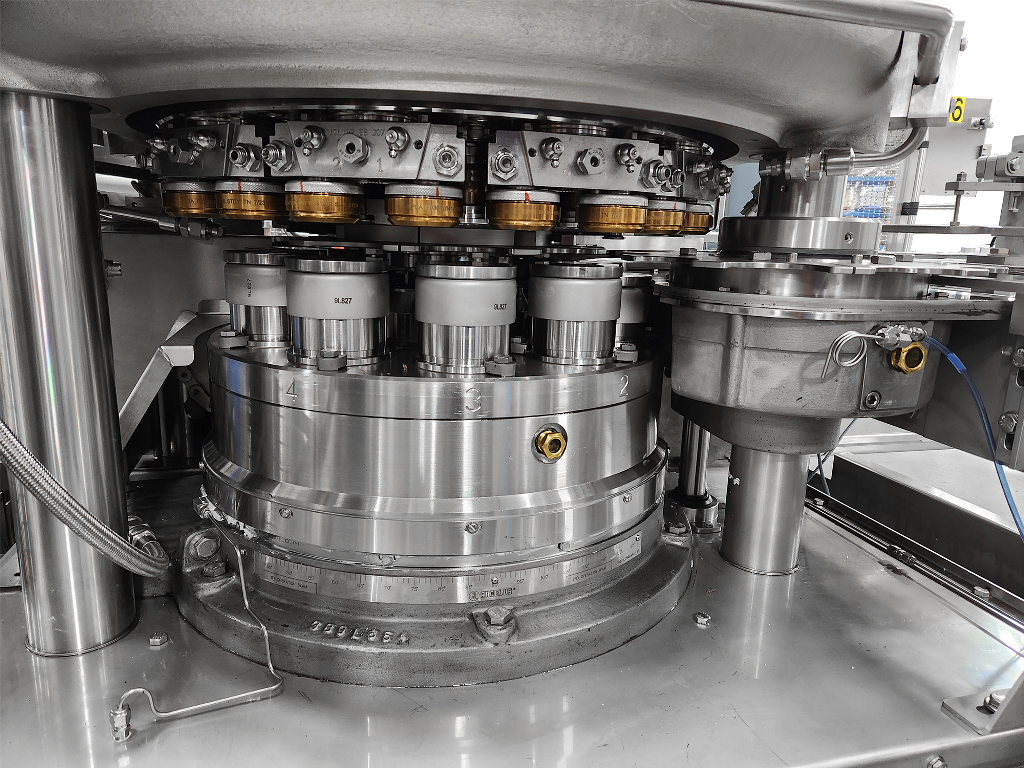

- 10 seaming stations
- Single roll cover separator
- Titanium Nitride-coated Angelloy® seaming rolls with ceramic bearings
- Titanium Nitride-coated Angelloy® seaming chucks
- Driven lower lifter oil pump system
- Automatic oil lubrication recirculating and filtration system
- Second operation off-seam setting
- PLC and HMI with touch screen control
- No can/no cover feed
- External warning safety horn and light
- Tool kit and operators manual
Technical Data
- Seams cans between 200 – 401 (50.8- 103.2 mm) in diameter
- Seams cans between 113-800 (46.0-203.2 mm) high
- Transfer chain pitch is 4.667” (118.5 mm)
- Stainless steel base top plate, castings and components below-the-feed-line
- Filler Drive is 0.5 Rev/Can (English) and Direction Reversible for Metric
- Electrical controls run on 24 VDC for both English and Metric systems
- Has a 25 - 40 HP motor (18 – 30 kW)
- Dry Air @ Base & Upper Turret Housing is 3 psi (0.2 bar)
- CO² / Nitrogen Gas Supply Pressure is 125 psi @ 70F (8.6 bar @ 21C)
- CIP Cleaning — Hot water temperature is 160F @ 70 psi (71C @ 4.8 bar)
- CIP Cleaning —Steam temperature is 330F @ 80 psi (165C @ 5.5 bar)
- Net weight is approximately 14,400 lbs 6532 kg)
- Gross weight is approximately 16,500 lbs 7484 kg)
Packaging Styles
Markets
Videos
Parts & Service
OEM parts and experienced Customer Service are key to maintaining the integrity and service of your equipment. We offer spare and replacement parts for all of our product lines, as well as a dedicated team of professionals who provide global support, delivered locally. If you need support, contact our team and a dedicated support professional will respond to your request.
-
