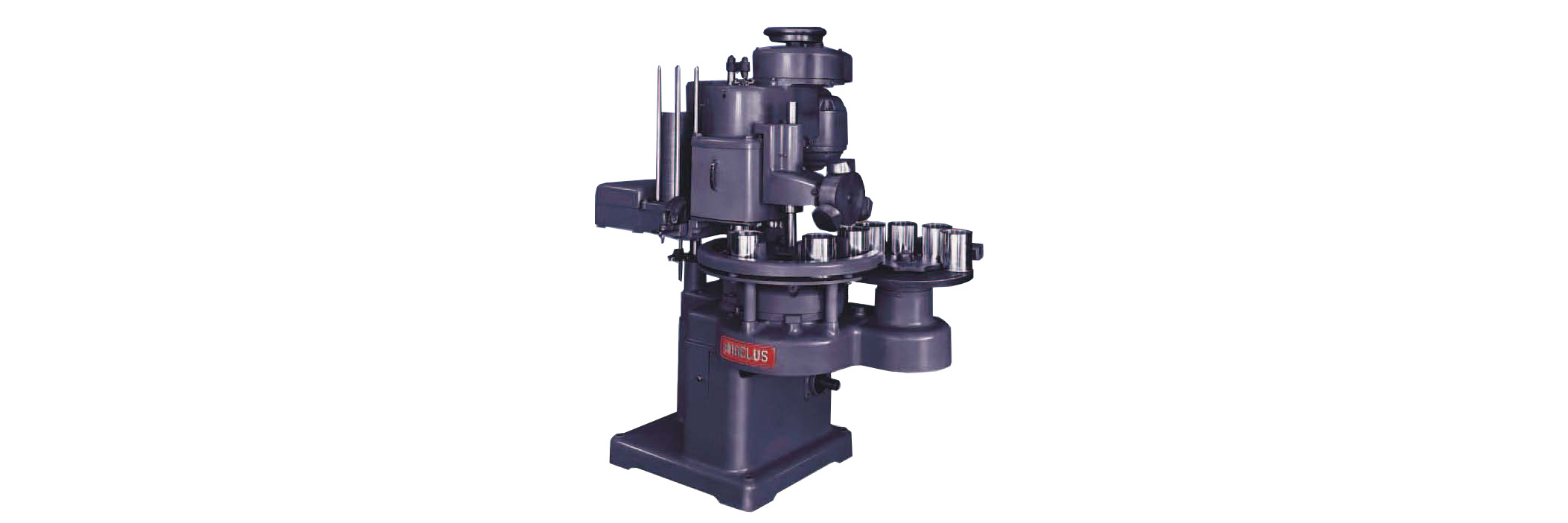

ANGELUS Legacy Series: Model 10P
About this machine
About this technology
Angelus seamers provide a hermetic seal by creating an airtight closure of five interlocked layers, three from the can end and two from the can body. The Legacy Series, as the name implies, carries on the tradition of reliability established when the Angelus Sanitary Can Machine Company was founded in 1910. Although an older design, we proudly continue to sell and service Legacy equipment.
The Angelus Legacy Series seamers, like the newer V-Series, are built of stainless steel for durability and ease of cleaning. This unit has a free-standing machine enclosure. It has door interlocks which stop the machine when opened, for added operator safety. The Model 10P has 1 seaming station and handles 30-80 Containers Per Minute (CPM).
Contact us today to speak with one of our Angelus experts about the specific requirements of your project. We’re happy to assist you.
Product Details
- Runs at speeds of 30-80 Containers Per Minute (CPM)
- 1 seaming station
- Built for easy operation and maintenance
- Variable speed motor drive
- Industry-leading PLC and touchscreen controls
- One set of can and end change parts
- No can/no cover feed
- Head spin machine
- Grease lubrication
- Comes with a tool kit and operators manual
Technical Data
- Seams cans between 202 - 404 (54- 108 mm) in diameter
- Seams cans between 108 - 708 (38.1-190.5 mm) high
- Seams cans between 111 - 700 (42.9- 177.8 mm) high- SV
- Transfer chain pitch is random for both English and Metric systems
- Electrical controls run on 24 DC for both English and Metric systems
- Has a 3 - 5 HP motor (2 - 4 kW)
- Steam supply temperature is 330F @ 60 psi (165C @ 4 bars)
- Net weight is approximately 2,000 lbs (907 kg)
- Gross weight (Domestic) is approximately 2,700 lbs (1,225 kg)
- Gross weight (Export) is approximately 3,000 lbs (1,360 kg)
Packaging Styles
Markets
Videos
Parts & Service
OEM parts and experienced Customer Service are key to maintaining the integrity and service of your equipment. We offer spare and replacement parts for all of our product lines, as well as a dedicated team of professionals who provide global support, delivered locally. If you need support, contact our team and a dedicated support professional will respond to your request.
-
