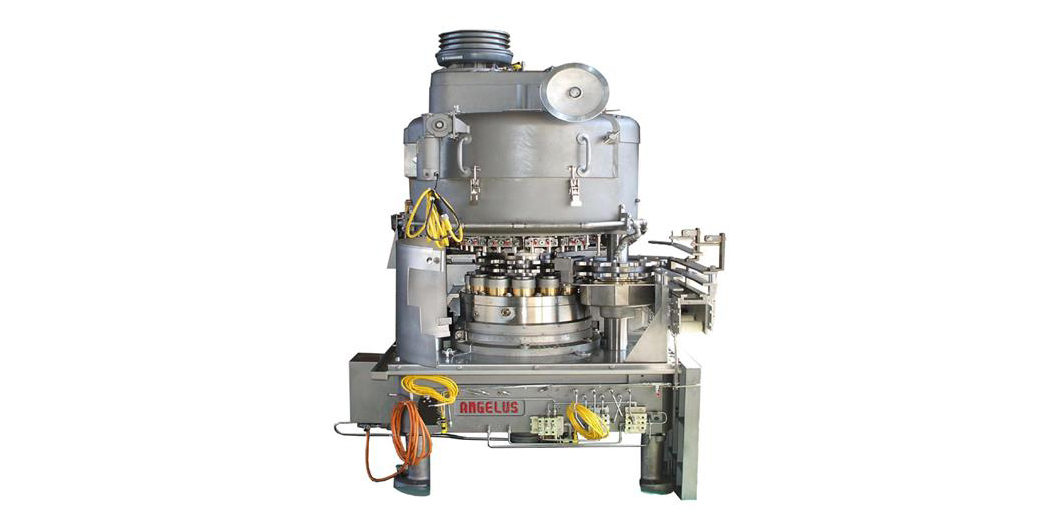

ANGELUS Legacy Series: Model 121L
About this machine
About this technology
Angelus seamers provide a hermetic seal by creating an airtight closure of five interlocked layers, three from the can end and two from the can body. The Legacy Series, as the name implies, carries on the tradition of reliability established when the Angelus Sanitary Can Machine Company was founded in 1910. Although an older design, we proudly continue to sell and service Legacy equipment.
The Angelus Legacy Series seamers, like the newer V-Series, incorporates a base-mounted stainless steel machine enclosure. The base-mounting provides precision and repeatability, while the stainless steel is durable and easy to clean. The Model 121L has 12 seaming stations and handles 400-1500 Containers Per Minute (CPM).
Contact us today to speak with one of our Angelus experts about the specific requirements of your project. We’re happy to assist you.
Product Details
- Runs at speeds of 400-1500 Containers Per Minute (CPM)
- 12 seaming stations
- Stainless steel base top plate, castings and components below-the-feed-line
- Single roll cover separator
- Driven lower lifter oil pump system
- Automatic oil lubrication recirculating and filtration system
- Second operation off-seam setting
- No can/no cover feed
- External warning safety horn and light
- Comes with a tool kit and operators manual
Technical Data
- Seams cans between 200 – 303 (50.8- 81.0 mm) in diameter
- Seams cans between 110 -800 (41.3-203.2 mm) high—Atmos & CM
- Seams cans between 113 - 800 (46- 203.2 mm) high—UCG & SV
- Transfer chain pitch is 3.75 or 4” (95.3 or 101.6 mm )
- Filler Drive is 0.5 Rev/Can (English) and Direction Reversible for Metric
- Electrical controls run on 24 VDC for both English and Metric systems
- Has a 25 - 40 HP motor (18 – 30 kW)
- Dry Air @ Base & Upper Turret Housing is 3 psi (0.2 bar)
- CO² / Nitrogen Gas Supply Pressure is 125 psi @ 70F (8.6 bar @ 21C)
- CIP Cleaning — Hot water temperature is 160F @ 70 psi (71C @ 4.8 bar)
- CIP Cleaning —Steam temperature is 330F @ 80 psi (165C @ 5.5 bar)
- Net weight is approximately 14,400 lbs 6532 kg)
- Gross weight is approximately 16,500 lbs 7484 kg)
