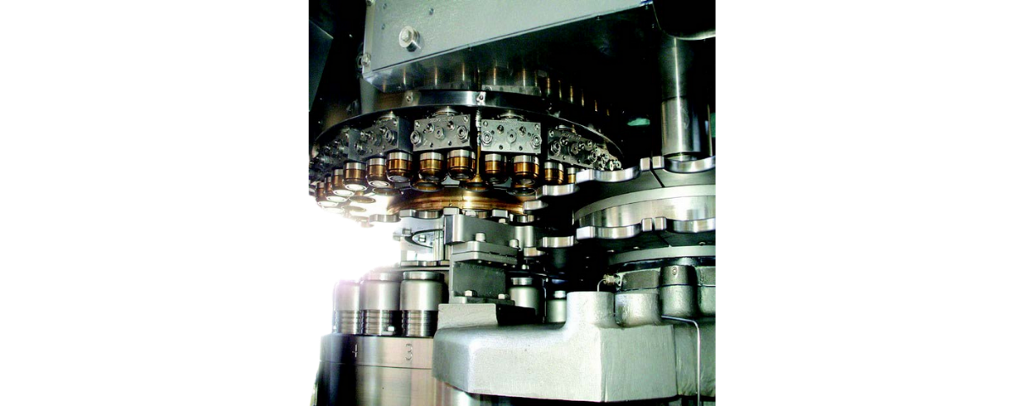

ANGELUS Legacy Series: Model 181S
About this machine
About this technology
Angelus seamers provide a hermetic seal by creating an airtight closure of five interlocked layers, three from the can end and two from the can body. The Legacy Series, as the name implies, carries on the tradition of reliability established when the Angelus Sanitary Can Machine Company was founded in 1910. Although an older design, we proudly continue to sell and service Legacy equipment.
The Angelus Legacy Series seamers, like the newer V-Series, incorporates a base-mounted stainless steel machine enclosure. The base-mounting provides precision and repeatability, while the stainless steel is durable and easy to clean. Interlocking doors shut off the seamer when opened, keeping operators safe The Model 181S has 18 seaming stations and handles up to 2500 Containers Per Minute (CPM).
Contact us today to speak with one of our Angelus experts about the specific requirements of your project. We’re happy to assist you.
Product Details
- Runs at speeds of up to 2500 Containers Per Minute (CPM)
- Eighteen seaming stations
- Stainless steel base top plate and castings and components below-the-feed-line
- Under cover gassing attachment
- Two-speed CO² gassing controls
- One set of can and end change parts
- Titanium Nitride-coated Angelloy® seaming chucks and seaming rolls, rolls have ceramic bearings
- Dual single roll cover separator
- Driven lower lifter oil pump system
- Automatic oil lubrication recirculating and filtration system
- Second operation off-seam setting
- Comes with a tool kit and operators manual
Technical Data
- Seams cans between 200 – 300 (50.8 – 76.2 mm) in diameter
- Seams cans between 206 – 700 (60.3 – 177.8 mm) high
- Transfer chain pitch is 3.666” (93.1 mm)
- Filler Drive operates at 0.5 Rev./Can for both English and Metric systems
- Electrical controls run on 24 VDC for both English and Metric systems
- Has a 60 HP motor (45 kW)
- Dry air @ base & upper turret housing at 3 psi (0.2 bar)
- CO²/Nitrogen Gas supply pressure at 100 psi @ 70F (6.9 bar @ 21C)
- CIP Cleaning—Hot Water at 160 F @ 70 psi (71C @ 4.8 bar)
- CIP Cleaning—Steam at 330 F @ 80 psi (165C @ 5.9 bar)
- Net weight is approximately 26,700 lbs (12,111 kg)
- Gross weight domestic is approximately 32,000 lbs (14,515 kg)
- Gross weight export is approximately 40,000 lbs (18,144 kg)
