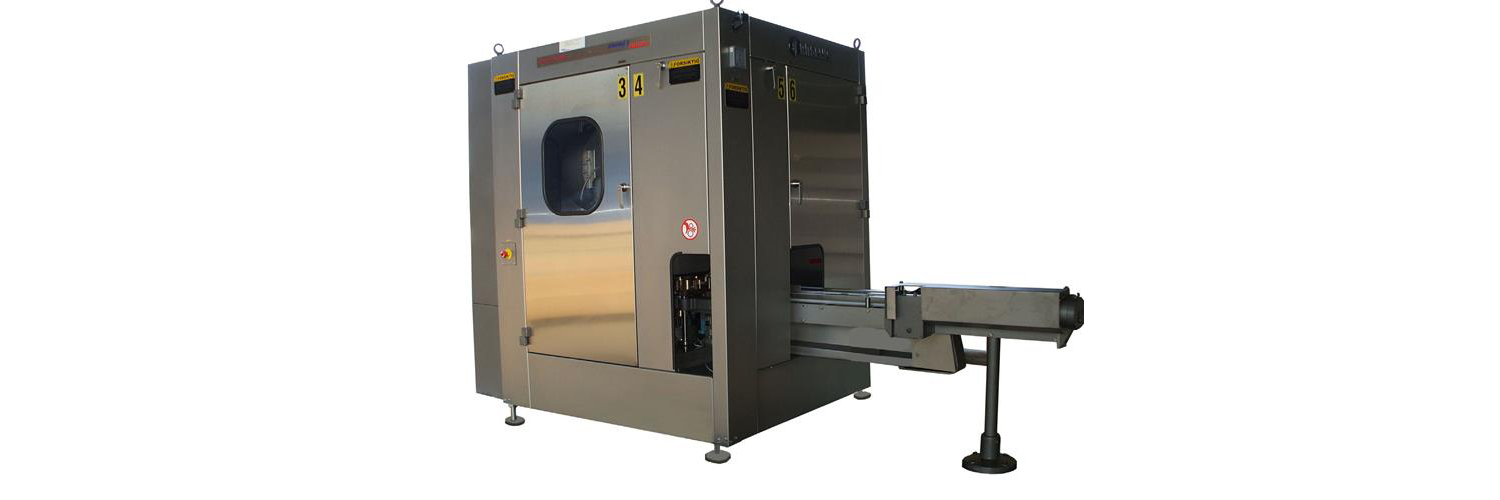

ANGELUS Legacy Series: Model 60L
About this machine
About this technology
Angelus seamers provide a hermetic seal by creating an airtight closure of five interlocked layers, three from the can end and two from the can body. The Legacy Series, as the name implies, carries on the tradition of reliability established when the Angelus Sanitary Can Machine Company was founded in 1910. Although an older design, we proudly continue to sell and service Legacy equipment.

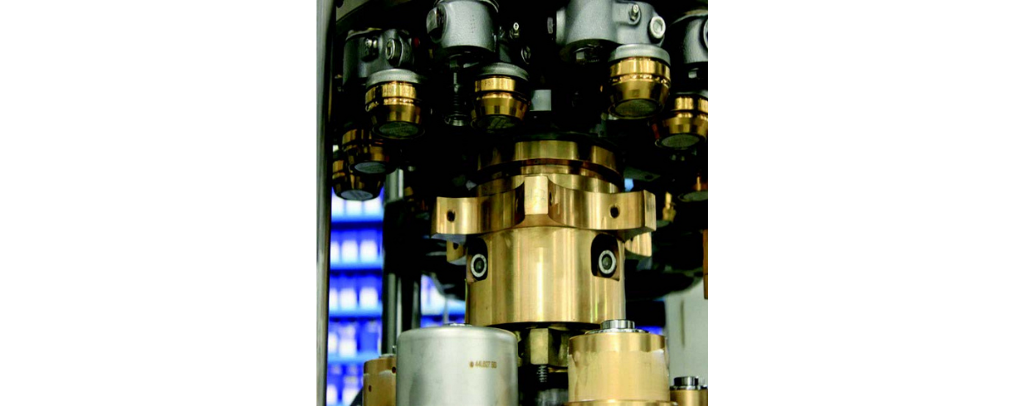

The Angelus Legacy Series seamers, like the newer V-Series, incorporates a base-mounted stainless steel machine enclosure. The base-mounting provides precision and repeatability, while the stainless steel is durable and easy to clean. The Model 60L has six seaming stations and handles 175-500 Containers Per Minute (CPM).
Contact us today to speak with one of our Angelus experts about the specific requirements of your project. We’re happy to assist you.
Product Details
- Runs at speeds of 175-500 Containers Per Minute (CPM)
- Six seaming stations
- One set of can and end change parts
- Single roll cover separator
- Gear-driven lower lifters with seven point lubrication system
- Second operation off-seam setting
- Automatic stop control system
- Grease lubrication
- Leading industry PLC and touch screen control
- Pneumatic no can/no cover feed
- Variable speed motor drive
- Comes with a tool kit and operators manual
Technical Data
- Seams cans between 200 – 404 (50.8- 108.0 mm) in diameter
- Seams cans between 108 - 712 (38.1-196.9 mm) high—Atmos & UCG
- Seams cans between 111 - 712 (42.8- 196.9 mm) high—UCG & SV
- Transfer chain pitch is 6” (152.4 mm)
- Filler Drive is 1 Rev/Can (English) and Direction Reversible for Metric
- Electrical controls run on 24 VDC for both English and Metric systems
- Has a 7.5 - 10 HP motor (6 – 8 kW)
- CO² / Nitrogen Gas Supply Pressure is 100 psi @ 70F (6.9 bar @ 21C)
- Net weight is approximately 6150 lbs (2790 kg)
- Gross weight is approximately 7250 lbs (3289 kg)
Packaging Styles
Markets
Videos
Parts & Service
OEM parts and experienced Customer Service are key to maintaining the integrity and service of your equipment. We offer spare and replacement parts for all of our product lines, as well as a dedicated team of professionals who provide global support, delivered locally. If you need support, contact our team and a dedicated support professional will respond to your request.
-
