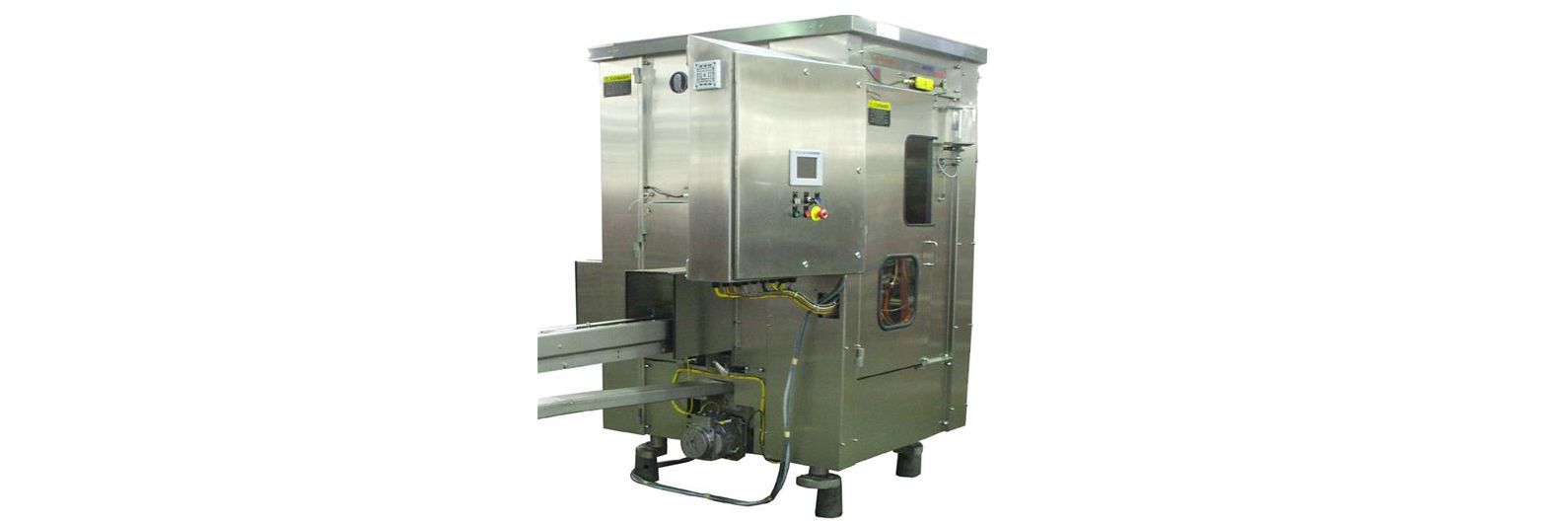

ANGELUS Legacy Series: Model 63H
About this machine
About this technology
Angelus seamers provide a hermetic seal by creating an airtight closure of five interlocked layers, three from the can end and two from the can body. The Legacy Series, as the name implies, carries on the tradition of reliability established when the Angelus Sanitary Can Machine Company was founded in 1910. Although an older design, we proudly continue to sell and service Legacy equipment.
The Angelus Legacy Series seamers, like the newer V-Series, incorporates a base-mounted stainless steel machine enclosure. The base-mounting provides precision and repeatability, while the stainless steel is durable and easy to clean. The Model 63H has six seaming stations and handles 225-700 Containers Per Minute (CPM).
Contact us today to speak with one of our Angelus experts about the specific requirements of your project. We’re happy to assist you.
Product Details
- Runs at speeds of 225-700 Containers Per Minute (CPM)
- Made with 316 stainless steel castings and components below the feed line
- Six spindle seaming stations
- One set of can and end change parts
- Single roll cover separator
- Driven lower lifter oil pump system
- Automatic oil lubrication recirculating and filtration system
- Automatic stop control system
- Leading industry PLC and touch screen control
- Pneumatic no can/no cover feed
- Comes with a tool kit and operators manual
Technical Data
- Seams cans between 200 – 404 (50.8- 108.0 mm) in diameter
- Seams cans between 110 - 800 (41.3-203.2 mm) high—Atmos & CM
- Seams cans between 111 - 800 (41.3-203.2 mm) high—UCG & SV
- Transfer chain pitch is 5.50” (139.7 mm )
- Filler Drive is 1 Rev/Can (English) and Direction Reversible for Metric
- Electrical controls run on 24 VDC for both English and Metric systems
- Has a 15-20 HP motor (11-15kW)
- Dry air at base and upper turret housing is 3 psi (0.2 bar)
- CO² / Nitrogen Gas Supply Pressure is 100 psi @ 70F (6.9 bar @ 21C)
- CIP Cleaning—Hot Water Supply is 160F @ 60psi (71C @ 4.8 bar)
- CIP Cleaning—Steam Supply is 330F @ 85psi (165C @ 5.9 bar)
- Net weight is approximately 9200 lbs (4173 kg)
- Gross weight is approximately 10,300 lbs (4672 kg)
Packaging Styles
Markets
Videos
Parts & Service
OEM parts and experienced Customer Service are key to maintaining the integrity and service of your equipment. We offer spare and replacement parts for all of our product lines, as well as a dedicated team of professionals who provide global support, delivered locally. If you need support, contact our team and a dedicated support professional will respond to your request.
-
