ANGELUS V-Series: Model 12V

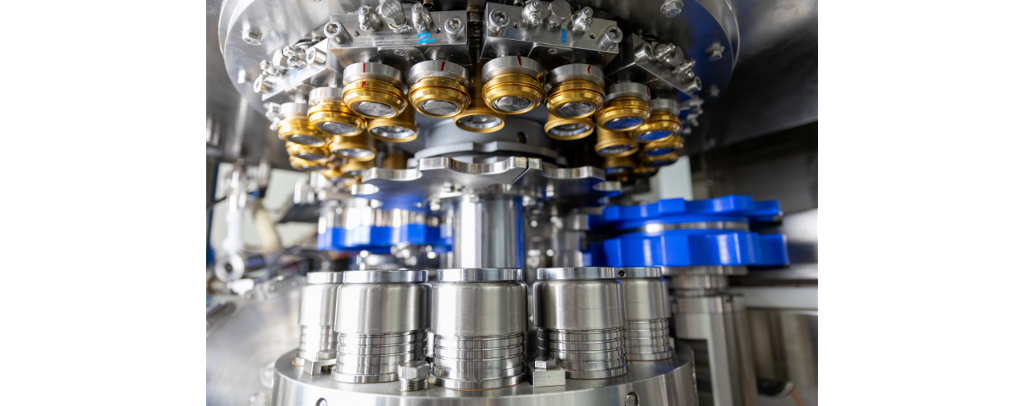

.png?sfvrsn=f0555f_1 "12V machine photo (1)")
.png?sfvrsn=3f0555f_1 "12V machine photo (2)")

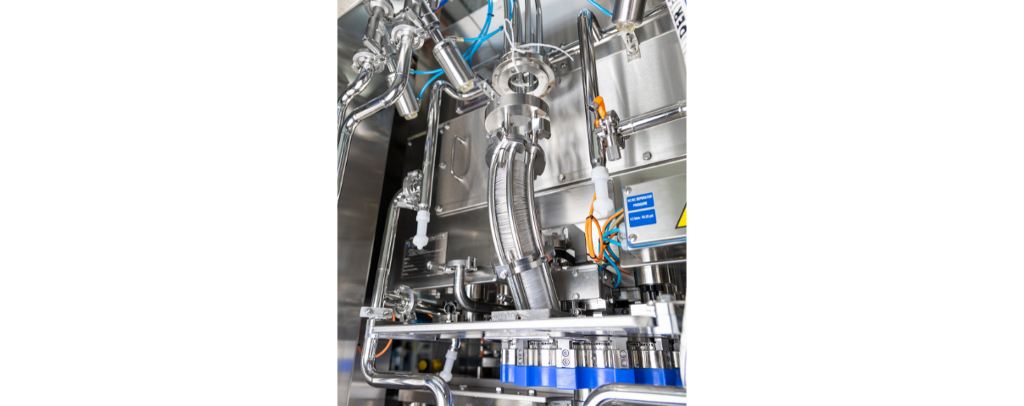

.png?sfvrsn=6f0555f_1 "12V machine photo (4)")
About this machine
About this technology
Angelus seamers are designed specifically for food and beverage processors. They provide a hermetic seal by creating an airtight closure of five interlocked layers, three from the can end and two from the can body.

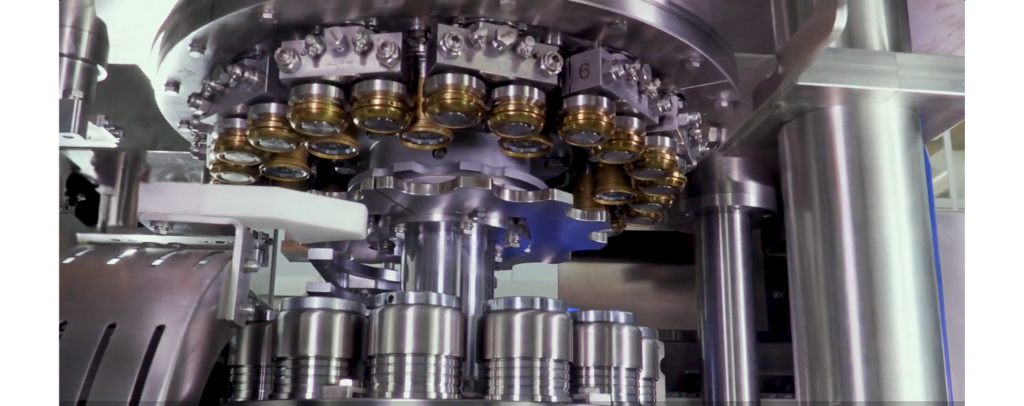

The Angelus V-Series seamer contains 25% fewer components than traditional Angelus seamers and employs an 80% parts commonality across the family. They support the technologies, including atmospheric, under cover gassing, steam vacuum and liquid Nitrogen dosing that are used in the most challenging applications. The Model 12V has 12 seaming stations, and can seam 400 -1800 containers per minute (CPM)
Contact us today to speak with one of our Angelus experts about the specific requirements of your project. We are happy to assist you.
Product Details
- Runs at speeds up to 400 -1800 Containers Per Minute (CPM) Provided in either mechanical filler connection or servo synchro
- New and improved driven lower lifters
- Motorized turret height adjustment with digital readout
- TN-coated Angelloy® seaming rolls with ceramic bearings
- Easy-adjust chuck plate springs keep downtime to a minimum
- Industry-standard PLC and HMI controls pilot devises and E-Stop
- NEMA 12 electrical enclosure (standalone), with lockable disconnect ensures operator safety
- NEMA 4X junction box is machine mounted and integrated into guarding

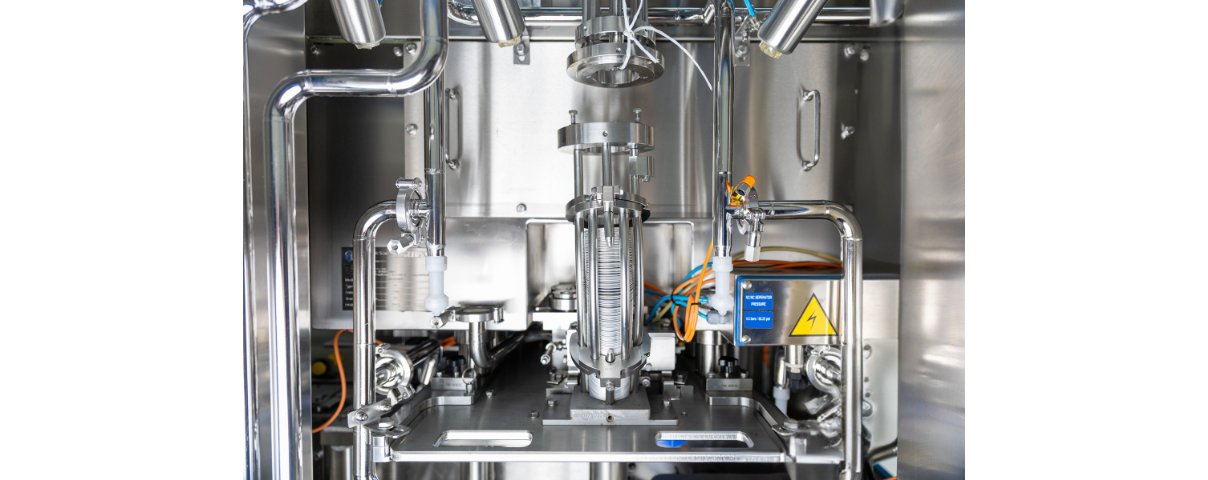

- Under cover gassing control with variable valve for use in seaming beverages
- Ancillary systems are integrated into the guarding enclosure
- Vibration isolation pads on seamer legs
- Comes with basic tool kit
Technical Data
- Cone drive main gearbox
- Mechanical filler connection with cardan shaft
- Seams cans between 2” – 3" (50.8-76.2 mm) in diameter
- Seams cans between 1-13/16”-8" (46-203.2 mm) high
- Transfer chain pitch is 3.562” or 3.666” 90.5 mm or 93.1 mm)
- Recirculated oil provides the lubrication
- Has a 230/380/400/460 volt, 3 phase, 50/60 hertz motor, with 24 VDC control voltage
Angelus V-Series Models Comparative Table
Model | Speed Range | Seaming Stations | Stainless Steel | Lubrication | Min/Max Can Diameter (in) | Min/Max Can Diameter (mm) | Min/Max Can Height (in) | Min/Max Can Height (mm) | Transfer Chain Pitch (in) | Transfer Chain Pitch (mm) | Application |
18V | 500-2500 | 18 | Standard | Oil Recirculation | 200 to 300 | 50.8 to 76.2 | 113 to 800 | 46.0 to 203.2 | 3.562 or 3.666 | 90.5 or 93.1 | Beverage |
12V | 400 - 1800 | 12 | Standard | Oil Recirculation | 200 to 300 | 50.8 to 76.2 | 113 to 800 | 46.0 to 203.2 | 3.562 or 3.666 | 90.5 or 93.1 | Beverage |
9V | 300 - 1200 | 9 | Standard | Oil Recirculation | 200 to 401 | 50.8 to 103.2 | 113 to 800 | 46.0 to 203.2 | 4.75 | 120.7 | Food and Beverage |
8V | 250 - 1000 | 8 | Standard | Oil Recirculation | 200 to 300 | 50.8 to 76.2 | 113 to 800 | 46.0 to 203.2 | 3.876 | 98.45 | Food and Beverage |
6V | 175 - 700 | 6 | Standard | Oil Recirculation | 200 to 401 | 50.8 to 103.2 | 113 to 800 | 46.0 to 203.2 | 5.168 | 131.27 | Food and Beverage |
4V | 100 - 450 | 4 | Standard | Oil Recirculation | 200 to 401 | 50.8 to 103.2 | 113 to 800 | 46.0 to 203.2 | 6.46 | 164.08 | Food and Beverage |
3V | 75 - 350 | 3 | Standard | Oil Recirculation | 4-1/16 to 6-3/16 | 103.2 to 157.2 | 113 to 910 | 41.3 to 244.5 | 10.336 | 262.53 | Food and Beverage |
1V | 10 to 15 | 1 | Standard | Grease | 201 to 300 | 50.8 to 157.2 | 113 to 910 | 41.3 to 244.5 | Random Timing | N/A | Beverage |
1V | 10 to 30 or 30 to 50 | 1 | Standard | Grease | 201 to 603 | 50.8 to 157.2 | 113 to 910 | 41.3 to 244.5 | Random Timing | N/A | Food |
